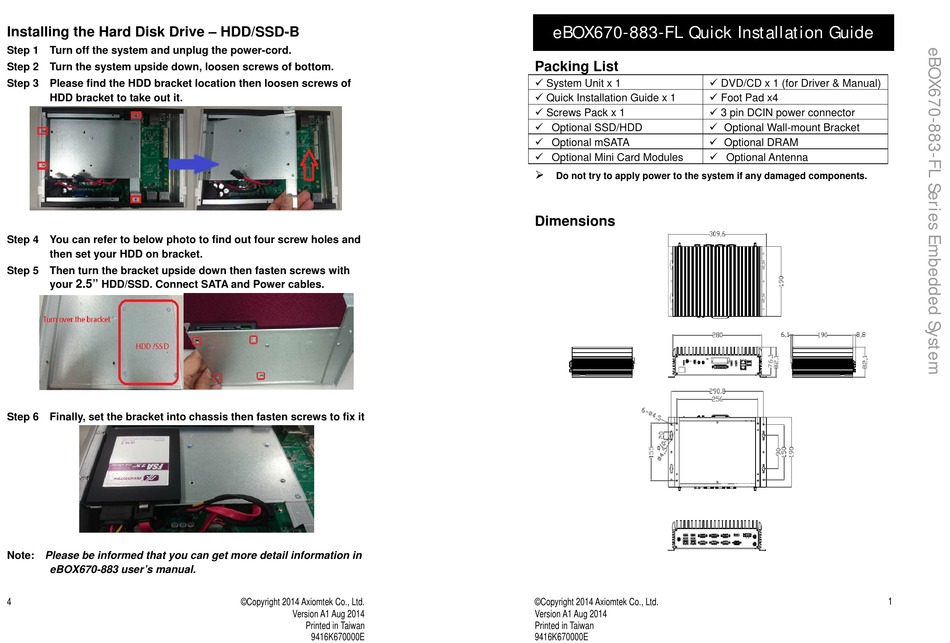

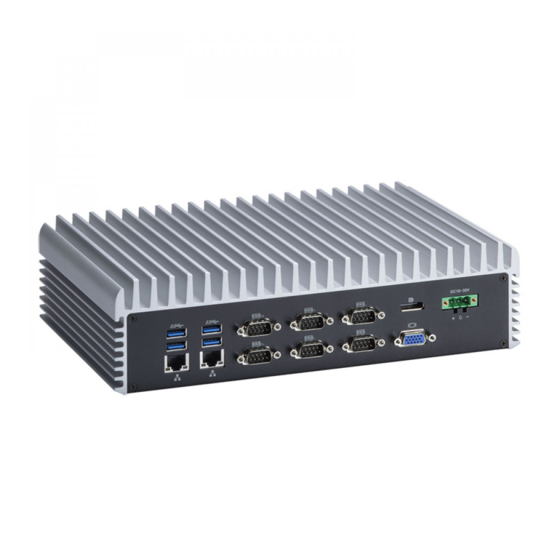

AXIOMTEK eBOX670-883-FL Series Quick Installation Manual

Installing the Hard Disk Drive – HDD/SSD-B
Step 1 Turn off the system and unplug the power-cord.
Step 2 Turn the system upside down, loosen screws of bottom.
Step 3 Please find the HDD bracket location then loosen screws of
HDD bracket to take out it.
Step 4 You can refer to below photo to find out four screw holes and
then set your HDD on bracket.
Step 5 Then turn the bracket upside down then fasten screws with
2.5"
your HDD/SSD. Connect SATA and Power cables.
Step 6 Finally, set the bracket into chassis then fasten screws to fix it
Note: Please be informed that you can get more detail information in
eBOX670-883 user's manual.
4 ©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Aug 2014
Printed in Taiwan
9416K670000E
eBOX670-883-FL Quick Installation Guide
Packing List
 System Unit x 1  DVD/CD x 1 (for Driver & Manual)
 Quick Installation Guide x 1  Foot Pad x4
 Screws Pack x 1  3 pin DCIN power connector
 Optional SSD/HDD  Optional Wall-mount Bracket
 Optional mSATA  Optional DRAM
 Optional Mini Card Modules  Optional Antenna

Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Aug 2014
Printed in Taiwan
9416K670000E
1
