  • Page 1 Series Embedded System User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The eBOX622-830-FL does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock : not classified Degree of protection against the ingress of water : IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation : Continuous...

  • Page 5: General Cleaning Tips

    General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. When you need to clean the device, please rub it with a piece of dry cloth. Be cautious of the tiny removable components when you use a vacuum cleaner to absorb the dirt on the floor.

  • Page 6: Scrap Computer Recycling

    If the computer equipment’s needs the maintenance or are beyond repair, we strongly recommended that you should inform your Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 7: Table Of Contents

    Table of Contents Disclaimers ......................ii Safety Precautions ....................iii Classification ......................iv General Cleaning Tips .................... v Scrap Computer Recycling ..................vi CHAPTER 1 INTRODUCTION ................ 1 General Description ................2 System Specifications ................ 3 1.2.1 CPU ........................3 1.2.2 I/O System ......................
  • Page 8 3.3.14 Express Mini Card Slot ................... 45 3.3.15 SIM Card Slot ....................46 CHAPTER 4 AMI BIOS SETUP UTILITY ............47 Starting ....................47 Navigation Keys ................47 Main Menu ..................48 Advanced Menu ................. 49 Chipset Menu ..................56 Boot Menu ..................

  • Page 9: Chapter 1 Introduction

    Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the eBOX622-830-FL. The Chapter 1 includes the following sections:  General Description  System Specification  Dimensions  I/O Outlets  Packing List Introduction...

  • Page 10: General Description

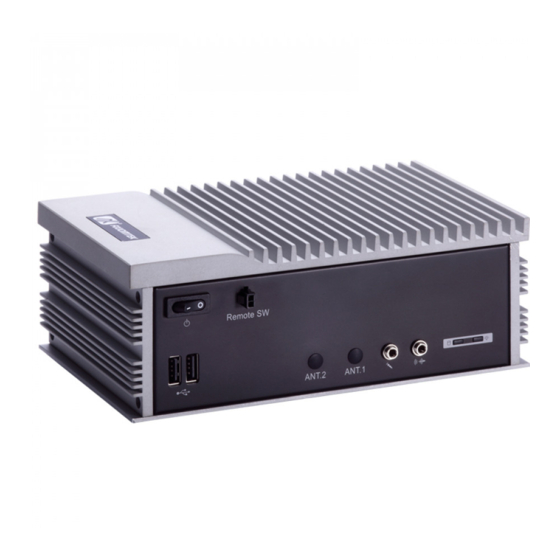

    Series User’s Manual General Description The eBOX622-830-FL is an embedded system that supports onboard dual core Intel® Atom™ processor D2550 (1.86 GHz) or N2600 (1.6GHz) processor to provide W indows 7, W indows 7 Embedded or Linux, suitable for the most endurable operation.

  • Page 11: System Specifications

    Series User’s Manual System Specifications 1.2.1 CPU  ®  Intel Atom dual core D2550 1.86 GHz. ®  Intel Atom dual core N2600 1.6 GHz  Chipset  Intel® NM10 chipset  BIOS  American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
  • Page 12 Series User’s Manual  Weight  1.98 kg (4.36 lb) without package  2.6 kg (17.64 lb) with package  Dimensions  200mm(7.87”) (W) x 120mm(4.72”) (D) x 55.8mm(2.2”) (H) Introduction...

  • Page 13: Driver Cd Content

    Series User’s Manual 1.2.4 Driver CD Content  Driver  Audio  Chipset  Ethernet  Graphic   uAPI  Manual  User Manual  Quick Manual Note: All specifications and images are subject to change without notice.

  • Page 14: System Dimensions

    Series User’s Manual System Dimensions The following diagrams show you dimensions and outlines of the eBOX622-830-FL. Introduction...

  • Page 15: I/O Outlets

    Series User’s Manual I/O Outlets The following figures show you I/O outlets on front view of the eBOX622-830-FL.  Front View  Front View drawing ATX Power Remote Power on/off Switch Switch 2 x USB 2.0 SMA type Audio Power &...
  • Page 16 Series User’s Manual  Rear View  Rear View drawing 4 x USB 2.0 2 x RJ45 HDMI CFast connectors connectors connector Cover COM1/2/3/4/5/6 10~30V DC input Connectors connector Introduction...

  • Page 17: Packing List

    Series User’s Manual Packing List The package bundled with your eBOX622-830-FL should contain the following items:  eBOX622-830-FL System Unit x 1  eBOX622-830-FL Quick Manual x 1 CD x 1 (For Driver and User’s Manual)   Screws pack x1 ...

  • Page 18: Model List

    LAN*2,RS-232/422/485*3, Rs-232*3, DC10~30V input Fanless embedded system with Intel® ATOM® N2600 eBOX622-830-FL-N2600-1.6G-DC 1.6GHz dual core processor, VGA, HDMI, USB2.0*4, LAN*2,RS-232/422/485*3, Rs-232*3, DC10~30V input If you cannot find this package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 19: Chapter 2 Hardware Installation

    Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The eBOX622-830-FL is convenient for your various hardware configurations, such as Memory Module, HDD (Hard Disk Drive), SSD (Solid State Drive) and CFast card. The chapter 2 will show you how to install the hardware.
  • Page 20 Series User’s Manual Step 4 Remove the HDD bracket Step 5 Locate the memory module, insert the gold colored contact into the socket. Hardware Installation...
  • Page 21 Series User’s Manual Step 6 Push the module down, until it is firmly seated by locking two latches on the sides. Step 7 Fasten screws of HDD bracket. Hardware Installation...
  • Page 22 Series User’s Manual Step 8 Close the cover to the chassis, and fasten all screws. Hardware Installation...

  • Page 23: Installing The Sata Hdd

    Series User’s Manual Installing the SATA HDD Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the Bottom, loosen screws. Step 3 Remove the bottom cover and Loosen screws of HDD bracket .
  • Page 24 Series User’s Manual Step 4 Remove the HDD bracket. Step 5 Assembly the HDD bracket together with the SATA HDD. Hardware Installation...
  • Page 25 Series User’s Manual Step 6 Connect SATA cable and power cable to SATA HDD. Step 7 Fasten screws of HDD bracket. Hardware Installation...
  • Page 26 Series User’s Manual Step 8 Close the cover to the chassis, and fasten all screws. Hardware Installation...

  • Page 27: Installing The Cfast

    Series User’s Manual Installing the CFast™ Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the Bottom, loosen screws. Step 3 Loosen screws to remove the CFast cover.
  • Page 28 Series User’s Manual Step 5 Slide CFast card into CFast slot with caution. Step 6 Bend the CFast Mylar with caution. Step 7 Close the cover to the chassis, and fasten all screws. Hardware Installation...

  • Page 29: Installing The Express Mini Card

    Series User’s Manual Installing the Express Mini Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the Bottom, loosen screws. Step 3 Remove the bottom cover and Loosen screws of HDD bracket.
  • Page 30 Series User’s Manual Step 4 Remove the HDD bracket to locate the two Express Mini Card slots. Mini Card Slot 2 Mini Card Slot 1 Step 5 Slide Mini card into Mini Card slot with caution and fasten screw of Express Mini Card.

  • Page 31: Installing The Wall Mount (Optional)

    Series User’s Manual Installing the Wall Mount (Optional) The eBOX622-830-FL provides Wall Mount that customers can install as below: Step 1 Prepare Wall Mount assembling components (screws and Bracket) ready. Hardware Installation...
  • Page 32 Series User’s Manual Step 2 Loose the screw of four footpads at the bottom of eBOX622-830-FL and remove footpad. Hardware Installation...
  • Page 33 Series User’s Manual Step 3 Fix the wall mount to the correct location, and fasten all screws. Hardware Installation...

  • Page 34: Installing The Vesa Mount (Optional)

    Series User’s Manual Installing the VESA Mount (optional) The eBOX622-830-FL provides VESA Mount that customers can install as below: Step 1 Prepare VESA Mount assembling components (screws and VESA mount bracket) ready. Step 2 Loose the screw of four footpads at the bottom of eBOX622-830-FL, and remove footpad.
  • Page 35 Series User’s Manual Step 3 Decide correct mounting direction.eBOX622-830-FL supports both 100x100mm and 75x75mm VESA mount. The 100x100mm type has special direction. 100x100mm 75x75mm Hardware Installation...
  • Page 36 Series User’s Manual Step 4 Fix the VESA mount to the correct location, and fasten all screws. Hardware Installation...

  • Page 37: Installing The Din-Rail Mount (Optional)

    Series User’s Manual Installing the Din-Rail Mount (optional) The eBOX622-830-FL provides Din-Rail Mount that customers can install as below: Step 1 Prepare Din-Rail Mount assembling components (screws, Din-rail and VESA mount bracket) ready. Hardware Installation...
  • Page 38 Series User’s Manual Step 2 Loose the screw of four footpads at the bottom of eBOX622-830-FL and remove footpad. Step 3 Fix the VESA mount to the correct location, and fasten all screws. Hardware Installation...
  • Page 39 Series User’s Manual Step 4 Fix the Din-rail mount bracket to the correct location, and fasten all screws. Hardware Installation...
  • Page 40 Series User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 41: Chapter 3 Jumper Setting & Connector

    Series User’s Manual CHAPTER 3 Jumper Setting & Connector Proper jumper settings configure the eBOX622-830-FL to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. SBC layout TOP Side Jumper Setting &...
  • Page 42 Series User’s Manual Bottom View Side View Note: We strongly recommended that you should not modify any unmentioned jumper setting without Axiomtek FAE’s instruction. Any modification without instruction might cause system to become damage. Jumper Setting & Connector...

  • Page 43: Jumper Settings

    Series User’s Manual Jumper Settings Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2 jumper pins to close. And remove jumper clip from 2 jumper pins to open. Below illustration shows how to set up jumper.

  • Page 44: Auto Power On (Jp4)

    Series User’s Manual 3.2.1 Auto Power On (JP4) If JP4 is enabled for AC power input, the system will be automatically power on without pressing soft power button. If JP4 is disabled for AC power input, it is necessary to manually press soft power button to power on the system.

  • Page 45: Connectors

    Series User’s Manual Connectors Connectors connect the system with other parts/devices. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Below summary table shows you all connectors on the eBOX622-830-FL. External Connectors...

  • Page 46: Wide Range Dc Power In Connector

    Series User’s Manual 3.3.1 Wide Range DC Power In Connector The system supports a wide range DC 10~30V power in phoenix c onnector for system power input. Signal DC + DC - 3.3.2 COM1~COM6 Serial Port Connector The system has six serial ports. COM1, COM5~COM6 are RS-232/422/485 ports, and COM2~COM4 are RS-232 ports.
  • Page 47 Series User’s Manual RS-232 DCD, Data Carrier Detect COM3 RXD, Receive Data TXD, Transmit Data DTR, Data Terminal Ready GND, Ground DSR, Data Set Ready RTS, Request To Send CTS, Clear To Send RI, Ring Indicator Description DCD, Data Carrier Detect...

  • Page 48: Vga Connector

    Series User’s Manual 3.3.3 VGA Connector The VGA connector is a slim type 15-pin D-Sub connector which is common for the CRT VGA display. The VGA interface configuration can be configured via the software utility. Signal Signal Signal Green Blue N.C.

  • Page 49: Lan Connector (Lan1, Lan2)

    Series User’s Manual 3.3.5 LAN Connector (LAN1, LAN2) The RJ-45 connector is for Ethernet. To connect the board to a 1000/100/10 Base-T hub, just plug one end of the cable into connector and connect the other end (phone jack) to a 1000/100/10-Base-T hub...

  • Page 50: Audio Connector

    Series User’s Manual 3.3.8 Audio Connector These two audio jacks ideal are for Audio Mic -In and Audio Line-out. Signal Microphone In Line Out 3.3.9 Remote Power On/Off Connector Remote power switch is ideal for a remote power on/off switch, which allow user to power on/off the system remotely.

  • Page 51: Sata Power Connector

    Series User’s Manual 3.3.11 SATA Power Connector The SATA connector is for high-speed SATA interface ports and they can be connected to hard disk devices. Signal +3.3VDC +3.3VDC +3.3VDC +5VDC +5VDC +5VDC +12VDC +12VDC +12VDC Jumper Setting & Connector...

  • Page 52: Cfast™ Socket

    Series User’s Manual 3.3.12 CFast™ Socket The system is equipped with a CFast™ socket on the bottom side to support a CFast™ card which is based on the Serial ATA bus . The socket is specially designed to avoid incorrect installation of the CFast™ card. W hen installing or removing the CFast™...

  • Page 53: Express Mini Card Slot

    Series User’s Manual 3.3.14 Express Mini Card Slot eBOX622-830-FL support dual PCI Express Mini Card slots. Those two slots support a PCI Express x1 link and a USB 2.0 link. The PCI Express Mini Card slots can be applied to either PCI Express or USB 2.0, and compile with PCI-Express Mini Card Spec.

  • Page 54: Sim Card Slot

    Series User’s Manual 3.3.15 SIM Card Slot SIM Card Slot is on the bottom side of the Mini Card Slot 2 for inserting SIM Card. In order to work properly, the SIM Card must be used together with Mini Card which is inserted to socket SCN2.

  • Page 55: Chapter 4 Ami Bios Setup Utility

    Series User’s Manual CHAPTER 4 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMI BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 56: Main Menu

    Series User’s Manual Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 57: Advanced Menu

    Series User’s Manual Advanced Menu  Launch PXE OpROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up.  Launch Storage OpROM Enable or disable boot option for legacy mass storage devices with option ROM.
  • Page 58 Series User’s Manual  ACPI Settings  ACPI Sleep State When the sleep button is pressed, the system will be in the ACPI sleep state. The default is S1 (CPU Stop Clock). AMI BIOS Setup Utility...
  • Page 59 Series User’s Manual  CPU Configuration This screen shows the CPU Configuration. AMI BIOS Setup Utility...
  • Page 60 Series User’s Manual  SATA Configuration In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices.  Configure SATA as Determine how SATA controller(s) operate.
  • Page 61 Series User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 62 Series User’s Manual  F81801 Super I/O Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 63 Series User’s Manual AMI BIOS Setup Utility...

  • Page 64: Chipset Menu

    Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► Host Bridge For items marked with “”, please press <Enter>...
  • Page 65 Series User’s Manual  Host Bridge This screen allows users to configure parameters of Host Bridge chipset.  Memory Frequency and Timing Use this item to refer to the information related to memory frequency.  Intel IGD Configuration Use this item to configure internal graphics controller.
  • Page 66 Series User’s Manual  Intel IGD Configuration This screen shows the configure parameters of internal graphics controller. IGFX – Boot Type  Select the video device which will be activated during POST (Power-On Self Test). This has no effect if external graphics present.

  • Page 67: Boot Menu

    Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices.

  • Page 68: Security Menu

    Series User’s Manual Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).  User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 69: Save & Exit Menu

    Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 70 Series User’s Manual  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes. ...

  • Page 71: Chapter 5 Drivers Installation

    Series User’s Manual CHAPTER 5 Drivers Installation The device drivers are located on the product information CD that comes with the eBOX622- 830-FL Series package. The auto-run function of drivers will guide you to install the utilities and device drivers under Windows system. You can follow the onscreen instructions to install these devices: ...
  • Page 72 Series User’s Manual 2. A Readme File Information screen appears to show you the system requirements and installation information. Click “Next” to next step. 3. Please wait while setup processes the following operations. Drivers Installation...
  • Page 73 Series User’s Manual 4. You are suggested to select “Yes, I want to restart this computer now”. Click “Finish” to complete the setup process and reboot. Drivers Installation...

  • Page 74: Installing Graphics Media Accelerator Driver

    Series User’s Manual Installing Graphics Media Accelerator Driver Run the setup.exe program from the driver directory in product information CD. Click “Next” to next step. Drivers Installation...
  • Page 75 Series User’s Manual ® License Agreement screen appears, please click “Yes” to next step. When Intel A Readme File Information screen appears to show you the system requirements and installation information. Click “Next” to next step. Drivers Installation...
  • Page 76 Series User’s Manual Please wait while setup processes the following operations. When the following screen appears, please click “Next”. Drivers Installation...
  • Page 77 Series User’s Manual You are suggested to select “Yes, I want to restart this computer now”. Click “Finish” to complete the setup process and reboot. Note: After the computer reboots, the display is in extended mode. Please click hot key <Ctrl+Alt+F1>...

  • Page 78: Installing Ethernet Driver

    Series User’s Manual Installing Ethernet Driver Unzip PROWin32 for ethernet driver from the driver directory in product information CD. Click “Next” to start the installation. Drivers Installation...
  • Page 79 Series User’s Manual When the following screen appears, please select the program features you want to install. Click “Next” to continue. Click “Finish” to complete the installation. Drivers Installation...

  • Page 80: Installing Audio Driver

    Series User’s Manual Installing Audio Driver Run the setup.exe for audio from the driver directory in product information CD. Click “Next” to continue. Drivers Installation...
  • Page 81 Series User’s Manual You are suggested to select “Yes, I want to restart my computer now”. Click “Finish” to complete the setup process and reboot. Drivers Installation...
  • Page 82 Series User’s Manual This page is intentionally left blank. Drivers Installation...

  • Page 83: Appendix A Watchdog Timer

    Series User’s Manual Appendix A Watchdog Timer About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 84 Series User’s Manual Begin Begin Next Next Enable and Initialize Enable and Initialize Watchdog Timer Watchdog Timer Next Next Program “A” Program “A” Next Next Disable Watchdog Reset Watchdog Timer Timer Next Next Watchdog Timer...

  • Page 85: Sample Program

    Series User’s Manual Sample Program Assembly sample code : ;Un-lock super I/O: dx,2Eh al,87 dx,al dx,al ;Select Logic device: dx,2Eh al,07h dx,al dx,2Fh al,07h dx,al ;WDT Device Enable: dx,2Eh al,30h dx,al dx,2Fh al,01h dx,al ;Activate WDT: dx,2Eh al,F0h dx,al...
  • Page 86 Series User’s Manual al,0F6h dx,al dx,2Fh al,Mh ;M=00h,01h,...FFh (hex),Value=0 to 255 Note dx,al ;(see below ;Set Second or Minute : dx,2Eh al,0F5h dx,al dx,2Fh Note al,Nh ;N=71h or 79h(see below dx,al ;Disable WDT: dx,2Eh al,30h dx,al dx,2Fh al,00h ;Can be disabled at any time...
  • Page 87 Series User’s Manual 01: Time-out occurs after 1 minute 02: Time-out occurs after 2 minutes 03: Time-out occurs after 3 minutes FFh: Time-out occurs after 255 minutes Watchdog Timer...
  • Page 88 Series User’s Manual This page is intentionally left blank. Watchdog Timer...
