eBOX671-521-FL Series user's Manual
3.3.8

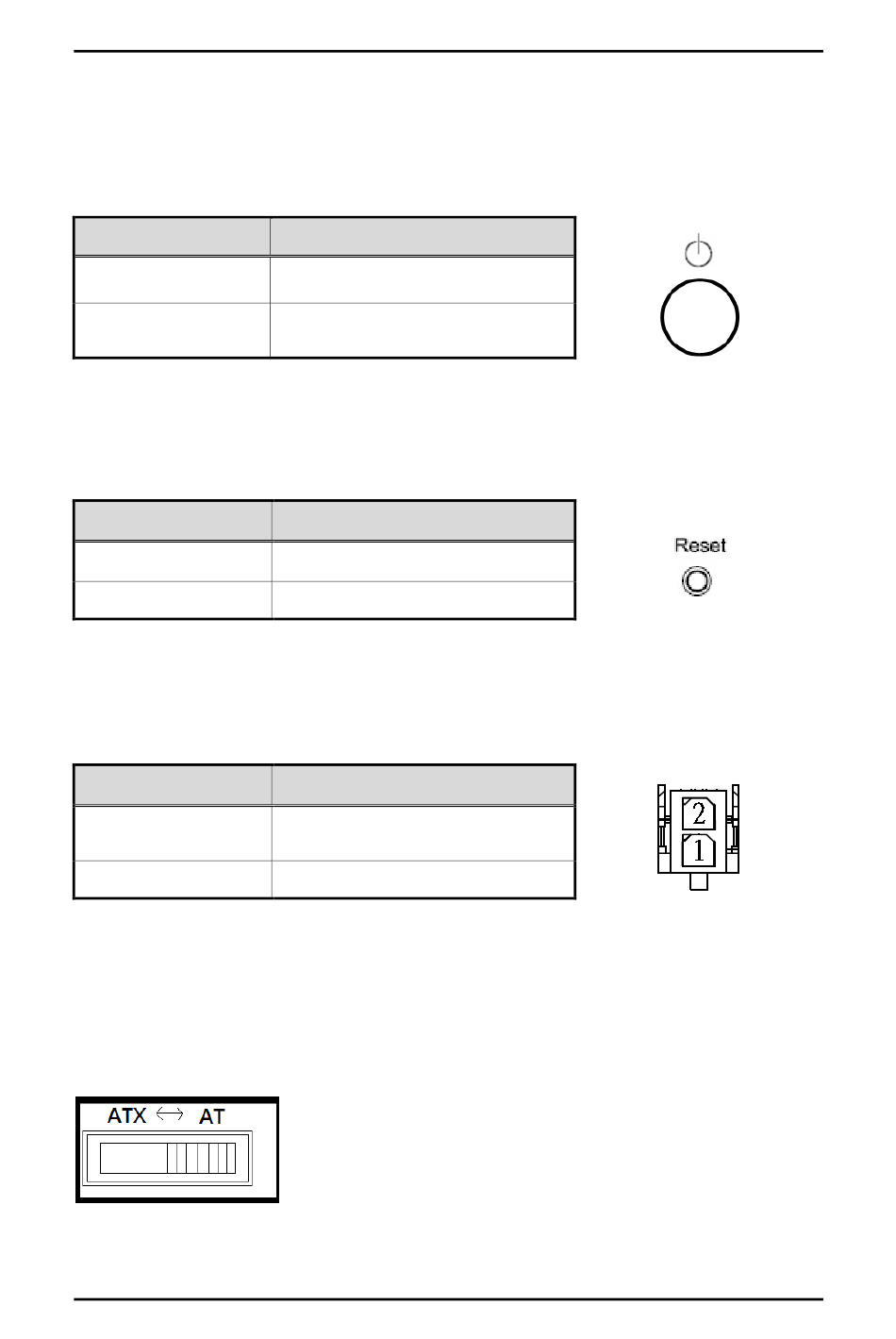

ATX Power on/off (SW3)

The ATX power button is on the I/O side. It can allow users to control eBOX671-521-FL power
on/off.
Functions
On
Off
3.3.9

Reset Button (SW2)

The Reset button can allow users to reset eBOX671-521-FL system.
Functions
On
Off

3.3.10 Remote Power Switch Connector (PWRBT1)

One 2-pin connector output for remote power on/off switch.
Functions
Short(1-2)
Open

3.3.11 AT/ATX Switch

If you set AT/ATX switch to AT mode, the system will automatically power on without pressing
soft power button during power input; We can use this switch to achieve auto power on
demand.
34
Descriptions
Turn on/off system
Keep system status
Descriptions
Reset system
Keep system status
Descriptions
Turn on/off system
Keep system status
Jumper & Connector Settings
