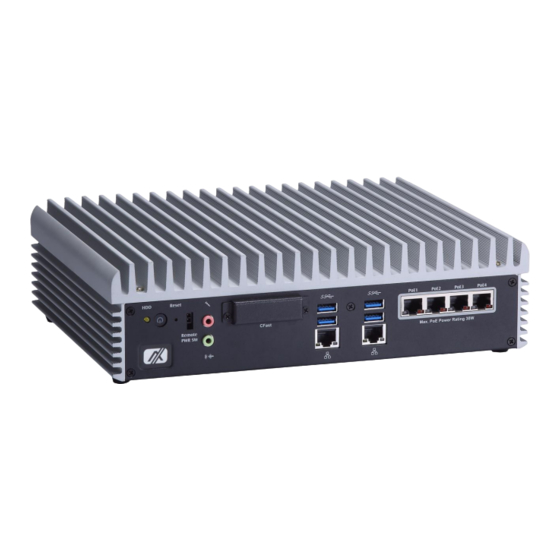

AXIOMTEK eBOX671-885-FL Series Quick Installation Manual

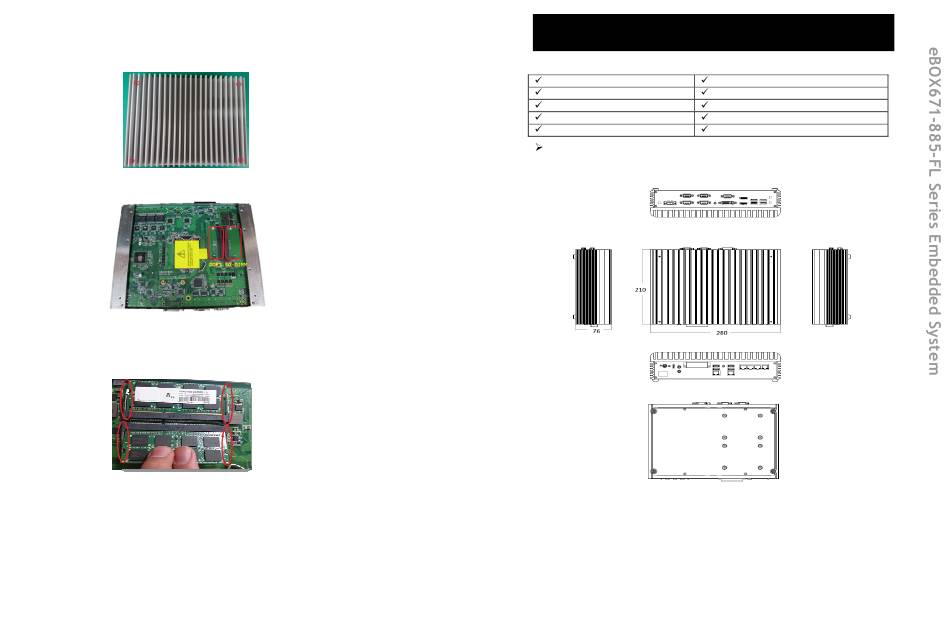

Installing the SO-DIMM
Step 1 Turn off the system and unplug the power-cord.
There are four screws on the top heatsink are used to
Step 2
fasten the heatsink to the chassis.
Loosen these screws to remove the top heatsink then
Step 3
you can find dual SO-DIMM sockets on main board.
Locate the memory module, insert the gold colored
Step 4
contact into the socket, and push the module down,
until it is firmly seated by locking two latches on the
sides.
Step 5 Assemble top heatsink with chassis through 4 screws
carefully to complete SO-DIMM installation.
Note: Please be informed that you can get more detail information in
eBOX671-885 user's manual.
4
©Copyright 2017 Axiomtek Co., Ltd.
Version A2 June 2017
Printed in Taiwan
9416K671010E
eBOX671-885-FL Quick Installation Guide
Packing List
System Unit x 1
Quick Installation Guide x 1
Screws Pack x 1
3 Pin Phoenix Connector x 1
Optional Wall-mount Bracket
Do not try to apply power to the system if any damaged components.
Dimensions
PoE Specification
Compliant:
- 4ports full-load, IEEE802.3af Class 2 (7Watt)
- 2ports full-load, IEEE802.3af Class 3 (15.4Watt)
- 1ports full-load, IEEE802.3at Class 4 (30Watt)
Power Output: Total maximum 30 watt for 4 ports
©Copyright 2017 Axiomtek Co., Ltd.
Version A2 June 2017
Printed in Taiwan
9416K671010E
DVD/CD x 1 ( Driver & Manual)
Foot Pad x4
Processor Thermal Pad
Remote Switch Cable x 1
Optional Antenna & Module
1
