Set up your XBee devices
2. Set up the second XBee module (XBEE_B):
a. Select the second XBee module.
b. Click the Load default firmware settings button
c. Configure the following parameters:
d. Click the Write radio settings button

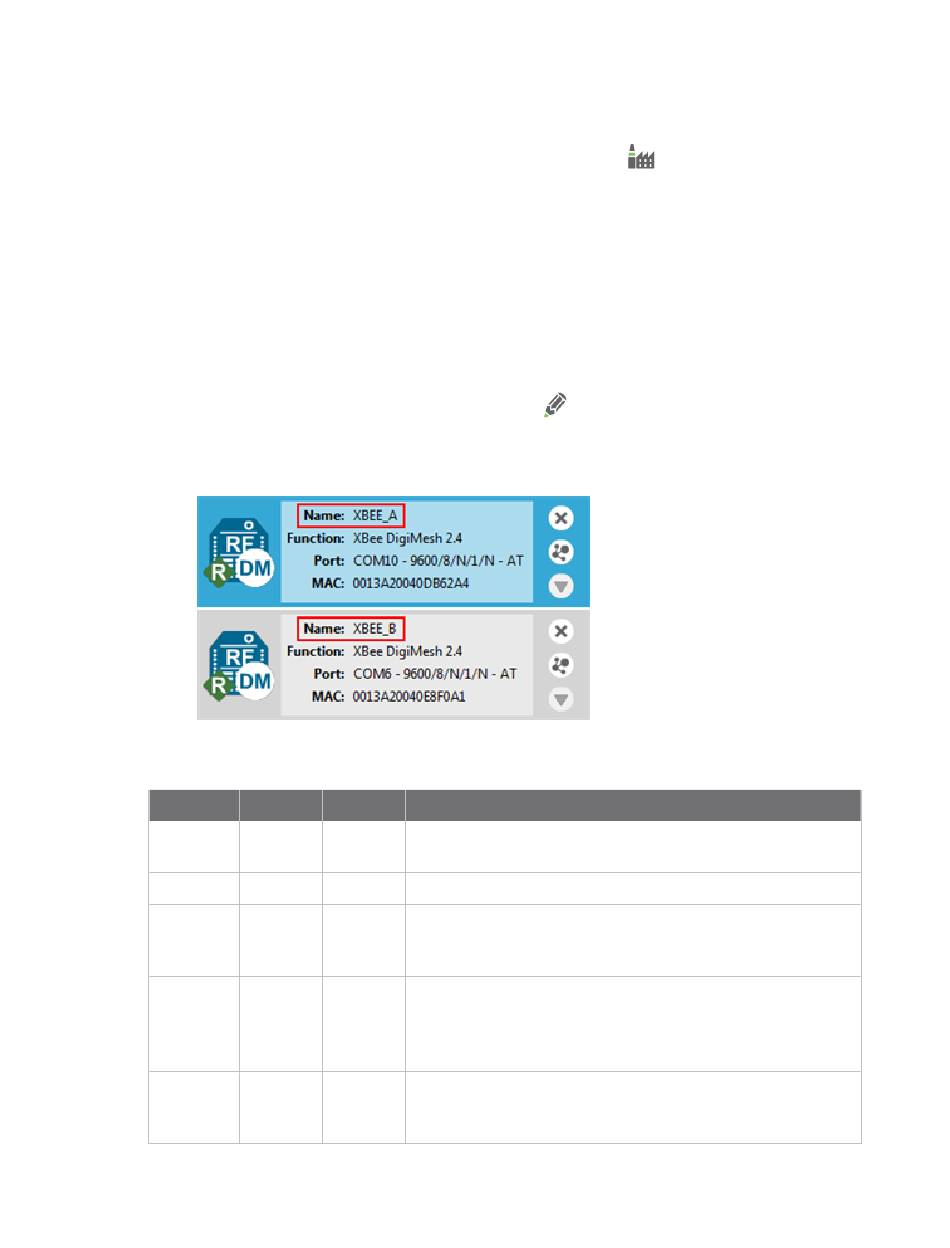

After you write the radio settings for the XBee modules, their names appear in the Radio
Modules area.
3. For more information about the parameters, see the following table:
Parameter XBEE_A
ID
D161
DH
0013A200 0013A200 Defines the destination address (high part) for the message.
DL SL of
XBEE_B
NI
XBEE_A
PL
0
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
ID: D161
DH: 0013A200
DL: SL of XBEE_A (Enter the last eight characters of the MAC address for XBEE_A.
Or select XBEE_A and find its SL value.)
NI: XBEE_B
PL: 0
XBEE_B Effect
D161 Defines the network that a radio will attach to. This must be
the same for all devices in your network.
SL of Defines the destination address (low part) for the message.
XBEE_A The value of this setting is the SL (Serial Number Low) of the
other module.
Defines the node identifier.
XBEE_B
Note The default NI value is a blank space. Delete the space
when you change the value.
0 Defines the transmitter output power level. When you are
creating a mesh network, set this parameter to the lowest
value (0) to help reduce the distance between the two devices.
Step 3: Set up your first wireless connection
.
.
