Set up your XBee devices

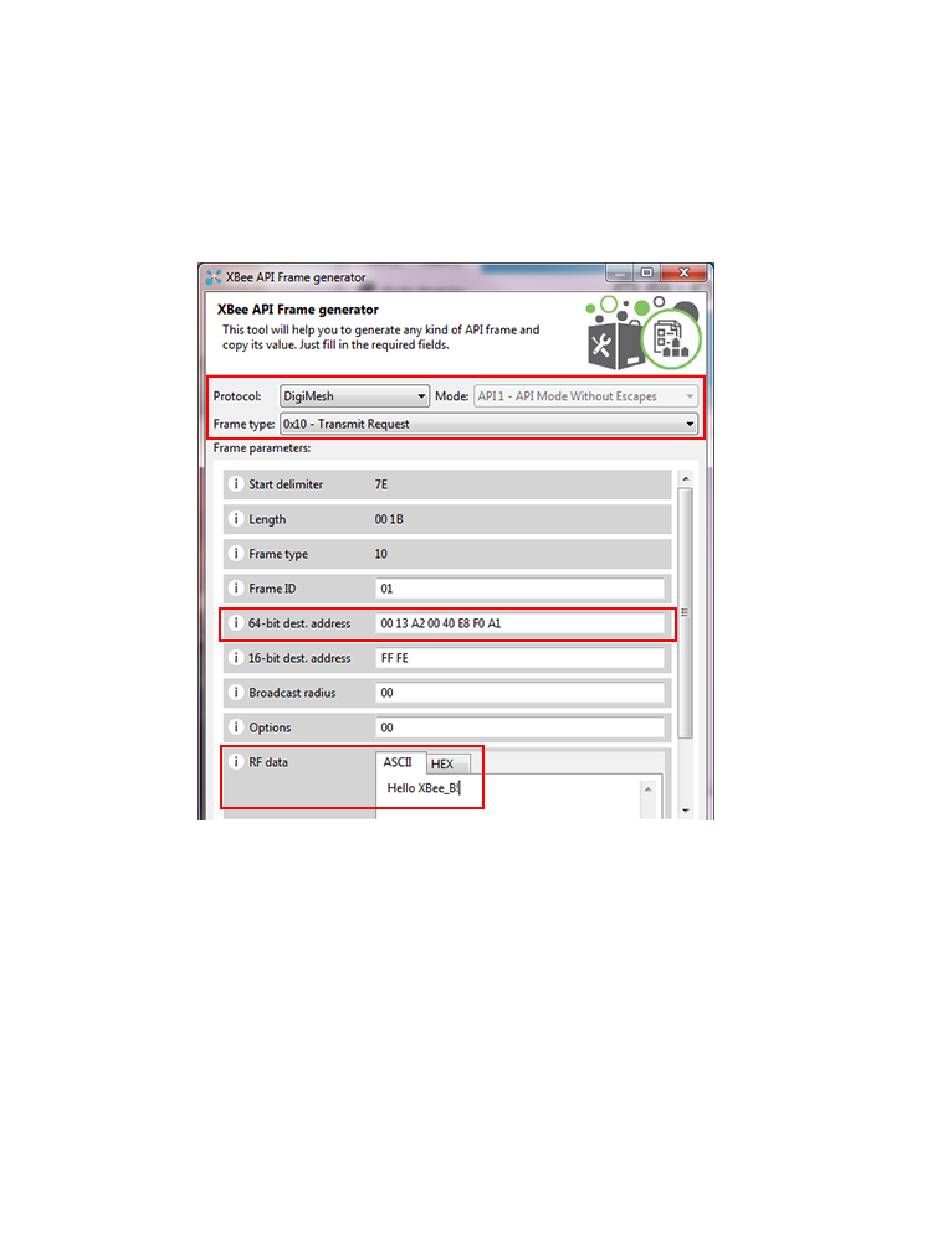

8. In the XBee API Frame generator dialog, configure the following parameters:
Protocol: DigiMesh
Mode: API 1
Frame type: 0x10 - Transmit Request
64-bit dest. address: MAC address of XBEE_B
RF data: Type "Hello XBee_B!" in the ASCII tab
9. Click OK.
10. In the Add API frame to the list dialog, type a name for your frame.
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
Step 5: Use API mode to talk to XBee modules
26
