Set up your XBee devices

1. Reconnect XBEE_B to your computer.

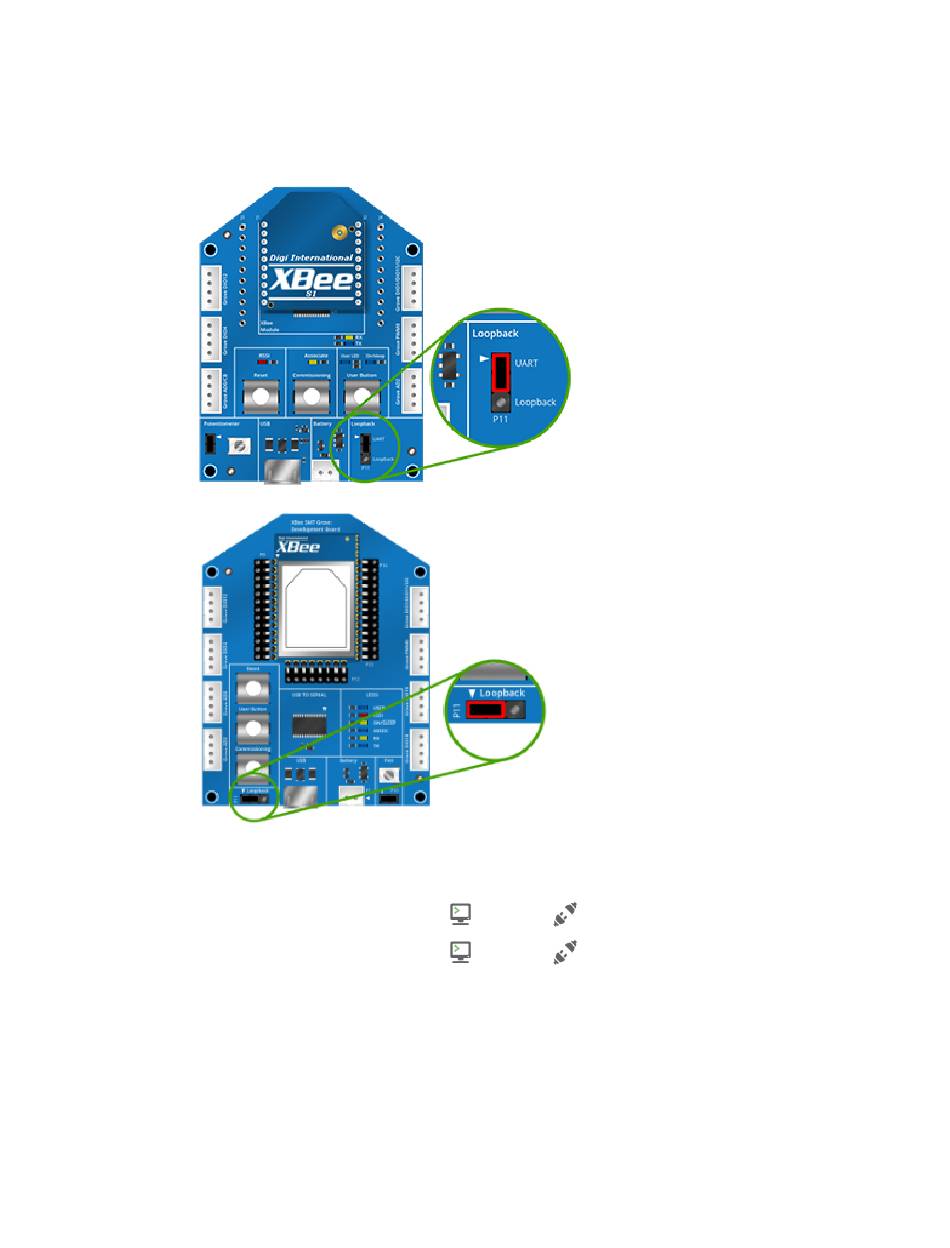

2. Make sure the loopback jumper on XBEE_B no longer bridges the two pins on its development

board.

3. In XCTU, rediscover XBEE_B.

4. Switch XBEE_A and XBEE_B to console mode:

a. Select XBEE_A and click

b. Select XBEE_B and click

5. Select XBEE_A.

XBee S2C DigiMesh 2.4 Kit Getting Started Guide

Step 5: Use API mode to talk to XBee modules

. Then click

to open a serial connection.

. Then click

to open a serial connection.
