Do more with your XBee devices

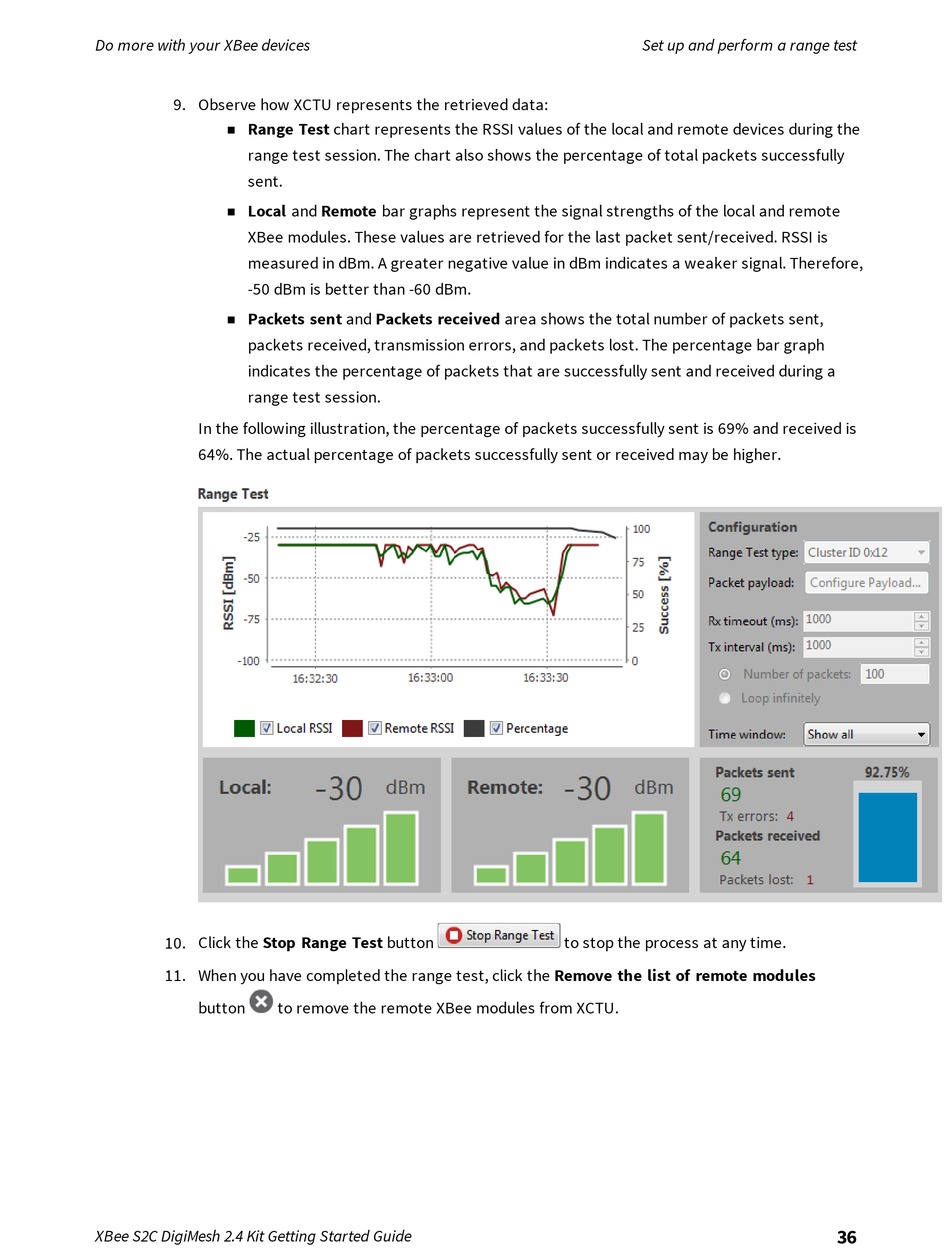

9. Observe how XCTU represents the retrieved data:
Range Test chart represents the RSSI values of the local and remote devices during the
n
range test session. The chart also shows the percentage of total packets successfully
sent.
Local and Remote bar graphs represent the signal strengths of the local and remote
n
XBee modules. These values are retrieved for the last packet sent/received. RSSI is
measured in dBm. A greater negative value in dBm indicates a weaker signal. Therefore,
-50 dBm is better than -60 dBm.
Packets sent and Packets received area shows the total number of packets sent,
n
packets received, transmission errors, and packets lost. The percentage bar graph
indicates the percentage of packets that are successfully sent and received during a
range test session.
In the following illustration, the percentage of packets successfully sent is 69% and received is
64%. The actual percentage of packets successfully sent or received may be higher.
10. Click the Stop Range Test button
11. When you have completed the range test, click the Remove the list of remote modules
button
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
to remove the remote XBee modules from XCTU.
Set up and perform a range test
to stop the process at any time.
