Set up your XBee devices

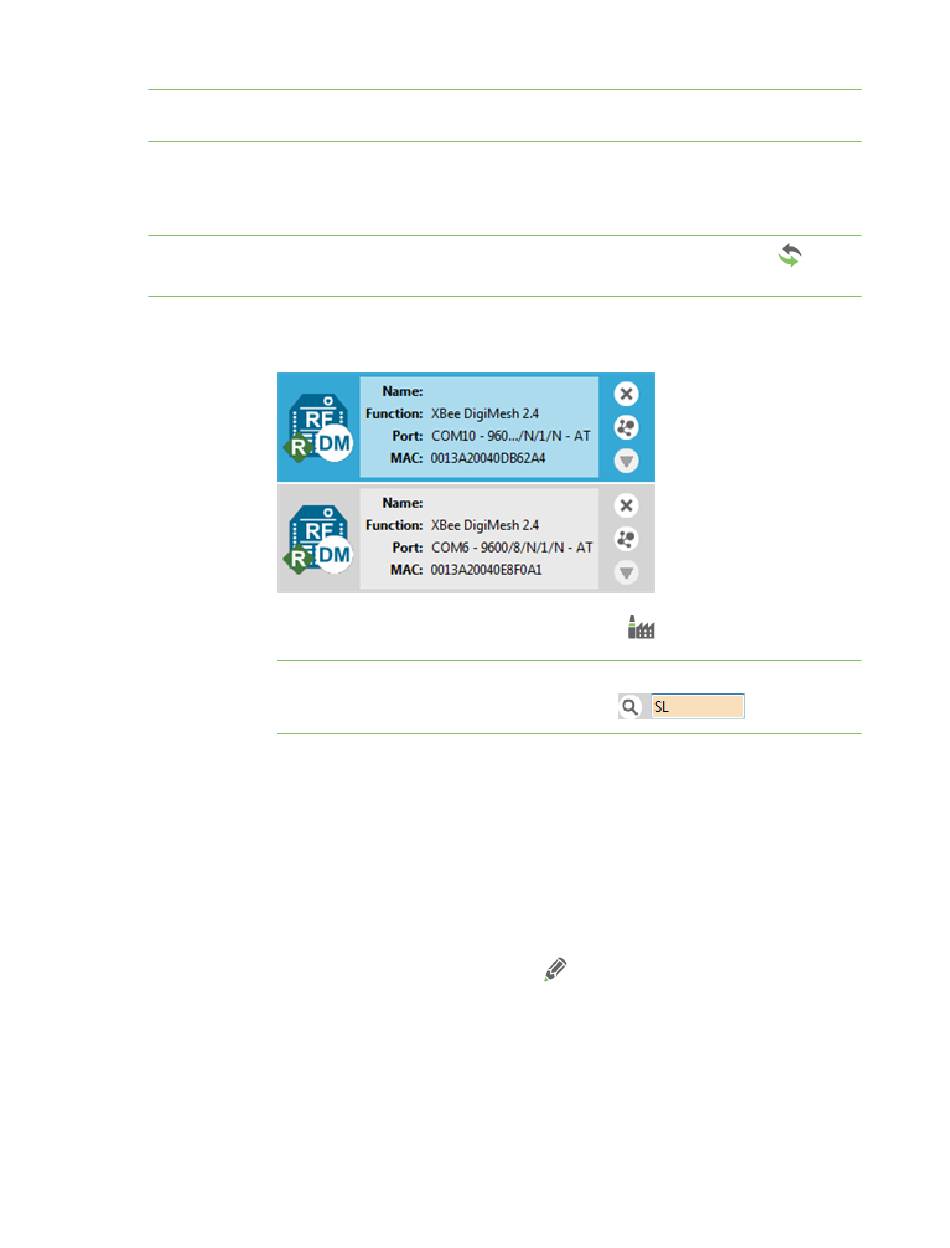

Note The function, port number and the MAC address that are displayed for your modules do not need
to match those shown in the graphic.

Configure the first two XBee modules in transparent mode

To transmit data wirelessly between your XBee modules, configure them to be in the same network.
Tip To locate an XBee module, select it in XCTU and click the Read radio settings button
and Tx LED lights on its development board blink green and yellow.
1. Set up the first XBee module (XBEE_A):
a. Select the first XBee module.
b. Click the Load default firmware settings button
c. Configure the following parameters:
d. Click the Write radio settings button
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
Tip In the following steps, type parameter initials in the Search box to quickly find
a parameter, as shown in the following example:
ID: D161
DH: 0013A200
DL: SL of XBEE_B (Enter the last eight characters of the MAC address for XBEE_B.
Or select XBEE_B and find its SL value.)
NI: XBEE_A
PL: 0
Step 3: Set up your first wireless connection
.
.
. The Rx
15
