Do more with your XBee devices
1. Add two XBee modules to XCTU. See
2. Configure the first XBee module in API mode and name it XBEE_A. See
module in API mode.
3. Configure the second XBee module in either API or transparent mode, and name it XBEE_B.
See Configure the first two XBee modules in transparent
4. Disconnect XBEE_B from your computer and remove it from XCTU by clicking the Remove the
list of remote modules button
5. Connect XBEE_B to a power supply (or laptop or portable battery).

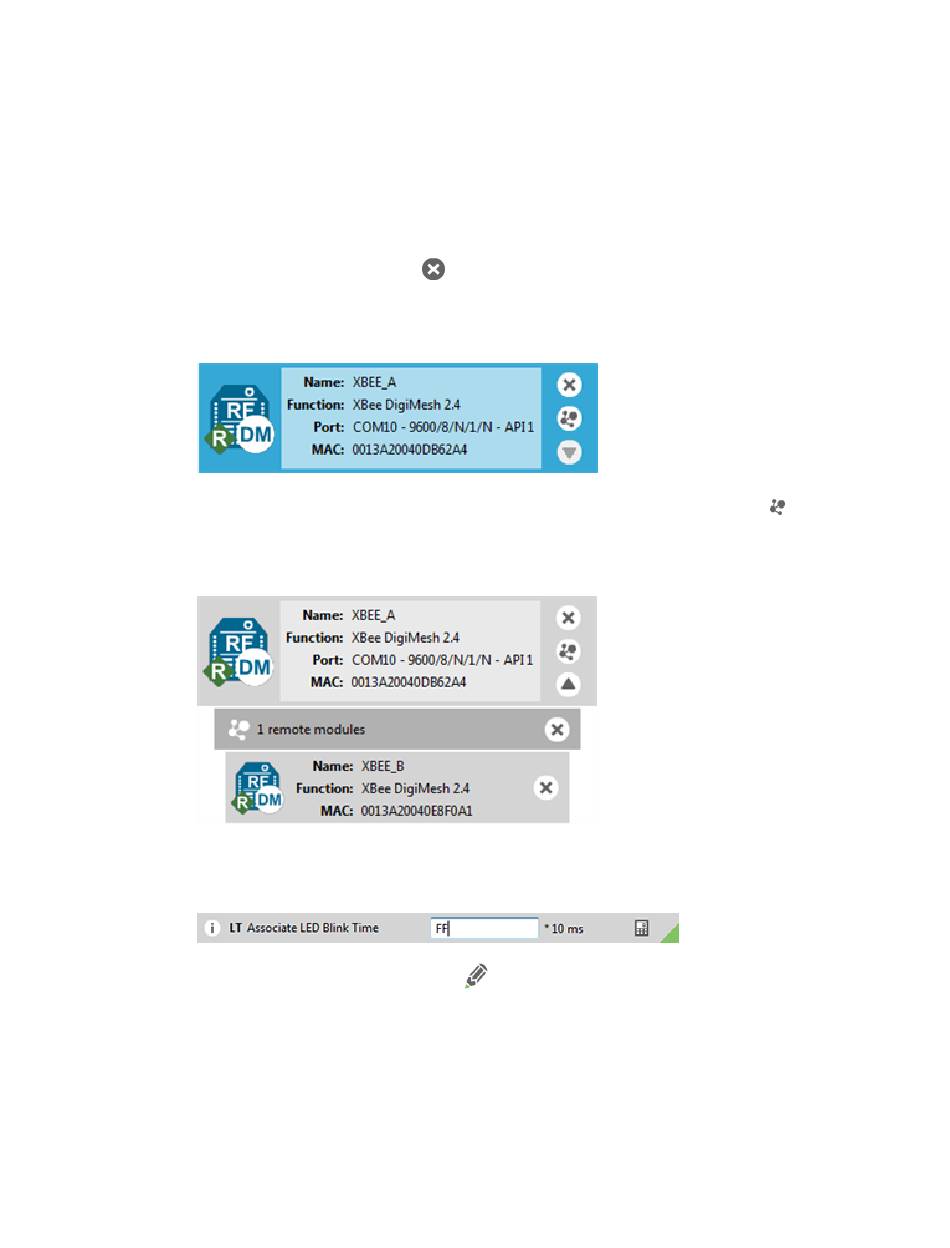

Your Radio Modules area should look something like this.
6. Select XBEE_A and click the Discover radio nodes in the same network button
7. Click Add selected devices in the Discovering remote devices dialog. The discovered remote
device appears below XBEE_A.
8. Select the remote device XBEE_B, and configure the following parameter:
LT: FF (hexidecimal representation for 2550 ms)
9. Click the Write radio settings button
The remote XBee module now has a different LED blink time.
10. To return to the default LED blink times, change the LT parameter back to 0 for XBEE_B.
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
Add XBee modules to XCTU.
mode.
.
.
Configure remote XBee modules
Configure an XBee
.
