Step 1: Assemble The Hardware - Digi XBee S2C DigiMesh 2.4 Kit Getting Started Manual

Set up your XBee devices

Step 1: Assemble the hardware

This kit includes three XBee Grove Development Boards. For more information about this hardware,
see the XBee Grove Development Board
To assemble the XBee module:
1. Attach the XBee modules to the XBee Grove Development Boards.
2. Connect the USB cables to the XBee Grove Development Boards.
Make sure the board is NOT powered by either the micro USB or a battery when you
plug in the XBee module.
3. Plug the XBee S2C DigiMesh 2.4 Kit modules into the XBee Grove Development Board.

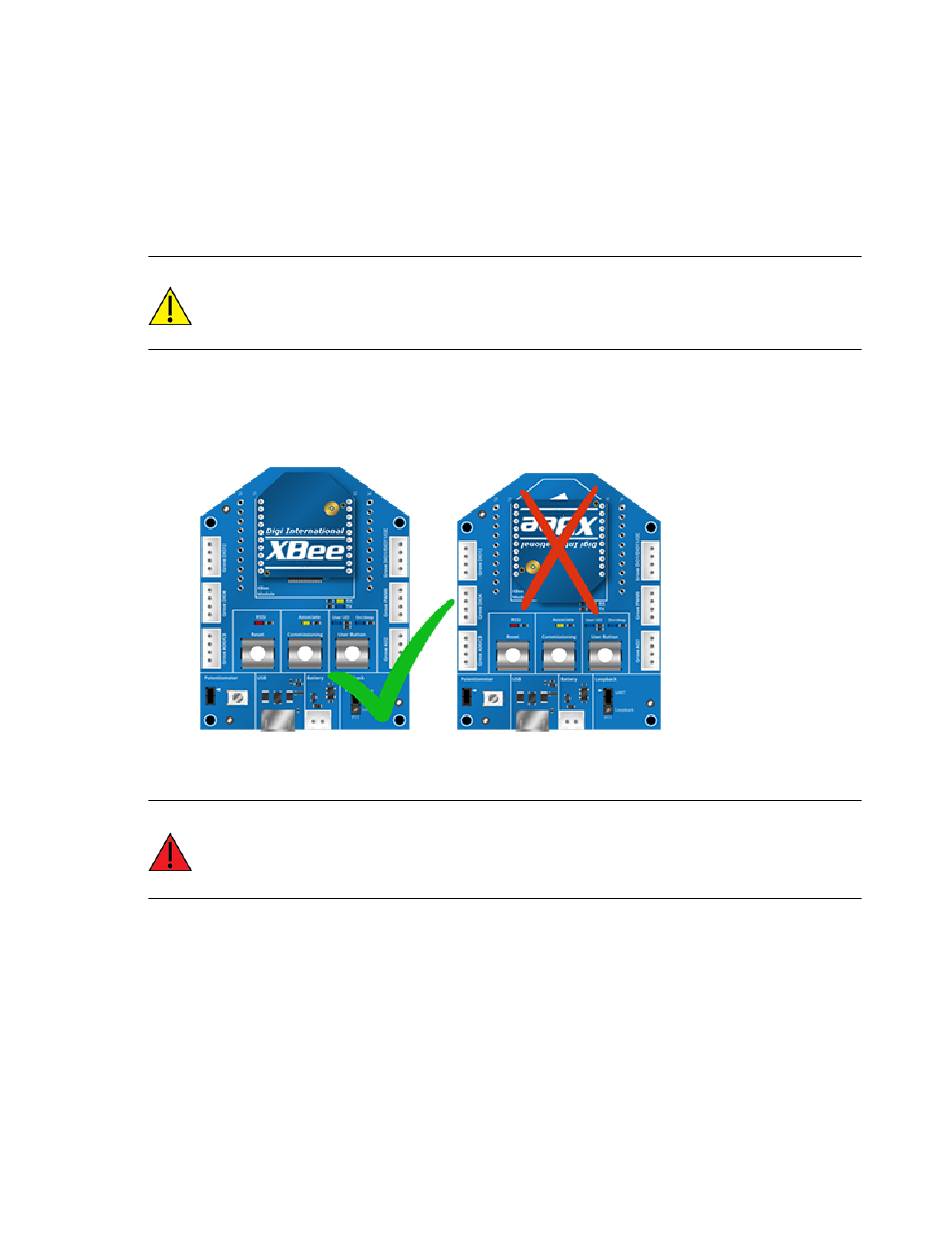

XBee TH modules have a flat edge and a more angular/diagonal edge. Match that footprint
with the white lines on your board and carefully insert it, taking care not to bend any of the
pins.
For XBee SMT modules, align all XBee pins with the spring header and carefully push the
module until it is hooked to the board.
WARNING! Never insert or remove the XBee device while the power is on!
XBee S2C DigiMesh 2.4 Kit Getting Started Guide
documentation.

Step 1: Assemble the hardware

9
