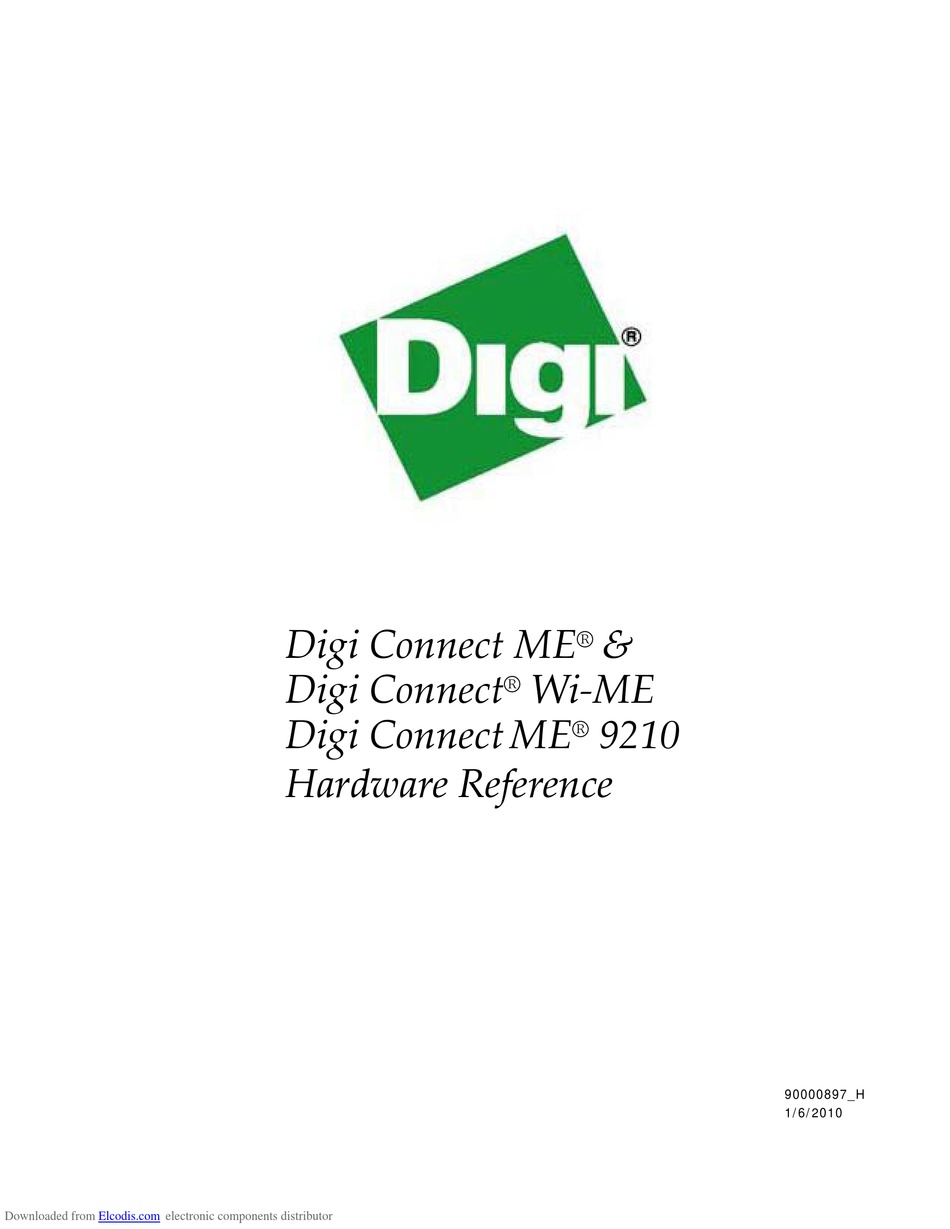

                    Hardware Reference
Downloaded from
Elcodis.com
electronic components distributor
Digi Connect ME
Digi Connect
Digi Connect

&
®
 Wi‐ME
®
ME
 9210

®
90000897_H
1/6/2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connect ME and is the answer not in the manual?

Questions and answers

Related Manuals for Digi Connect ME

Summary of Contents for Digi Connect ME

  • Page 1    Digi Connect ME & ® Digi Connect  Wi‐ME ® Digi Connect  9210   ®                     Hardware Reference  90000897_H 1/6/2010 Downloaded from Elcodis.com electronic components distributor...
  • Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time.

  • Page 3: Table Of Contents

    About This Document ........................ 5 Related Documentation ....................5 Support Information ......................5 Chapter 1: About the Digi Connect ME Family of Embedded Modules ......6 Overview .......................... 6 Types of Modules......................7 Connectors: Power and Device Interface ................. 9 Connectors: Ethernet Interface..................
  • Page 4 Thermal Specifications ....................42 Mechanical ........................43 Bar Code ........................44 Dimensions........................44 Recommended PCB Layout................... 49 Antenna Information ...................... 51 RF Exposure Statement....................54 Safety Statements......................54 Appendix B Certifications....................56 FCC Part 15 Class B ...................... 56 Industry Canada ......................57 Declaration of Conformity .....................

  • Page 5: About This Document

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Scope of the Reference Manual The purpose of this document is to enable developers to integrate the Digi Connect ME, Digi connect ME 9210, or Digi Connect Wi-ME embedded modules with other devices, enabling these devices to make use of the module’s rich networking features.

  • Page 6: Chapter 1: About The Digi Connect Me Family Of Embedded Modules

    The Digi Connect ME 9210 module is the latest, fully form factor and pin compatible, member of the Digi Connect ME family providing 75 MHz ARM9 core performance based on the Digi NS9210 processor.

  • Page 7: Types Of Modules

     Types of Modules There are two types of modules. One module utilizes Digi Plug-and-Play Firmware, while the second is customizable with the option to develop a firmware application in.NET MF or NET+OS. If you are developing your firmware application in NET+OS, you will be using a module with a JTAG interface.
  • Page 8 DC-ME-01T-PC (2/8 802.3af compliant -C module) DC-ME-01T-PS (2/8 802.3af compliant -S module) DC-ME-Y402-LX (Digi Connect ME 9210 4/8 Linux - production) DC-ME-Y402-LX-JT (Digi Connect ME 9210 4/8 Linux JTAG - dev only) Digi Connect Wi-ME Modules Model Description Figure Used for development ...

  • Page 9: Connectors: Power And Device Interface

    Pin assignments/availability for pins 1 and 2 depend on which module you are using. Pins 1 and 2 are available for Digi Connect ME; these pins are removed for Digi Connect Wi-ME. The pin assignment table shows the appropriate values.
  • Page 10 Power and Device Interface Connector Viewed from bottom of the module: Power and Device Interface Connector Pin Assignments Signal Description Wi-ME ME: Power Pass-Thru+ VETH+ — Wi-ME: Position Removed ME: Power Pass-Thru- VETH- — Wi-ME: Position removed — — Position removed Receive Data (Input) Transmit Data (Output) Request to Send (Output)

  • Page 11: Connectors: Ethernet Interface

    Power and Device Interface Connector Pin Assignments Signal Description Wi-ME Not accessible with Digi Plug-and-Play Firmware. If using a development kit, see 17, 18 "Module Pinout" on page 33 for detailed IO configuration information. Reserved. Do not connect. /INIT /INIT Software Reset The development board provides connectors for an optional PoE application kit.
  • Page 12 Data + Data - Switch + Switch + Switch - Switch - JTag Jumper The J1 controls the way in which the Connect ME 9210 JTag device responds to pin 14 being pulled low. Jumper Result None No reset Hard reset...

  • Page 13: Connectors: Antenna

    Connectors: Antenna The Digi Connect Wi-ME is available with 1 RP-SMA connector. The antenna is connected to the module with a reverse polarity SMA connector (sub-miniature size A). The antenna only fits on the module one way to ensure a proper connection. Another option for both signal reception and design flexibility is to use an antenna extension cord to separate the antenna from the module.
  • Page 14 LED Locations LED Behaviors Digi Plug-and Play Firmware Digi Plug-and Play Firmware Customizable Header Digi Connect ME Digi Connect Wi-ME Modules Network link status: On - unit is associated with an access Same as Digi Plug- Network link status: point.
  • Page 15        Downloaded from Elcodis.com electronic components distributor...

  • Page 16: Chapter 2: About The Development Board

    About the Development Board Overview The development board is a hardware platform from which you can determine how to integrate the embedded modules into your design. The board consists of the following main features: Socket for connecting the embedded modules ...

  • Page 17: Basic Description

    Basic Description The development board contains connectors, switches, and LEDs for use while integrating the embedded module into your design. See the following figure for the location of the connectors, switches, and LEDs. Additionally, the board provides test points (not shown on the figure).
  • Page 18 Connectors, Switches and LEDs Board Description Markers 1-5 Primary Port Secondary GPIO Switch Prototyping JTAG LEDs, CR5 - Serial Port, P2 Bank, SW3 Area, P4 Header, P12 CR18 Connectors, Switches and LEDs Board Description (continued) Markers 6-10 Embedded 232 Enable ME JTAG Module Primary...

  • Page 19: Port Descriptions

    Placement of Module Caution: When handling the development board, wear a grounding wrist strap to avoid ESD damage to the board. Port Descriptions The development board provides the following ports:  Primary Serial Port, P1 Secondary Serial Port, P2  ...
  • Page 20 The Secondary Serial Port is a DB-9 male connector that is labeled as P2 on the development board. The port is used only with the Digi Connect ME modules with JTAG interfaces for debugging purposes. See the following figure for pin orientation; see the following table for pin assignments.
  • Page 21 Secondary Serial Port Pin Assignments — — — — — — — Receive Transmit — Signal/ — — — — Data Data Chassis Ground RS232-Enable Pin Header, P5 P5 is used to enable or disable serial port RS232s transceiver. Shorting P5 pins 1 and 2 will enable the RS232 transceiver.

  • Page 22: Connectors And Blocks

    The following sections describe the connectors and blocks. Embedded Module Connector, P10 The Digi Connect ME embedded module Connector is a 20-pin female vertical header that is labeled P10 on the development board. See the following figure for pin orientation; see the following table for pin assignments.
  • Page 23 /RESET /RESET Reset +3.3V +3.3V Power Ground Not accessible with Digi Plug-and-Play Firmware. If using a development kit, see 17, 18 "Module Pinout" on page 33 for detailed IO configuration information.        Downloaded from Elcodis.com...
  • Page 24 The Module JTAG Interface Connector is a 14-pin female vertical header that is labeled P11 on the development board. The connector mates with the JTAG connector on the Digi Connect ME embedded module. The Module JTAG Connector pins are tied to the JTAG debugger Connector (see “JTAG Debugger Connector, P12”).
  • Page 25 JTAG Debugger Connector Pin Orientation JTAG Debugger Connector Pin Assignments Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 VCC+ VCC+ /TRST Pin 11 Pin 12 Pin 13 Pin 14 Pin 15 Pin 16 Pin 17...

  • Page 26: Switches And Push Buttons

    Logic Analyzer Header, P3 The Logic Analyzer Header is a 20-pin male vertical header that is labeled P3 on the development board. The header is for connecting a digital signal analyzer (for example, a logic analyzer) to the development board. See the following figure for pin orientation; see the following table for pin assignments.
  • Page 27 The following sections describe the switches. GPIO Switch Bank 1, SW3 GPIO Switch Bank 1, labeled SW3, is a set of five slide switches that allows the Digi Connect ME embedded module to use either serial signals or GPIO signals to communicate with a device.

  • Page 28: Development Board Leds

    Reset, SW4 The Reset switch is a push button switch labeled SW4 on the development board. Pressing the switch holds the Digi Connect ME embedded module in reset. When the push button is released, the module reboots. Power On/Off Switch, SW5 The left position means that power is on.
  • Page 29 Development Board LED Descriptions Board Indication Description State Label Logic 0 on line side CR11 RXD, Primary Serial Port Logic 1 on line side Logic 1 on line side CR12 RXD, Primary Serial Port Logic 0 on line side DTR, Primary Serial Port CR13 Logic 0 on line side Yellow...

  • Page 30: Power Jack P15

    Development Board LED Descriptions Board Indication Description State Label POE Active +12v present from POE CR24 LED Green No POE present Power On CR25 3.3v LED Green Power Off Power Jack P15 The Power Jack P15 is a barrel connector that accepts 9 to 30 VDC +/- 5%.The following table shows the polarity of the power jack.

  • Page 31: Test Points

    Test Points The development board provides 13 test points that can be identified by a board label. The test point numbers are in the development board schematic drawings. The following table lists the test point number, board label, and a brief description of each test point. Test Point Descriptions Test Board Label...

  • Page 32: Chapter 3: Programming Considerations

    This chapter provides information programmers may require to make use of some Digi Connect ME embedded module hardware resources. It provides programming information on the following topics for the Digi Connect ME-9210, the Digi Connect ME and the Digi Connect Wi-ME: "Module Pinout"...

  • Page 33: Module Pinout

    Pin configurations are available to you. Module Pinout The following table provides signal header pinout information for the Digi Connect Me, Digi Connect Wi-ME and Digi Connect ME 9210 modules. Please refer to the color key below. Applies to Digi Connect ME/Wi-ME modules.
  • Page 34 G and later modules. When using CAN Bus, the DTR line must be tri-stated. Note: The Digi Connect Wi-ME module does not provide pins 1-6. Note: When using I2C, make sure to put a 10k pull up on the SDA and SCL lines.

  • Page 35: Leds

    LEDs General Information The embedded modules have two types of LEDs:  An LED connected directly to GPIO pins on the processor and controlled directly in software An LED connected to other hardware components (normally the Ethernet  hardware) and not directly programmable by the operating system The development kit, by default, correctly configures the GPIO connected to the LED as an output and then uses this LED to represent Ethernet activity.

  • Page 36: Memory

    Memory Flash The Digi Connect ME has 2 or 4 MB of flash memory. The Digi Connect Wi-ME has 4 MB of flash memory. On the ConnectME/ARM7 family, the flash memory is controlled by chip select 0, located at 0x02000000.
  • Page 37 These measurements were taken with all Digi NS9210 processor’s I/O clocks disabled except UART A, UART C, Ethernet MAC, I/O Hub and Memory Clock0 with the ethernet connected to a 100Mb network, using a standard module plugged into a Digi JumpStart Kit development board, with nominal voltage applied:...

  • Page 38: Appendix A Module Specifications

    Serial Interface One TTL serial interface (CMOS 3.3v) with full modem control signals (DTR, DSR, DCD, RTS, CTS). The Connect ME 9210 also supports SPI and FIM-based application specific interfaces.       ...

  • Page 39: Data Rates (Bps)

    Data Rates (bps) 50, 75, 110, 134, 150, 200, 300, 600, 1200, 1800, 2400, 4800, 9600, 14400,19200, 28800, 38400, 57600, 115200, 230400, 460800 (Connect ME 9210 only), 921600 (Connect ME 9210 only) Flow Control Options RTS/CTS, XON/XOFF, None DC Characteristics The following tables provide DC characteristics for operating conditions, inputs, and outputs.
  • Page 40 (3657.60 meters) Grounding Recommendation It is recommended that you connect the tabs on the chassis of the Digi Connect ME / Wi- ME, and the ground pins directly to the logic ground plane. It is also recommended that you connect the Digi Connect ME / Wi-ME to the metal chassis of your enclosure. The idea is to provide the shortest path or a path away from circuitry for ESD to travel to ground.

  • Page 41: Power Management (Connect Me-9210 Only)

    Based on the application needs, wake-up triggers can be set up programmatically to activate the processor back to wherever it left off. In this mode, a drastic power reduction is realized by reducing the power consumption of the Digi NS9210 processor and the on- module PHY.

  • Page 42: Thermal Specifications

    Thermal Specifications The table below shows the standard operating temperature ranges for the entire Digi Connect ME family of embedded modules. Standard Operating Temperature Ranges Product Operating Temperature Range Digi Connect ME -40°C to +85°C Digi Connect ME 9210 -40°C to +80°C Digi Connect Wi-ME -30°C to +75°C...

  • Page 43: Mechanical

    The host PCB plays a large part in dissipating the heat generated by the module.  A large copper plane located under the Digi Connect ME 9210 and soldered to the module’s mounting tabs will improve the heat dissipation capabilities of the PCB.

  • Page 44: Bar Code

    Dimensions The following figures show the dimensions of Digi Connect Wi-ME and Digi Connect ME embedded modules. These are the tolerances for the drawings shown on this and the following pages:...
  • Page 45 Side Wi-ME 90˚ - 5˚        Downloaded from Elcodis.com electronic components distributor...
  • Page 46 Bottom Wi-ME        Downloaded from Elcodis.com electronic components distributor...
  • Page 47 Digi Connect ME Module Front View        Downloaded from Elcodis.com electronic components distributor...
  • Page 48 Side        Downloaded from Elcodis.com electronic components distributor...

  • Page 49: Recommended Pcb Layout

    Recommended PCB Layout The following figure shows the recommended PCB (printed circuit board) layout of the Digi Connect Wi-ME and Digi Connect ME. It is strongly recommended that you consider using the Digi Connect Wi-ME footprint for future flexibility.       ...
  • Page 50 Digi Connect ME and Wi-ME        Downloaded from Elcodis.com electronic components distributor...

  • Page 51: Antenna Information

    Any antenna matching the in-band and out-of-band signal patterns and strengths of the antenna, whose characteristics are given in the Antenna Description table and the Radiation Pattern graphic may be used with the Digi Connect Wi-ME.       ...
  • Page 52 Desktop Antenna Dimensions        Downloaded from Elcodis.com electronic components distributor...
  • Page 53 Dipole Antenna Dimensions        Downloaded from Elcodis.com electronic components distributor...

  • Page 54: Rf Exposure Statement

    RF Exposure Statement The Digi Connect Wi-ME module complies with the RF exposure limits for humans as called out in RSS-102. It is exempt from RF evaluation based on its operating frequency of 2.4 GHz, and effective radiated power less than the 3 watt requirement for a mobile device (>20 cm separation) operating at 2.4 GHz.
  • Page 55 Any external communications wiring you may install needs to be constructed to all relevant electrical codes. In the United States this is the National Electrical Code Article 800. Contact a licensed electrician for details.        Downloaded from Elcodis.com electronic components distributor...

  • Page 56: Appendix B Certifications

    FCC Part 15 Class B Radio Frequency Interference (RFI)(FCC 15.105) The Digi Connect ME and Digi Connect Wi-ME embedded modules have been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 Subpart B, of the FCC Rules.

  • Page 57: Industry Canada

    FCC ID. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: MCQ-50M880/ IC: 1846A-50M880”. Modifications (FCC 15.21) Changes or modifications to this equipment not expressly approved by Digi may void the user's authority to operate this equipment. Industry Canada...

  • Page 58: International Emc Standards

    FCC, Part 15, Class B, Emission Limits. Documentation is on file and available from the Digi International Homologation Department. International EMC Standards The Digi Connect ME and Digi Connect Wi-ME embedded modules meet the following standards: Digi Connect Digi Connect...
  • Page 59 The following antenna configurations that were tested with the Connect Wi-ME 802.11 b module. Digi 29000095, Bobbintron SA-006-1, +2 dBi dipole antenna (NP-SMA) PCTEL, MLPV2400NGP, 2.4 GHz, 3dBi gain, no ground place, low profile antenna MAXRAD, MFB24010, 2.4 GHz, 10 dBi Fiberglass OMNI antenna To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that...

  • Page 60: Appendix C Sample Application: Poe Power Supply

    Sample Application: PoE Power Supply The following schematic is an example of PoE Power Supply:        Downloaded from Elcodis.com electronic components distributor...
  • Page 61        Downloaded from Elcodis.com electronic components distributor...

  • Page 62: Appendix D Sample Application: Ttl Signals To Eia-232

    Sample Application: TTL Signals to EIA-232 The following schematic is an example of how to convert the modules’s TTL signals to EIA-232.        Downloaded from Elcodis.com electronic components distributor...
  • Page 63        Downloaded from Elcodis.com electronic components distributor...

  • Page 64: Appendix E Change Log

    Corrected bookmarks for pdf file. Correct pin numbering on the JTAG Debugger Connector Pin Orientation image. Added missing Digi Connect ME part numbers. Added section describing the JTag Jumper and new accompanying image. Made several corrections and clarifications to the guide per a red lined print copy from BIll Kumpf.

  • Page 65: Revision E

    Updated the Connectors: power and device interface section to say that pins 1 and 2 on the connector are available if using Connect ME, not available if using Connect Wi-ME. Updated the Embedded Module Connector table in Chapter 2 similarly.

  • Page 66: Revision F

    Updated the ambient (operating) temperature for Connect Wi-ME Added information regarding reading the bar code Added P12 Factory reset pin Revision F Updated Antenna drawing Added product weights Updated UL labeling description Updated dimension drawings Revision E Added Japan certification Improve dipole antenna drawing Corrected imperial pitch measurement Reformatted tables for easier reading...
