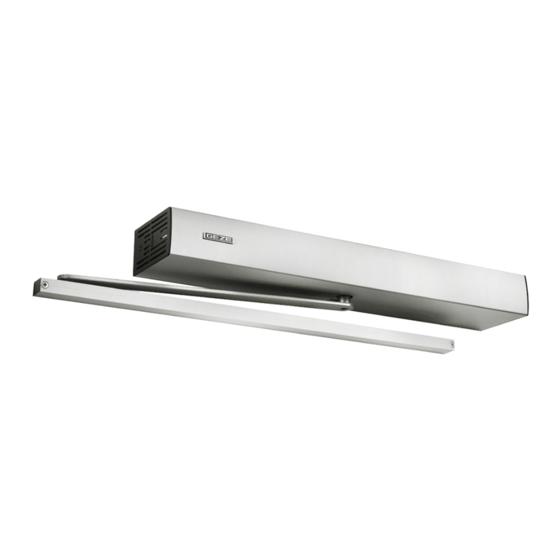

  • Page 1 Slimdrive EMD Original operating instructions EN User manual Valid for variants: Slimdrive EMD (1-leaf/2-leaf) Slimdrive EMD-F (1-leaf/2-leaf) Slimdrive EMD Invers (1-leaf/2-leaf) Slimdrive EMD-F-IS Slimdrive EMD-F/R Slimdrive EMD-F/R-IS 118176-07...

  • Page 2: Table Of Contents

    Slimdrive EMD/EMD-F Contents Introduction................................3 Symbols and illustrations ....................................3 Product liability .........................................3 Special cases ........................................3 More detailed information ....................................3 Terms .............................................4 Fundamental safety precautions ........................6 Description .................................7 Types of installation and versions ................................7 Structure ..........................................7 Overview of the modes of operation ................................8 Operating elements......................................8...

  • Page 3: Introduction

    If this is the case, please ask the service technician responsible. More detailed information Information about commissioning and service can be found on the following diagrams: à Wiring diagram Slimdrive EMD à Installation instructions Slimdrive EMD...

  • Page 4: Terms

    Low-energy function The Slimdrive EMD can be used as a low-energy drive. In low-energy function the force needed for opening and closing the door is reduced to 67 N and the opening and closing time is reduced. This lowers the danger of a per- son bumping into the moving leaf.
  • Page 5 In the event of a power failure, the closing sequence is controlled mechanically on double leaf door systems with Slimdrive EMD-F-IS. The door leaves are closed by means of the power storage device of the drives, with the active leaf being kept open by the integrat- ed mechanical closing sequence control.

  • Page 6: Fundamental Safety Precautions

    à No changes may be made to the system without prior agreement from GEZE. à GEZE shall assume no liability for damage caused by unauthorised changes to the system. à The owner is responsible for safe operation of the system.

  • Page 7: Description

    The door system shown is only a schematic diagram. For technical reasons, we cannot show all of the possibilities here. The operating elements can be arranged individually. Example: Drive unit Slimdrive EMD-F, 1-leaf, transom installation Drive unit Manual trigger switch “CLOSE DOOR”...

  • Page 8: Overview Of The Modes Of Operation

    Description Slimdrive EMD/EMD-F Overview of the modes of operation The following modes of operation can be set on the Slimdrive EMD: à Automatic à Exit only à Hold open à Night mode à OFF Mode of operation MPS/MPS-ST/ DPS** Explanatory notes...

  • Page 9: Mechanical Programme Switch Mps (Optional)

    Slimdrive EMD/EMD-F Description 3.4.2 Mechanical programme switch MPS (optional) à Can be connected additionally to the internal programme switch (20). At the mechanical programme switch MPS, the mode of operation for the system is selected and the corresponding programme is displayed.

  • Page 10: Keypad Programme Switch Tps (Optional)

    Description Slimdrive EMD/EMD-F 3.4.4 Keypad programme switch TPS (optional) à Can be connected additionally to the internal programme switch (20). à Setting of the mode of operation using the keypad programme switch is only possible when the internal pro- gramme switch (20) is set to the 0 position.
  • Page 11 Slimdrive EMD/EMD-F Description Additional door functions Which switch/push button? What does the switch/push button do? Emergency stop switch The door stops immediately (in every mode of operation) and holds the position until the emergency stop switch is unlocked. Key switch of the display programme switch...

  • Page 12: Operation

    Operation Slimdrive EMD/EMD-F Operation The set parameters of the drive functions may only be modified by a service technician. 4. 1 Selecting the mode of operation 4. 1 . 1 Selecting the mode of operation at the mechanical programme switch à...

  • Page 13: Selecting The Mode Of Operation Using The Display Programme Switch

    Slimdrive EMD/EMD-F Operation With the programme switch MPS-ST (key switch) Operation of the mechanical programme switch MPS-ST is only possi- ble with the supplied key (22). Insert the key (22) into the mechanical programme switch MPS-ST. Turn the key rotary switch (23) to the required mode of operation.

  • Page 14: Selecting The Mode Of Operation Using The Keypad Programme Switch

    Operation Slimdrive EMD/EMD-F 4. 1 .4 Selecting the mode of operation using the keypad programme switch à Setting of the mode of operation using the keypad programme switch is only possible when the internal pro- gramme switch (20) is set to the 0 position.

  • Page 15: Troubleshooting

    Select “Automatic” mode of operation Door locked mechanically Unlock the door Electric strike does not release Notify a service technician Fire alarm active (Slimdrive EMD-F only) Activate reset button (19) Drive defective Notify a service technician Door does not close...
  • Page 16 Troubleshooting Slimdrive EMD/EMD-F Problem Cause Remedy Keypad programme switch Power failure Check mains fuse without display Connection between keypad programme Notify a service technician switch and control unit faulty Keypad programme switch or control unit Notify a service technician defective...

  • Page 17: Cleaning And Maintenance

    Maintenance must be carried out at least once a year or according to the maintenance display on the display programme switch. Installation, maintenance and repair work must be performed by experts authorised by GEZE. If a dot appears on the bottom right-hand part of the display, maintenance is due.

  • Page 18: Technical Data

    Technical data Slimdrive EMD/EMD-F Technical data Opening speed: 0°/s … 33°/s Closing speed: 0°/s … 33°/s Electrical connection values: 230 V; 50 Hz pursuant to DIN IEC 38 Connected load: max. 300 W Capacity rating 230 W Protection: Mains connection 230 V: on site 4 A to 16 A Current consumption for external devices: 24 V DC connection;...
  • Page 19 Slimdrive EMD/EMD-F...
  • Page 20 E-Mail: leonberg.de@geze.com Baltic States Iberia Scandinavia – Norway Lithuania / Latvia / Estonia GEZE Iberia S.R.L. GEZE Scandinavia AB avd. Norge GEZE GmbH E-Mail: norge.se@geze.com E-Mail: baltic-states@geze.com E-Mail: info.es@geze.com Niederlassung Süd-Ost www.geze.no www.geze.es Tel. +49 (0) 7152 203 6440 E-Mail: muenchen.de@geze.com...
