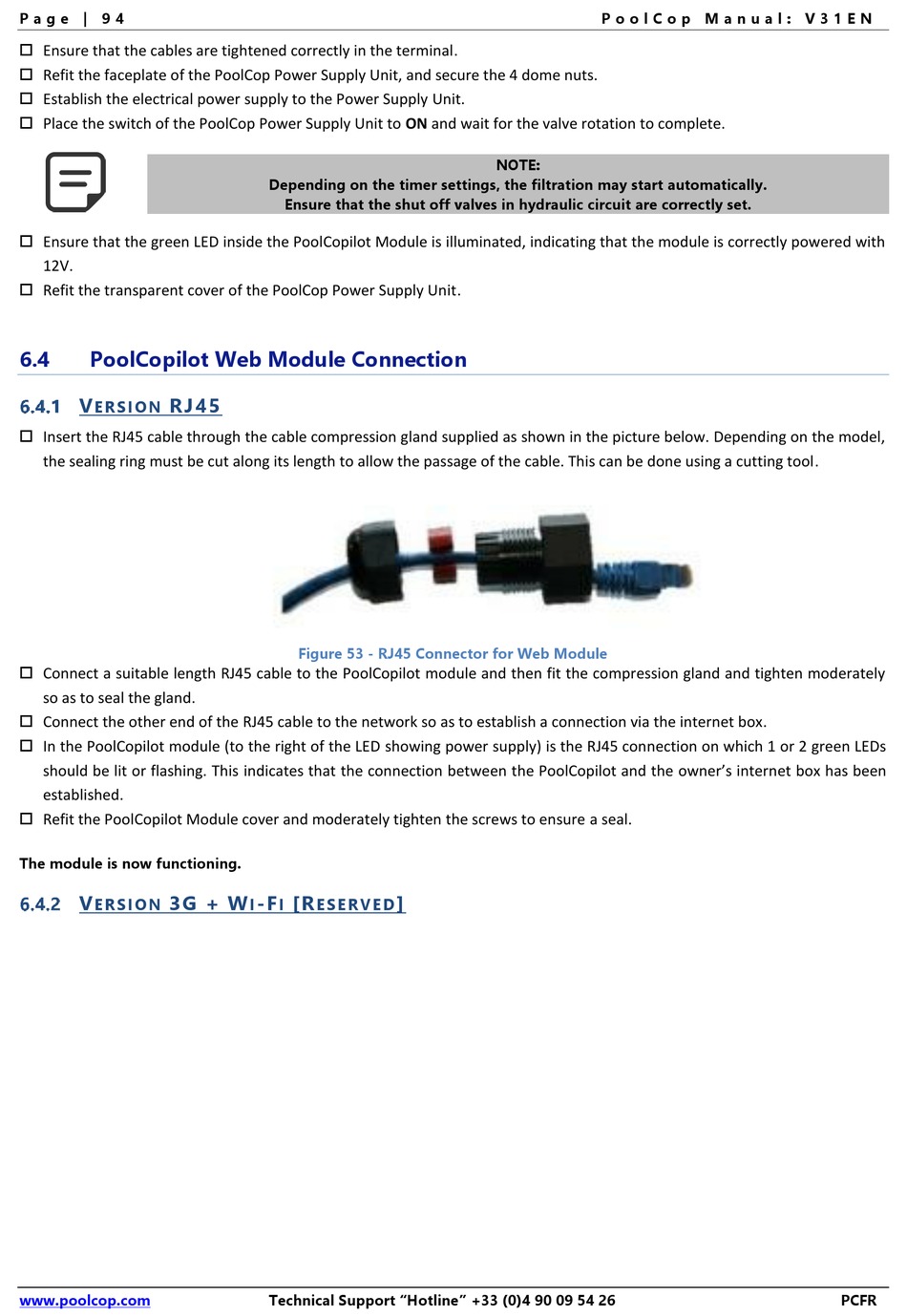

Poolcopilot Web Module Connection; Figure 53 - Rj45 Connector For Web Module; Version Rj45; Version 3G + Wi-Fi [Reserved] - PoolCop Installer And User Manual

P a g e | 9 4
 Ensure that the cables are tightened correctly in the terminal.
 Refit the faceplate of the PoolCop Power Supply Unit, and secure the 4 dome nuts.
 Establish the electrical power supply to the Power Supply Unit.
 Place the switch of the PoolCop Power Supply Unit to ON and wait for the valve rotation to complete.
 Ensure that the green LED inside the PoolCopilot Module is illuminated, indicating that the module is correctly powered with
12V.
 Refit the transparent cover of the PoolCop Power Supply Unit.
6.4

PoolCopilot Web Module Connection

V RJ 4 5
E R S I O N
 Insert the RJ45 cable through the cable compression gland supplied as shown in the picture below. Depending on the model,
the sealing ring must be cut along its length to allow the passage of the cable. This can be done using a cutting tool.
 Connect a suitable length RJ45 cable to the PoolCopilot module and then fit the compression gland and tighten moderately
so as to seal the gland.
 Connect the other end of the RJ45 cable to the network so as to establish a connection via the internet box.
 In the PoolCopilot module (to the right of the LED showing power supply) is the RJ45 connection on which 1 or 2 green LEDs
should be lit or flashing. This indicates that the connection between the PoolCopilot and the owner's internet box has been
established.
 Refit the PoolCopilot Module cover and moderately tighten the screws to ensure a seal.
The module is now functioning.
V 3 G + W
E R S I O N
www.poolcop.com
Depending on the timer settings, the filtration may start automatically.
Ensure that the shut off valves in hydraulic circuit are correctly set.

Figure 53 - RJ45 Connector for Web Module

-F [ R ]
I I E S E R V E D
Technical Support "Hotline" +33 (0)4 90 09 54 26
P o o l C o p M a n u a l : V 3 1 E N
NOTE:
PCFR
