Disconnect the power supply to and from the existing pump timer.

Disconnect the pump timer, or remove if appropriate, noting the wires that are connected to the pump or pump

protection and relay.
Connect the pool pump control circuit to the relay K1 (labelled "pump in" and "pump out") on J6.

If connecting a single-phase pump:

It is recommended that pool pumps have an independent supply, and that the PUMP relay K1 be used to control
o
the external pump relay.
The PUMP relay limit is 1600W.
o
If connecting a three-phase pump:

The pool pump will have an independent supply, and the PUMP relay K1 will be used to control the external
o
three-phase pump relay.
The PUMP relay limit is 1600W
o
www.poolcop.com
S S P
I N G L E P E E D U M P
This is a dedicated relay and will only be used for the pool pump.
A three phase pump will require a separate pump relay;
this relay will be controlled via the PUMP relay K1.

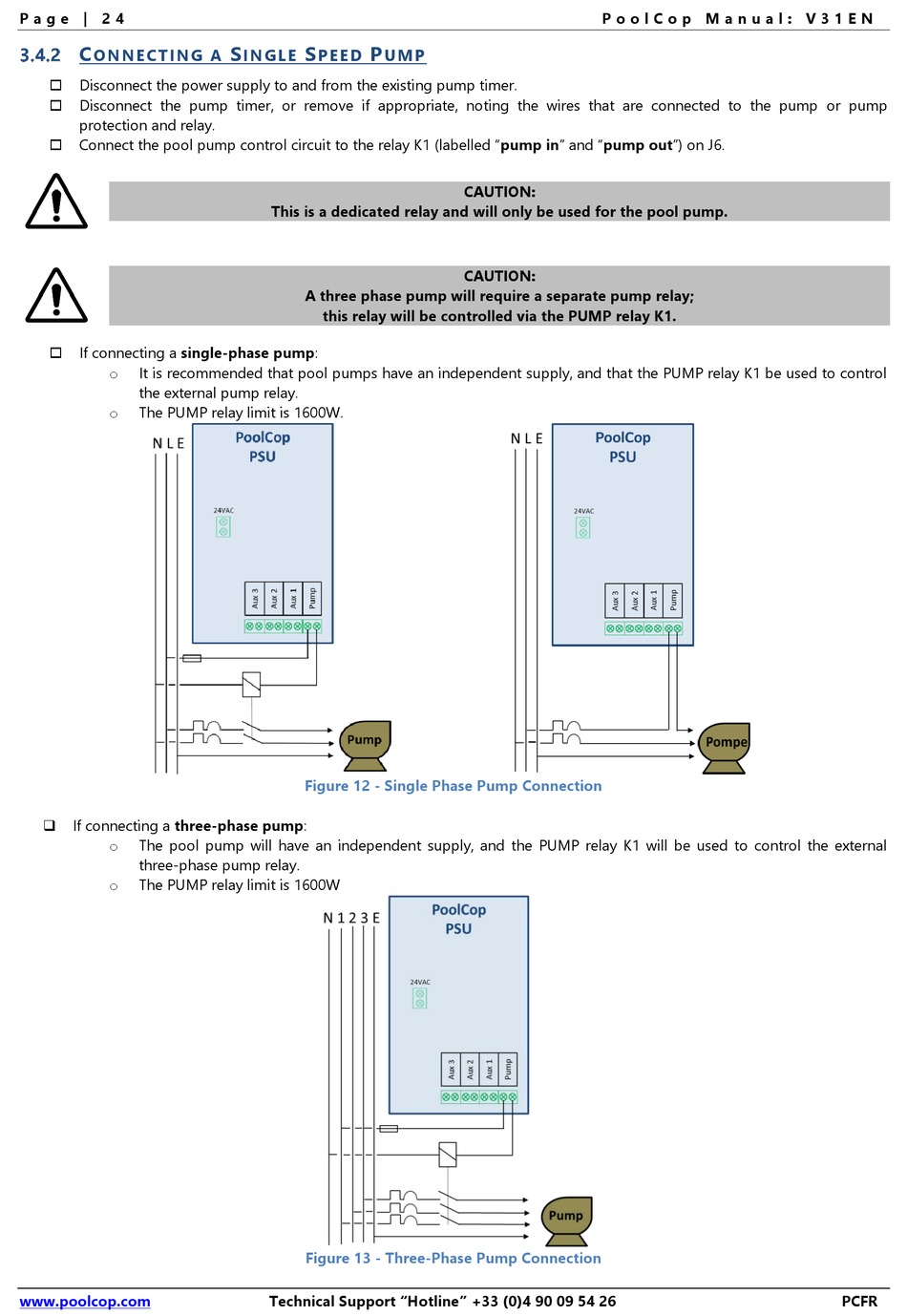

Figure 12 - Single Phase Pump Connection

Figure 13 - Three-Phase Pump Connection
