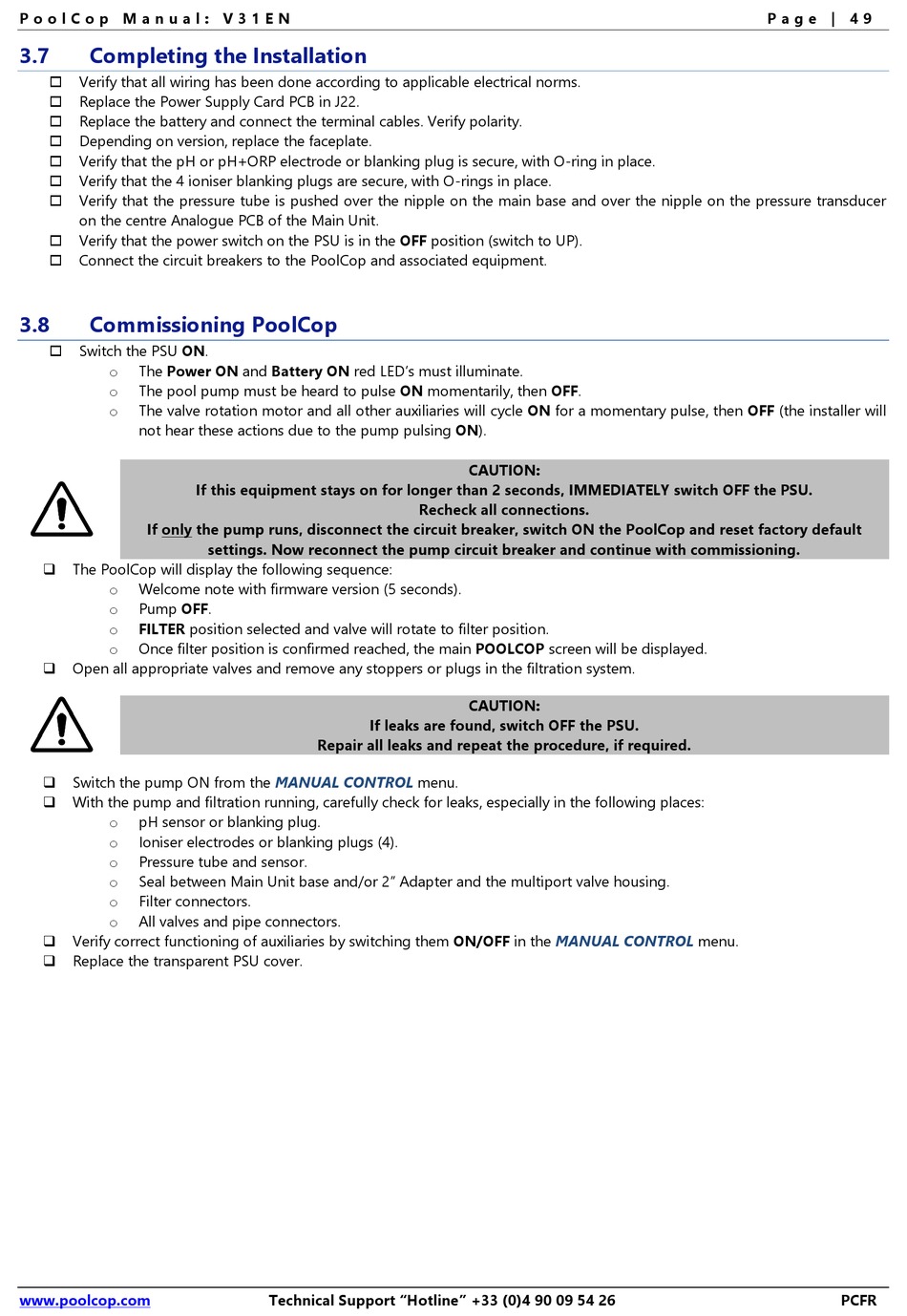

Completing the Installation

Verify that all wiring has been done according to applicable electrical norms.

Replace the Power Supply Card PCB in J22.

Replace the battery and connect the terminal cables. Verify polarity.

Depending on version, replace the faceplate.

Verify that the pH or pH+ORP electrode or blanking plug is secure, with O-ring in place.

Verify that the 4 ioniser blanking plugs are secure, with O-rings in place.

Verify that the pressure tube is pushed over the nipple on the main base and over the nipple on the pressure transducer

on the centre Analogue PCB of the Main Unit.
Verify that the power switch on the PSU is in the OFF position (switch to UP).

Connect the circuit breakers to the PoolCop and associated equipment.

3.8

Commissioning PoolCop

Switch the PSU ON.

The Power ON and Battery ON red LED's must illuminate.
o
The pool pump must be heard to pulse ON momentarily, then OFF.
o
The valve rotation motor and all other auxiliaries will cycle ON for a momentary pulse, then OFF (the installer will
o
not hear these actions due to the pump pulsing ON).
If only the pump runs, disconnect the circuit breaker, switch ON the PoolCop and reset factory default
The PoolCop will display the following sequence:

Welcome note with firmware version (5 seconds).
o
Pump OFF.
o
FILTER position selected and valve will rotate to filter position.
o
Once filter position is confirmed reached, the main POOLCOP screen will be displayed.
o
Open all appropriate valves and remove any stoppers or plugs in the filtration system.

Switch the pump ON from the

With the pump and filtration running, carefully check for leaks, especially in the following places:

pH sensor or blanking plug.
o
Ioniser electrodes or blanking plugs (4).
o
Pressure tube and sensor.
o
Seal between Main Unit base and/or 2" Adapter and the multiport valve housing.
o
Filter connectors.
o
All valves and pipe connectors.
o
Verify correct functioning of auxiliaries by switching them ON/OFF in the

Replace the transparent PSU cover.

www.poolcop.com
If this equipment stays on for longer than 2 seconds, IMMEDIATELY switch OFF the PSU.
settings. Now reconnect the pump circuit breaker and continue with commissioning.
Repair all leaks and repeat the procedure, if required.
MANUAL CONTROL
Technical Support "Hotline" +33 (0)4 90 09 54 26
CAUTION:
Recheck all connections.
CAUTION:
If leaks are found, switch OFF the PSU.
menu.
MANUAL CONTROL menu.
