P a g e | 4 8 P o o l C o p M a n u a l : V 3 1 E N
3.6.5.2 Detection of Low Consumables Level
Correctly connected to an input on the PoolCop Power Supply PCB in the PSU and correctly configured in programming, the
detection indicates consumables level low, triggering an Alert. Set the low level switch according to the manufacturer's instructions.
Multiple suction wands (or other low consumable detection circuits) for different consumables, can be connected in series. The first
detector at low level will trigger the alert.

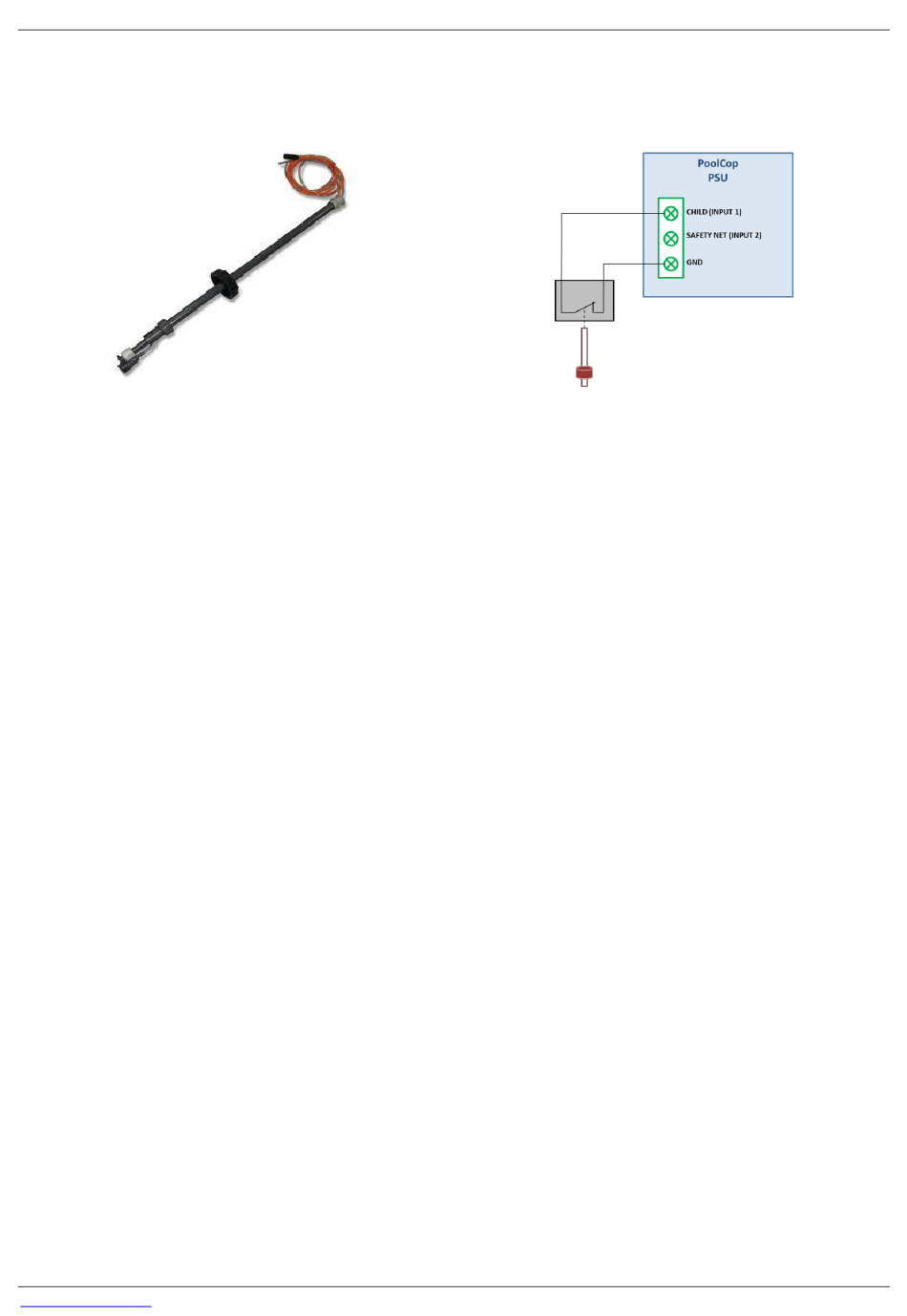

Figure 48 - Consumables Low Level Detection

Figure 47 - Suction WandWith Low
Level Detection
3.6.5.3 Pool Cover Detection
An external pool cover sensor can be connected to an input to inform PoolCop that the cover is in the closed position.
Programming in the Pool Data menu then allows for adjustment of filtration duration (in ECO+) and water treatments.
3.6.5.4 Salt System Attention Needed
A compatible salt water chlorination system can use this input configuration to alert PoolCop to system conditions requiring
intervention.
3.6.5.5 Filtration external run
Filtration can be started by using an input. This is suitable, for instance, when using a heat pump provided with the means to start
the filtration pump.
