P a g e | 9 2
6.2

Unpacking and Pre-Installation

C
O N T E N T S O F T H E
6.2.1.1 RJ45 Version
Your PoolCopilot module is supplied in its packaging containing:
The ABS box, containing the communication bridge module itself.
•
A compression gland for the RJ45 connector.
•
An installation manual.
•
6.2.1.2 3G + Wi-Fi Version [Reserved]
M AC A
D D R E S S
The label on the module inside the ABS box shows its "mac address. Carefully retain this information as it will be required when
connecting your module to the server database.
P -I
R E N S T A L L A T I O N
Before starting the installation, the installer must confirm the following with the pool owner:
 An internet connection is available in close enough proximity to be able to connect using an RJ45 cable. If this is not the
case, the installer can supply a pair of power line Ethernet plugs (not supplied), or alternatively a Wi-Fi bridge connection
(not supplied).
 The owner's internet box has at least one connection port available; the connection between the PoolCopilot Module and
the central server is via the internet access of the box.
 There is sufficient space in close proximity to the PoolCop Power Supply Unit to install the PoolCopilot box.
Before starting the PoolCopilot installation the installer will:
 Ensure that the filtration can be stopped for approximately one hour.
 Ensure that the PoolCop Firmware is version V26.0 or higher. This can be verified on the PoolCop control interface in the
MENU -> CONFIGURATION -> FACTORY SETTINGS.
menus:
www.poolcop.com
P
A C K A G I N G
( SN)
O R

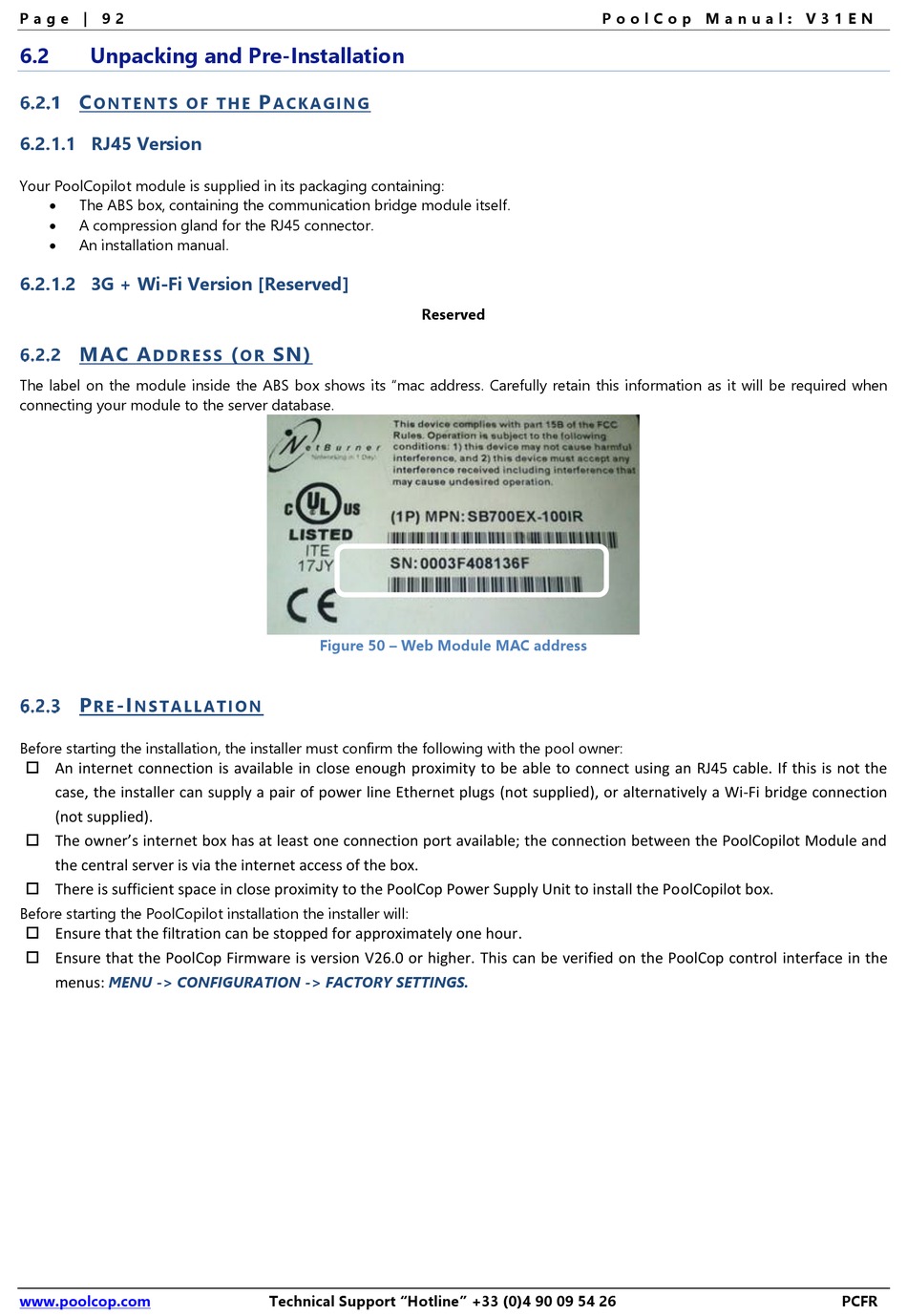

Figure 50 – Web Module MAC address
Technical Support "Hotline" +33 (0)4 90 09 54 26
Reserved
P o o l C o p M a n u a l : V 3 1 E N
PCFR
