Figure 42 - Additonal Relays; Figure 43 - Waste Valve Connexion; Connecting An Automatic Valve On Waste Line - PoolCop Installer And User Manual

P a g e | 4 6 P o o l C o p M a n u a l : V 3 1 E N
3.6.3.3 Relay Timer Programming
Each auxiliary relay can be programmed with one daily timer cycle.
Auxiliary relays can be slaved to run only if filtration is running (valve positions Filter and Bypass).
See 5.3 Auxiliaries Modes Menu for further information.
3.6.3.4
Additional Relay Cycles
If required for additional daily cycles, the same equipment can be connected via additional relays, to switch and control using
additional daily timer periods. Other Aux relays can be used wired in parallel, each providing an additional ON cycle per day.

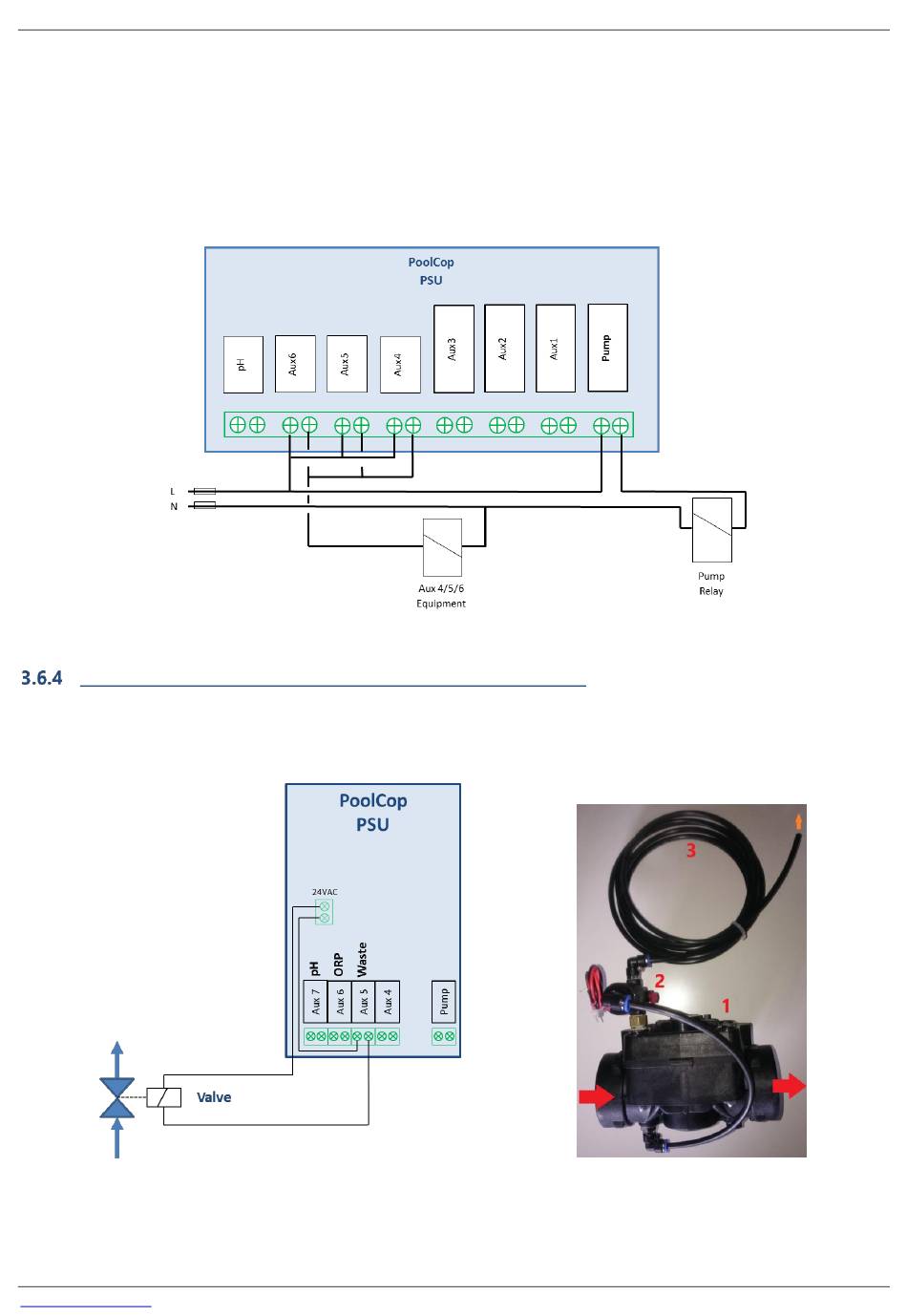

Figure 42 - Additonal Relays

C A V W L
O N N E C T I N G A N U T O M A T I C A L V E O N A S T E I N E
An external valve can be added to the waste line to avoid lost of water when the multiport valve is rotating. This can be especially
useful when the pump house is above the water line. The valve must be controlled via the AUX5 relay and must be appropriately
programmed in the 'Filter data" section.

Figure 43 - Waste valve connexion

Usually pilot solenoid valves are controlled with 24VAC which is available inside PoolCop PSU.
