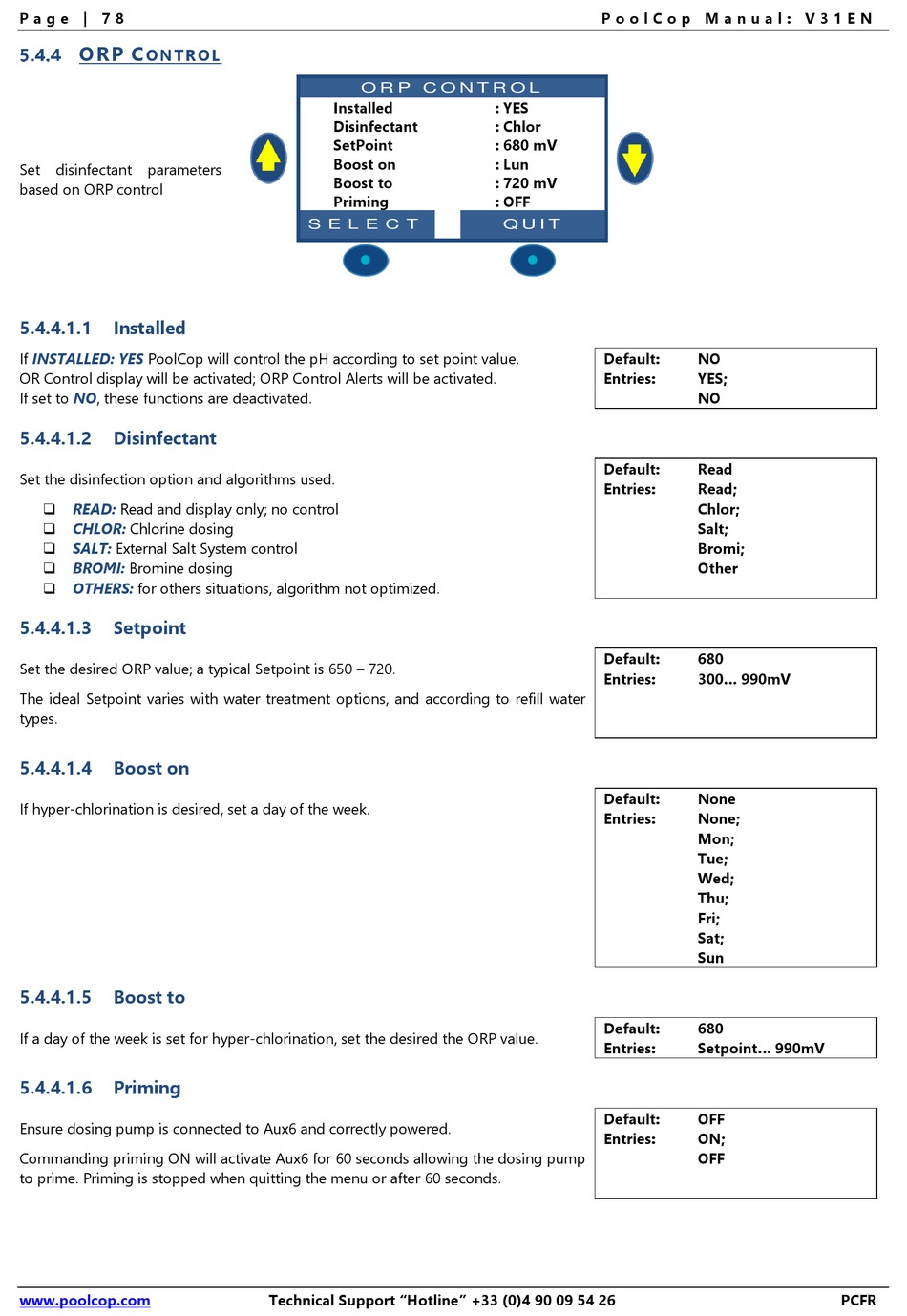

Orp Control - PoolCop Installer And User Manual

P a g e | 7 8
O RP C
O N T R O L
Set disinfectant parameters
based on ORP control
5.4.4.1.1 Installed
If INSTALLED: YES PoolCop will control the pH according to set point value.
OR Control display will be activated; ORP Control Alerts will be activated.
If set to NO, these functions are deactivated.
5.4.4.1.2 Disinfectant
Set the disinfection option and algorithms used.
READ: Read and display only; no control

CHLOR: Chlorine dosing

SALT: External Salt System control

BROMI: Bromine dosing

OTHERS: for others situations, algorithm not optimized.

5.4.4.1.3 Setpoint
Set the desired ORP value; a typical Setpoint is 650 – 720.
The ideal Setpoint varies with water treatment options, and according to refill water
types.
5.4.4.1.4 Boost on
If hyper-chlorination is desired, set a day of the week.
5.4.4.1.5 Boost to
If a day of the week is set for hyper-chlorination, set the desired the ORP value.
5.4.4.1.6 Priming
Ensure dosing pump is connected to Aux6 and correctly powered.
Commanding priming ON will activate Aux6 for 60 seconds allowing the dosing pump
to prime. Priming is stopped when quitting the menu or after 60 seconds.
www.poolcop.com
O R P C O N T R O L
Installed
Disinfectant
SetPoint
Boost on
Boost to
Priming
S E L E C T
Technical Support "Hotline" +33 (0)4 90 09 54 26
P o o l C o p M a n u a l : V 3 1 E N
: YES
: Chlor
: 680 mV
: Lun
: 720 mV
: OFF
Q U I T
Default:
Entries:
Default:
Entries:
Default:
Entries:
Default:
Entries:
Default:
Entries:
Default:
Entries:
NO
YES;
NO
Read
Read;
Chlor;
Salt;
Bromi;
Other
680
300... 990mV
None
None;
Mon;
Tue;
Wed;
Thu;
Fri;
Sat;
Sun
680
Setpoint... 990mV
OFF
ON;
OFF
