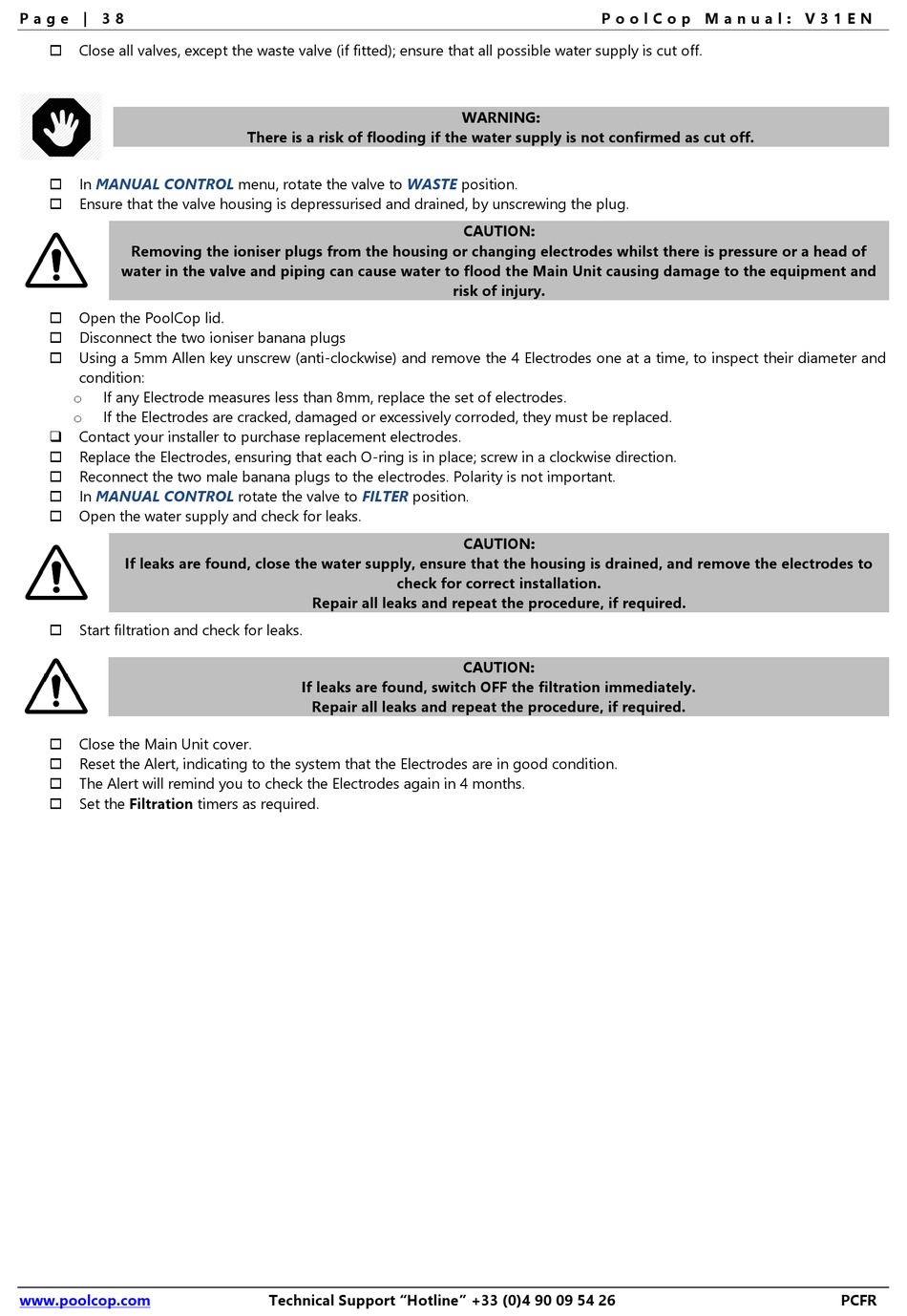

PoolCop Installer And User Manual page 38

P a g e | 3 8
Close all valves, except the waste valve (if fitted); ensure that all possible water supply is cut off.

In MANUAL CONTROL

Ensure that the valve housing is depressurised and drained, by unscrewing the plug.

Removing the ioniser plugs from the housing or changing electrodes whilst there is pressure or a head of
water in the valve and piping can cause water to flood the Main Unit causing damage to the equipment and
Open the PoolCop lid.

Disconnect the two ioniser banana plugs

Using a 5mm Allen key unscrew (anti-clockwise) and remove the 4 Electrodes one at a time, to inspect their diameter and

condition:
If any Electrode measures less than 8mm, replace the set of electrodes.
o
If the Electrodes are cracked, damaged or excessively corroded, they must be replaced.
o
Contact your installer to purchase replacement electrodes.

Replace the Electrodes, ensuring that each O-ring is in place; screw in a clockwise direction.

Reconnect the two male banana plugs to the electrodes. Polarity is not important.

In MANUAL CONTROL

Open the water supply and check for leaks.

If leaks are found, close the water supply, ensure that the housing is drained, and remove the electrodes to
Start filtration and check for leaks.

Close the Main Unit cover.

Reset the Alert, indicating to the system that the Electrodes are in good condition.

The Alert will remind you to check the Electrodes again in 4 months.

Set the Filtration timers as required.

www.poolcop.com
There is a risk of flooding if the water supply is not confirmed as cut off.
menu, rotate the valve to WASTE
rotate the valve to FILTER
check for correct installation.
Repair all leaks and repeat the procedure, if required.
If leaks are found, switch OFF the filtration immediately.
Repair all leaks and repeat the procedure, if required.
Technical Support "Hotline" +33 (0)4 90 09 54 26
WARNING:
position.
CAUTION:
risk of injury.
position.
CAUTION:
CAUTION:
