Figure 14 - Pentair Intelliflo Vsd With Intellicomm; Figure 15 - Pentair Superflo Vs; Connecting A Variable Speed Pump - PoolCop Installer And User Manual

P o o l C o p M a n u a l : V 3 1 E N P a g e | 2 5
C V S P
O N N E C T I N G A A R I A B L E P E E D U M P
See the VARIABLE SPEED PUMPS GUIDE downloadable on our internet website www.poolcop.com in RESOURCES /DOWNLOADS
section for compatibility, connection, control and programming.
3.4.3.1 Pentair IntelliFlo VSD (with IntelliComm drive)

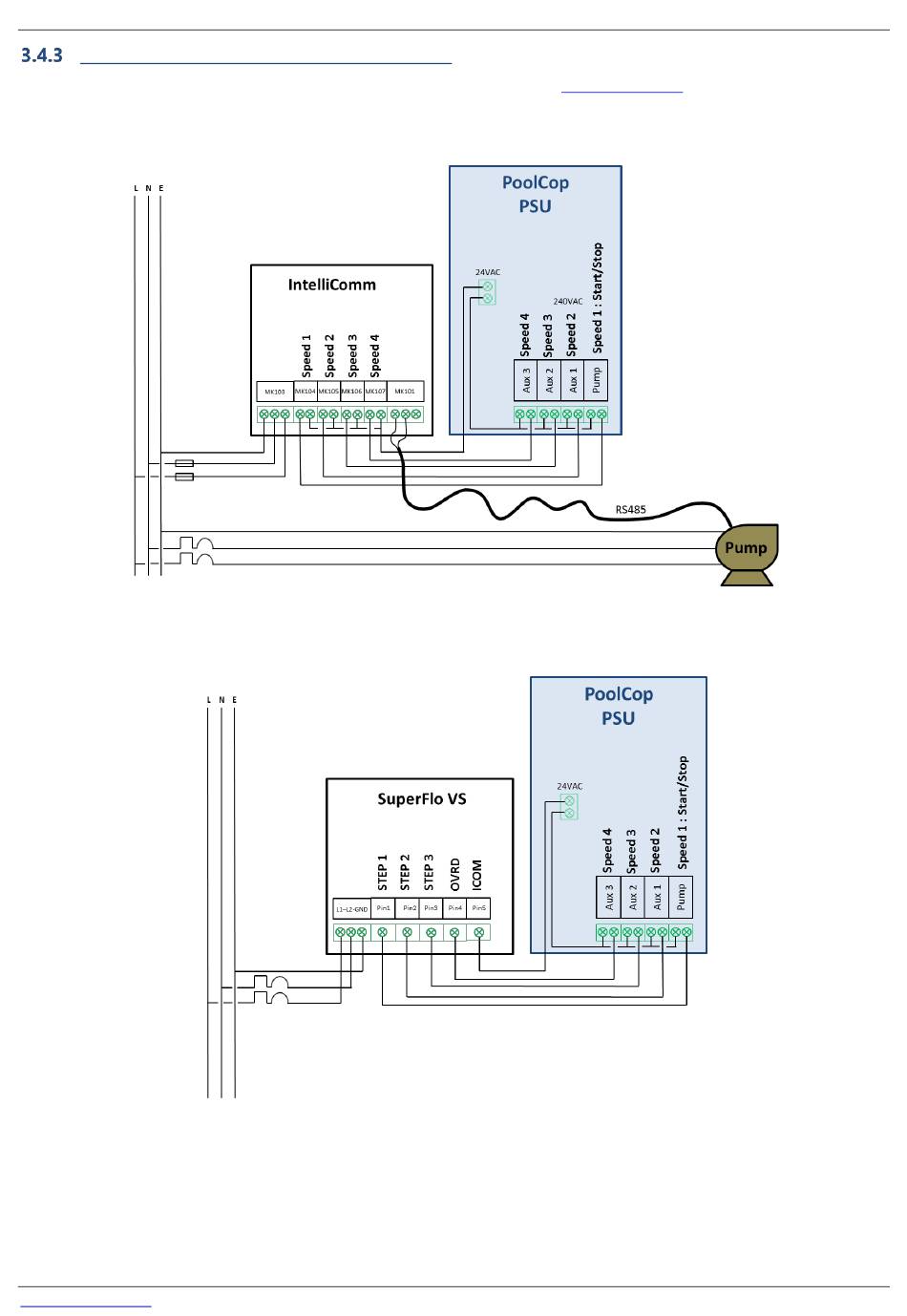

Figure 14 - Pentair IntelliFlo VSD with IntelliComm

3.4.3.2 Pentair SuperFlo VS

Figure 15 - Pentair SuperFlo VS
