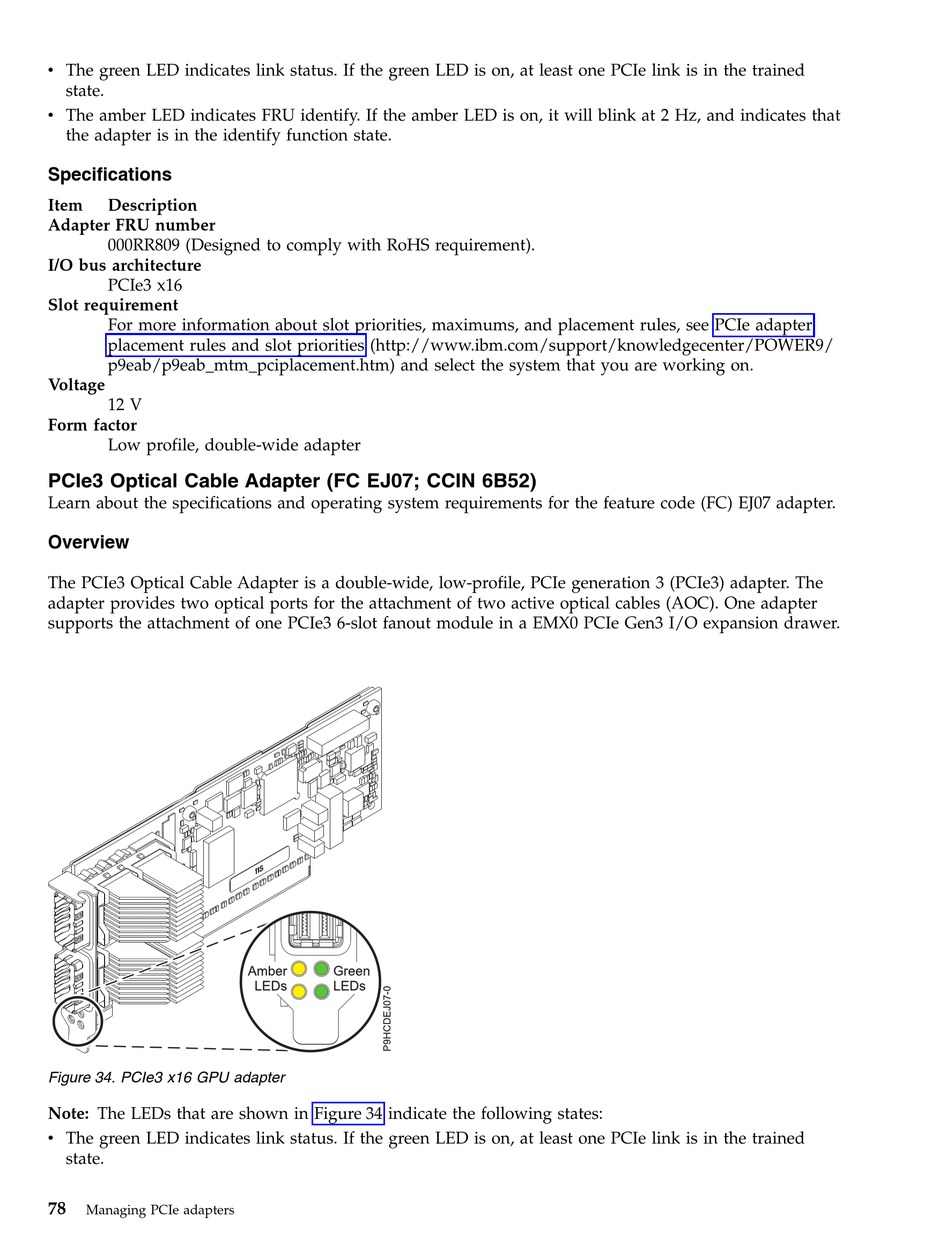

Pcie3 Optical Cable Adapter (Fc Ej07; Ccin 6B52) - IBM 74Y4064 Handbook

Managing pcie adapters for ibm power system l922 9008-22l; ibm power system s922 9009-22a; ibm power system h922 9223-22h; ibm power system s914 9009-41a; ibm power system s924 9009-42a; ibm power system h924 9223-42h; ibm emx0 pcie gen3 i/o expansion dra
Hide thumbs

Advertisement

v The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained
state.
v The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that
the adapter is in the identify function state.
Specifications
Item
Description
Adapter FRU number
000RR809 (Designed to comply with RoHS requirement).
I/O bus architecture
PCIe3 x16
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
12 V
Form factor
Low profile, double-wide adapter

PCIe3 Optical Cable Adapter (FC EJ07; CCIN 6B52)

Learn about the specifications and operating system requirements for the feature code (FC) EJ07 adapter.
Overview
The PCIe3 Optical Cable Adapter is a double-wide, low-profile, PCIe generation 3 (PCIe3) adapter. The
adapter provides two optical ports for the attachment of two active optical cables (AOC). One adapter
supports the attachment of one PCIe3 6-slot fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.
Figure 34. PCIe3 x16 GPU adapter
Note: The LEDs that are shown in Figure 34 indicate the following states:
v The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained
state.
78
Managing PCIe adapters
