PCIe LP POWER GXT145 Graphics Accelerator (FC 5269; CCIN 5269)

Learn about the features, requirements, installation notes, and troubleshooting tips for the PCIe LP
POWER GXT145 Graphics Accelerator adapter.
Overview
The PCIe LP POWER GXT145 Graphics Accelerator adapter is a versatile 2D graphics accelerator and
enhances the system unit video. This adapter supports both analog and digital monitors. The adapter
requires a PCI Express slot. A short converter cable is included which adapts the 28-pin port on the
adapter to dual DVI-I (analog/digital video) connectors. The adapter has no hardware switches to set.
Mode selection is made through the software. Figure 3 shows the adapter connector and converter cable.

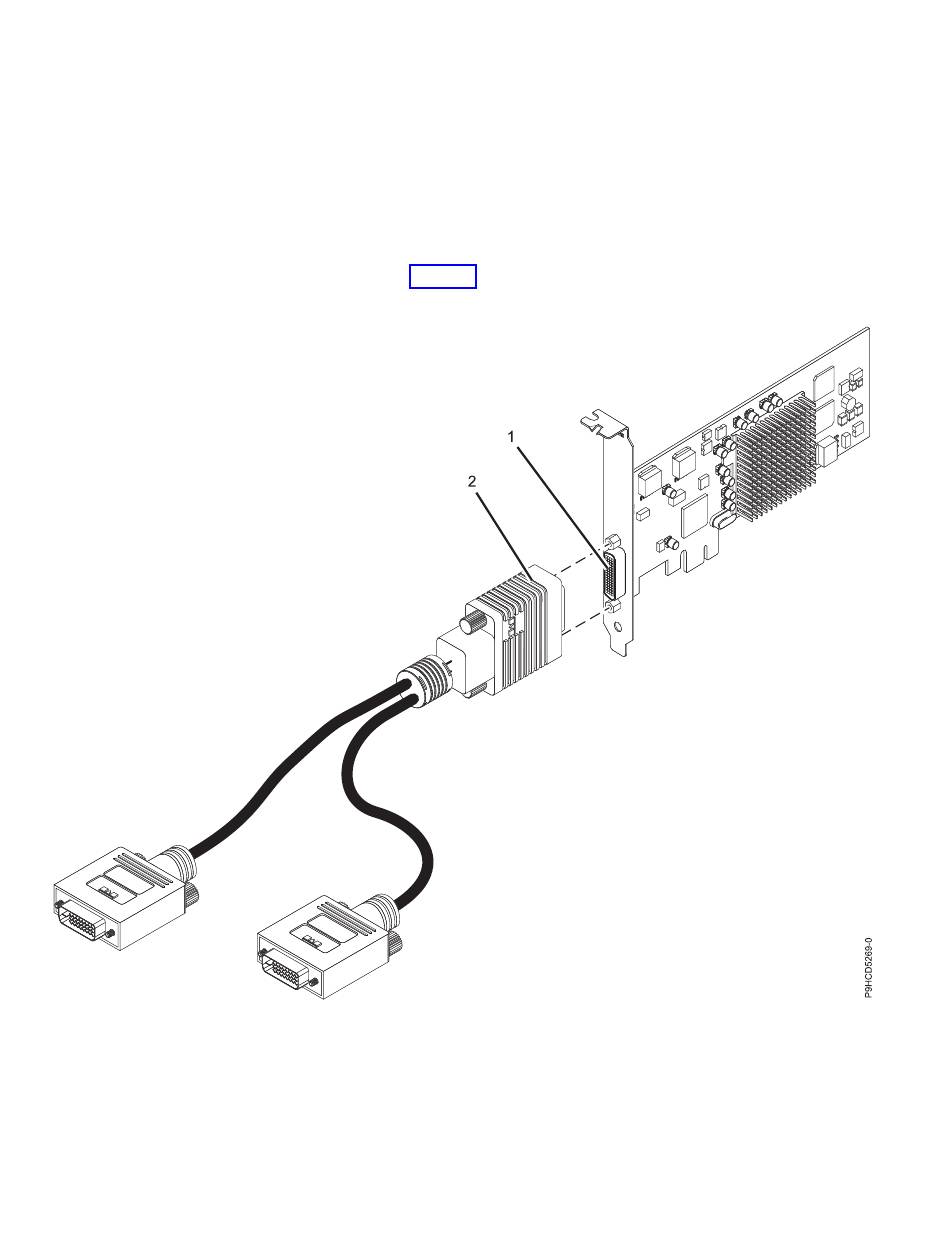

Figure 3. PCIe LP POWER GXT145 Graphics Accelerator adapter and converter cable
1
DVI connector (28 pin), analog, or digital
2
Converter cable with dual DVI-I (analog/digital video) connectors
If your monitor has a DVI connector, connect it directly to the main DVI connector (labeled 1/3) of your
converter cable.
16
Managing PCIe adapters
