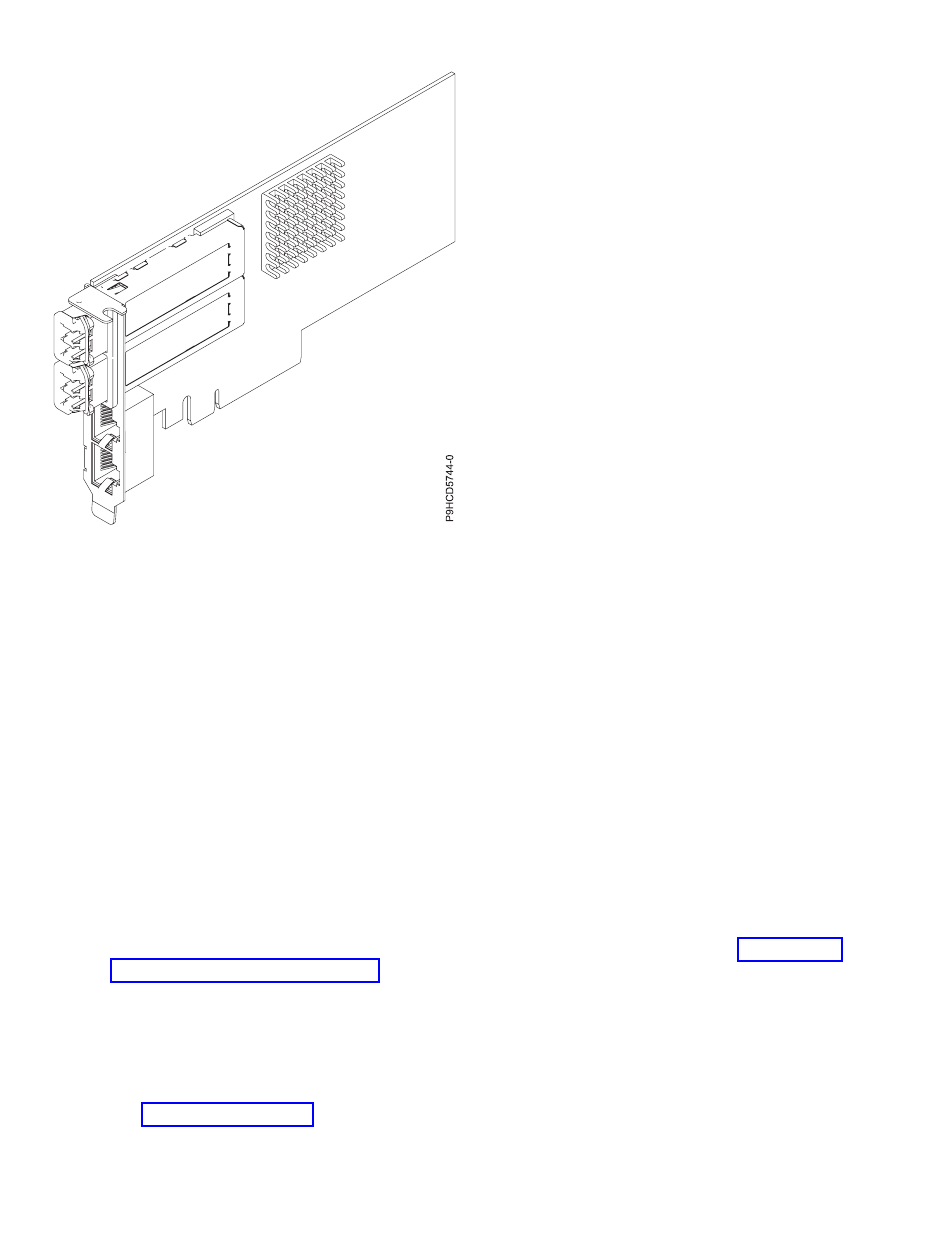

Figure 76. PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter
Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX
operating systems.
Specifications
Item
Description
Adapter FRU number
00E2715 (Designed to comply with RoHS requirement)
Low-profile tailstock part number: 00E2720
Wrap plug FRU number
74Y7010 (Twinax wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: Wrap plugs are not included with the card and cannot be purchased from IBM.
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, regular-height tailstock, low-profile capable
Cables
See "Cables" on page 171 for details.
170
Managing PCIe adapters
®
®
