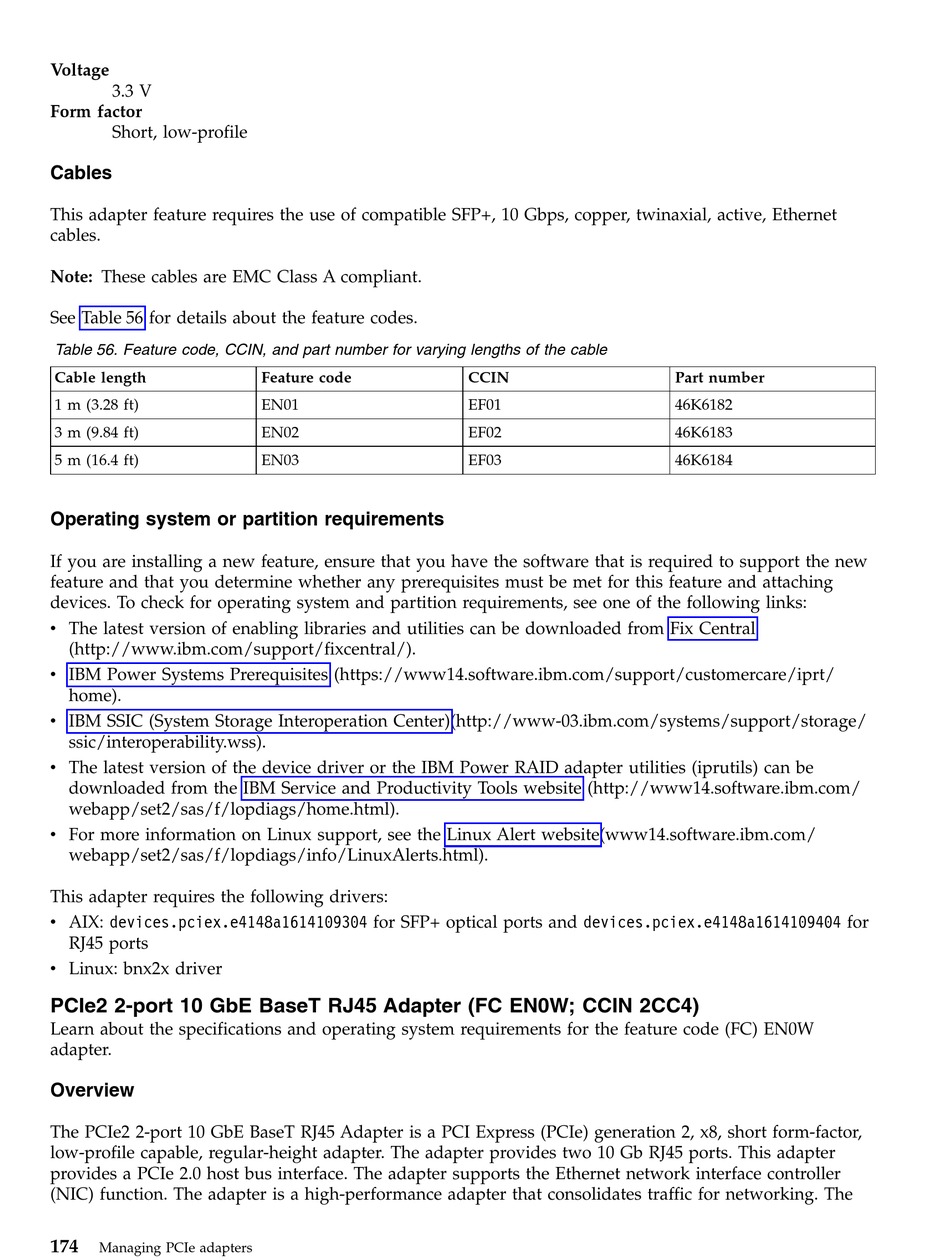

Voltage
3.3 V
Form factor
Short, low-profile
Cables
This adapter feature requires the use of compatible SFP+, 10 Gbps, copper, twinaxial, active, Ethernet
cables.
Note: These cables are EMC Class A compliant.
See Table 56 for details about the feature codes.
Table 56. Feature code, CCIN, and part number for varying lengths of the cable
Cable length
1 m (3.28 ft)
3 m (9.84 ft)
5 m (16.4 ft)
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).
This adapter requires the following drivers:
v AIX: devices.pciex.e4148a1614109304 for SFP+ optical ports and devices.pciex.e4148a1614109404 for
RJ45 ports
v Linux: bnx2x driver

PCIe2 2-port 10 GbE BaseT RJ45 Adapter (FC EN0W; CCIN 2CC4)

Learn about the specifications and operating system requirements for the feature code (FC) EN0W
adapter.
Overview
The PCIe2 2-port 10 GbE BaseT RJ45 Adapter is a PCI Express (PCIe) generation 2, x8, short form-factor,
low-profile capable, regular-height adapter. The adapter provides two 10 Gb RJ45 ports. This adapter
provides a PCIe 2.0 host bus interface. The adapter supports the Ethernet network interface controller
(NIC) function. The adapter is a high-performance adapter that consolidates traffic for networking. The
174
Managing PCIe adapters
Feature code
EN01
EN02
EN03
CCIN
EF01
EF02
EF03
Part number
46K6182
46K6183
46K6184
