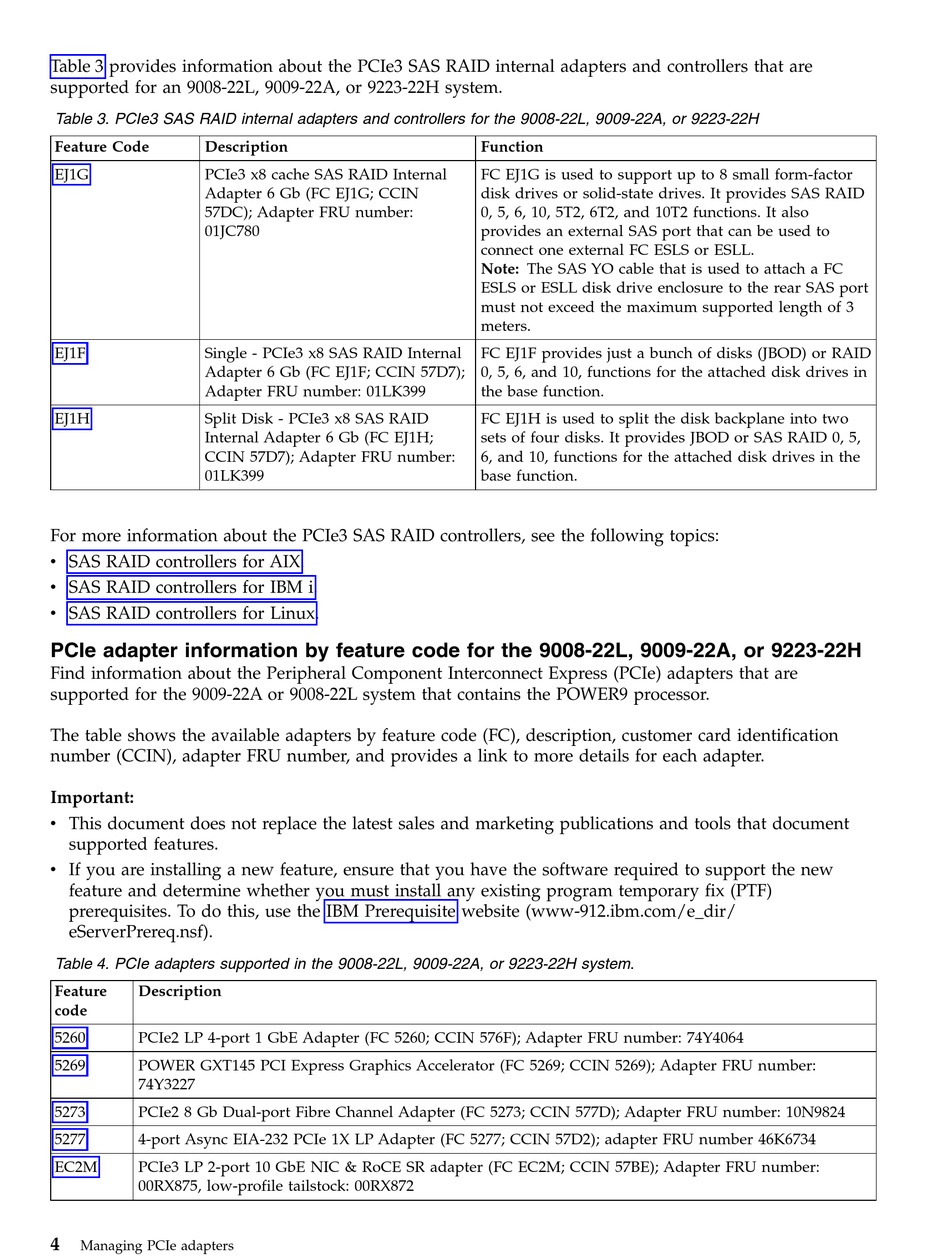

Table 3 provides information about the PCIe3 SAS RAID internal adapters and controllers that are
supported for an 9008-22L, 9009-22A, or 9223-22H system.
Table 3. PCIe3 SAS RAID internal adapters and controllers for the 9008-22L, 9009-22A, or 9223-22H
Feature Code
Description
EJ1G
PCIe3 x8 cache SAS RAID Internal
Adapter 6 Gb (FC EJ1G; CCIN
57DC); Adapter FRU number:
01JC780
EJ1F
Single - PCIe3 x8 SAS RAID Internal
Adapter 6 Gb (FC EJ1F; CCIN 57D7);
Adapter FRU number: 01LK399
EJ1H
Split Disk - PCIe3 x8 SAS RAID
Internal Adapter 6 Gb (FC EJ1H;
CCIN 57D7); Adapter FRU number:
01LK399
For more information about the PCIe3 SAS RAID controllers, see the following topics:
v SAS RAID controllers for AIX.
v SAS RAID controllers for IBM i.
v SAS RAID controllers for Linux.

PCIe adapter information by feature code for the 9008-22L, 9009-22A, or 9223-22H

Find information about the Peripheral Component Interconnect Express (PCIe) adapters that are
supported for the 9009-22A or 9008-22L system that contains the POWER9 processor.
The table shows the available adapters by feature code (FC), description, customer card identification
number (CCIN), adapter FRU number, and provides a link to more details for each adapter.
Important:
v This document does not replace the latest sales and marketing publications and tools that document
supported features.
v If you are installing a new feature, ensure that you have the software required to support the new
feature and determine whether you must install any existing program temporary fix (PTF)
prerequisites. To do this, use the IBM Prerequisite website (www-912.ibm.com/e_dir/
eServerPrereq.nsf).
Table 4. PCIe adapters supported in the 9008-22L, 9009-22A, or 9223-22H system.
Feature
Description
code
5260
PCIe2 LP 4-port 1 GbE Adapter (FC 5260; CCIN 576F); Adapter FRU number: 74Y4064
5269
POWER GXT145 PCI Express Graphics Accelerator (FC 5269; CCIN 5269); Adapter FRU number:
74Y3227
5273
PCIe2 8 Gb Dual-port Fibre Channel Adapter (FC 5273; CCIN 577D); Adapter FRU number: 10N9824
5277
4-port Async EIA-232 PCIe 1X LP Adapter (FC 5277; CCIN 57D2); adapter FRU number 46K6734
EC2M
PCIe3 LP 2-port 10 GbE NIC & RoCE SR adapter (FC EC2M; CCIN 57BE); Adapter FRU number:
00RX875, low-profile tailstock: 00RX872
4
Managing PCIe adapters
Function
FC EJ1G is used to support up to 8 small form-factor
disk drives or solid-state drives. It provides SAS RAID
0, 5, 6, 10, 5T2, 6T2, and 10T2 functions. It also
provides an external SAS port that can be used to
connect one external FC ESLS or ESLL.
Note: The SAS YO cable that is used to attach a FC
ESLS or ESLL disk drive enclosure to the rear SAS port
must not exceed the maximum supported length of 3
meters.
FC EJ1F provides just a bunch of disks (JBOD) or RAID
0, 5, 6, and 10, functions for the attached disk drives in
the base function.
FC EJ1H is used to split the disk backplane into two
sets of four disks. It provides JBOD or SAS RAID 0, 5,
6, and 10, functions for the attached disk drives in the
base function.
