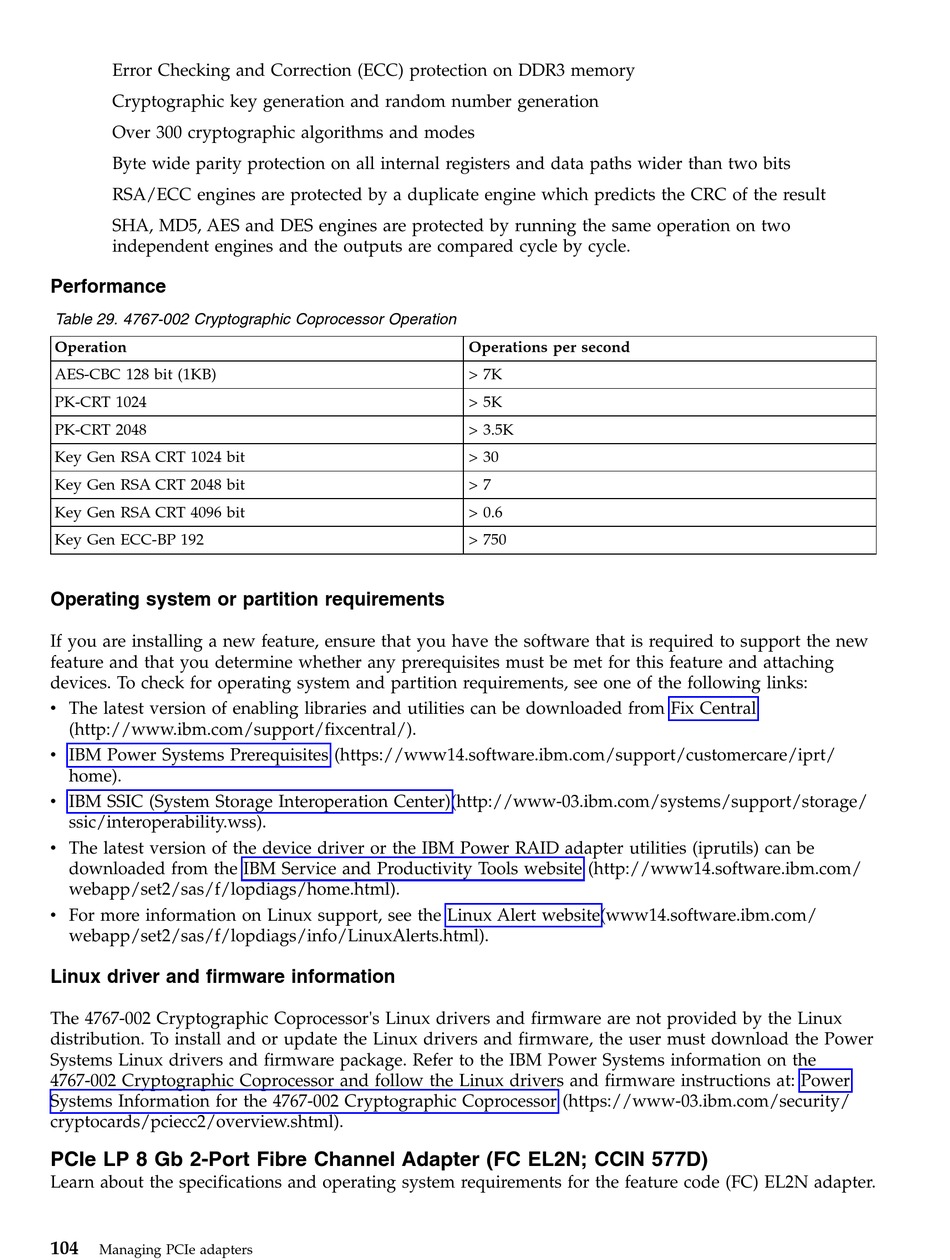

Error Checking and Correction (ECC) protection on DDR3 memory
Cryptographic key generation and random number generation
Over 300 cryptographic algorithms and modes
Byte wide parity protection on all internal registers and data paths wider than two bits
RSA/ECC engines are protected by a duplicate engine which predicts the CRC of the result
SHA, MD5, AES and DES engines are protected by running the same operation on two
independent engines and the outputs are compared cycle by cycle.
Performance
Table 29. 4767-002 Cryptographic Coprocessor Operation
Operation
AES-CBC 128 bit (1KB)
PK-CRT 1024
PK-CRT 2048
Key Gen RSA CRT 1024 bit
Key Gen RSA CRT 2048 bit
Key Gen RSA CRT 4096 bit
Key Gen ECC-BP 192
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).
Linux driver and firmware information
The 4767-002 Cryptographic Coprocessor's Linux drivers and firmware are not provided by the Linux
distribution. To install and or update the Linux drivers and firmware, the user must download the Power
Systems Linux drivers and firmware package. Refer to the IBM Power Systems information on the
4767-002 Cryptographic Coprocessor and follow the Linux drivers and firmware instructions at: Power
Systems Information for the 4767-002 Cryptographic Coprocessor (https://www-03.ibm.com/security/
cryptocards/pciecc2/overview.shtml).

PCIe LP 8 Gb 2-Port Fibre Channel Adapter (FC EL2N; CCIN 577D)

Learn about the specifications and operating system requirements for the feature code (FC) EL2N adapter.
104
Managing PCIe adapters
Operations per second
> 7K
> 5K
> 3.5K
> 30
> 7
> 0.6
> 750
