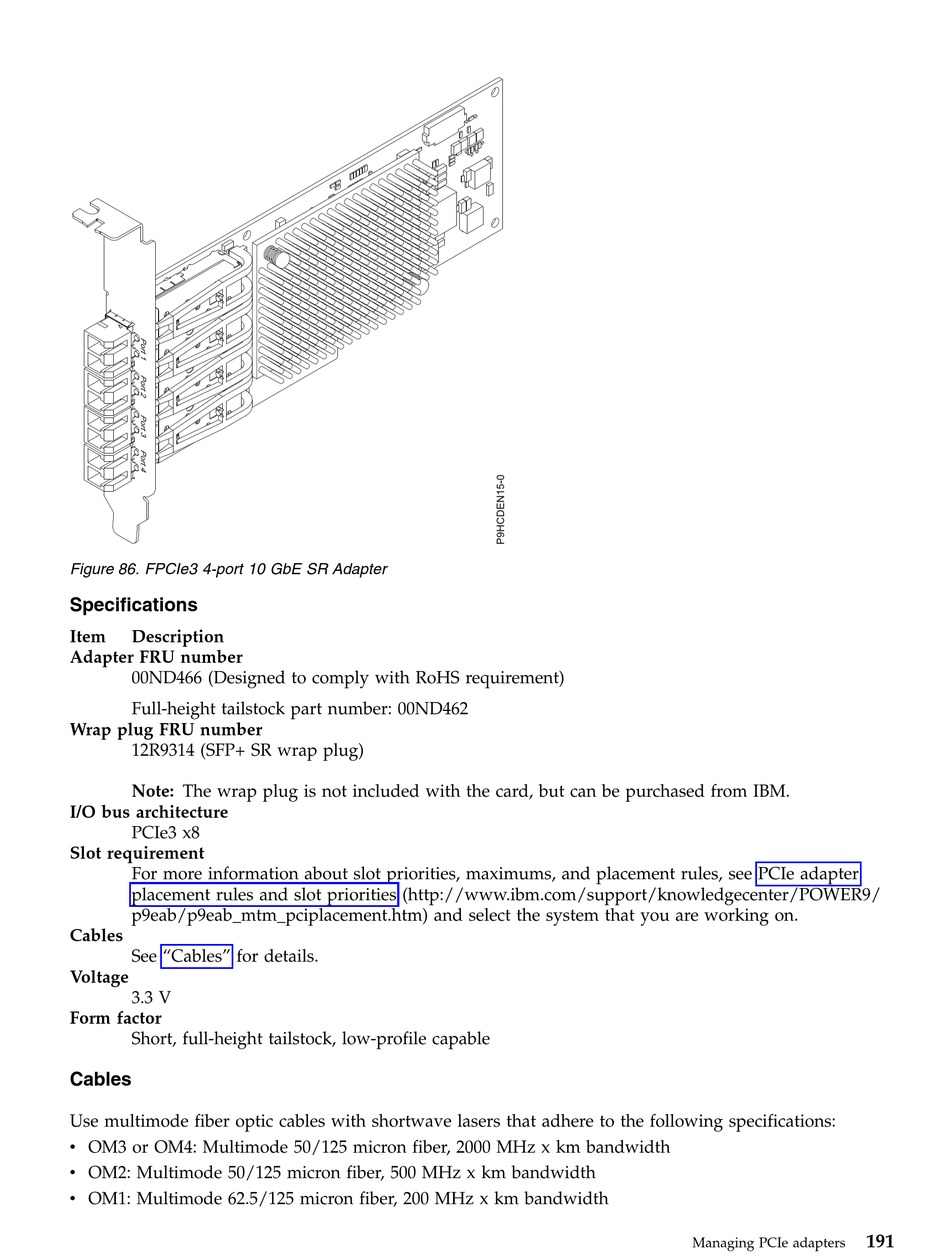

Figure 86. FPCIe3 4-port 10 GbE SR Adapter
Specifications
Item
Description
Adapter FRU number
00ND466 (Designed to comply with RoHS requirement)
Full-height tailstock part number: 00ND462
Wrap plug FRU number
12R9314 (SFP+ SR wrap plug)
Note: The wrap plug is not included with the card, but can be purchased from IBM.
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Cables
See "Cables" for details.
Voltage
3.3 V
Form factor
Short, full-height tailstock, low-profile capable
Cables
Use multimode fiber optic cables with shortwave lasers that adhere to the following specifications:
v OM3 or OM4: Multimode 50/125 micron fiber, 2000 MHz x km bandwidth
v OM2: Multimode 50/125 micron fiber, 500 MHz x km bandwidth
v OM1: Multimode 62.5/125 micron fiber, 200 MHz x km bandwidth
191
Managing PCIe adapters
