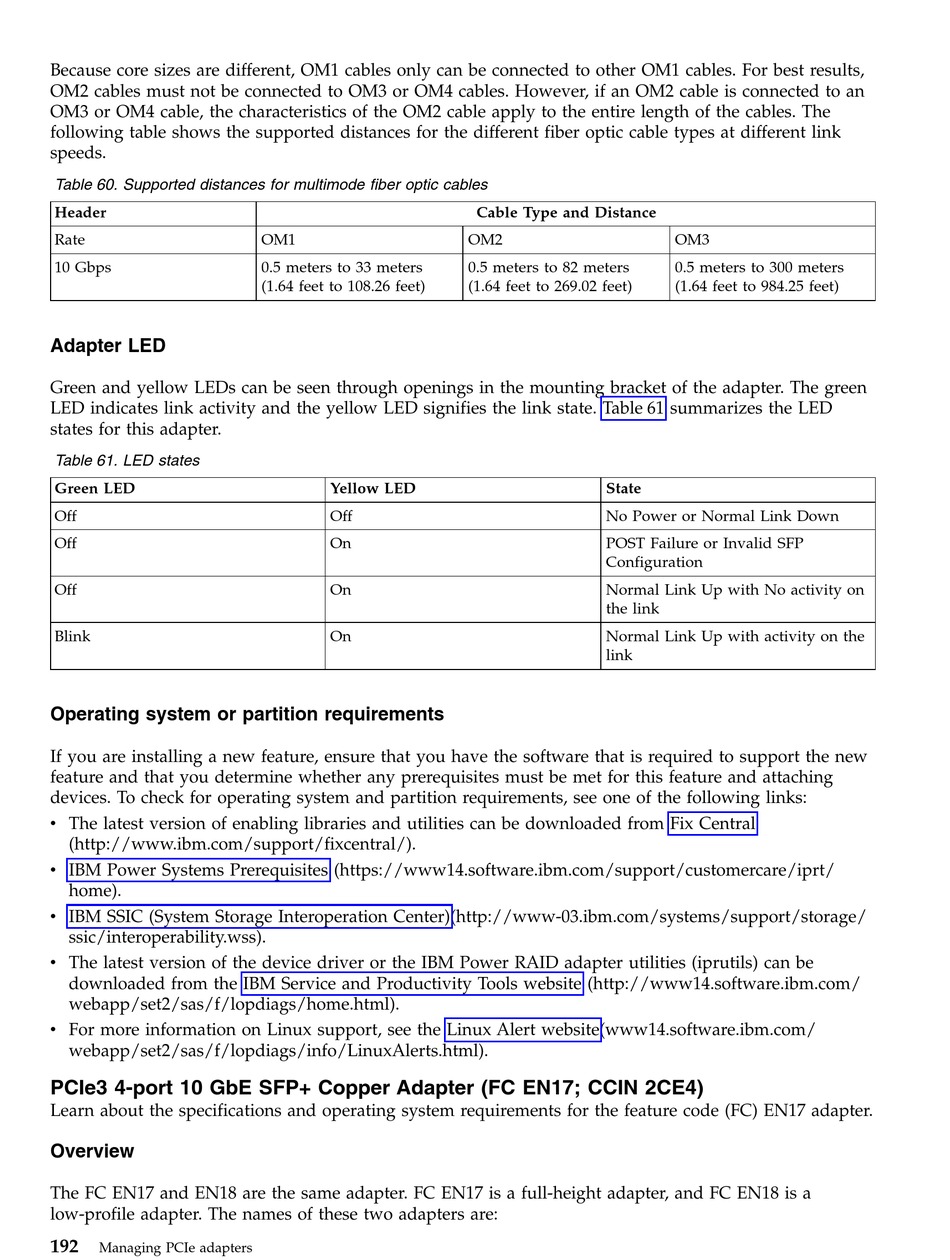

Because core sizes are different, OM1 cables only can be connected to other OM1 cables. For best results,
OM2 cables must not be connected to OM3 or OM4 cables. However, if an OM2 cable is connected to an
OM3 or OM4 cable, the characteristics of the OM2 cable apply to the entire length of the cables. The
following table shows the supported distances for the different fiber optic cable types at different link
speeds.
Table 60. Supported distances for multimode fiber optic cables
Header
Rate
10 Gbps
Adapter LED
Green and yellow LEDs can be seen through openings in the mounting bracket of the adapter. The green
LED indicates link activity and the yellow LED signifies the link state. Table 61 summarizes the LED
states for this adapter.
Table 61. LED states
Green LED
Off
Off
Off
Blink
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).

PCIe3 4-port 10 GbE SFP+ Copper Adapter (FC EN17; CCIN 2CE4)

Learn about the specifications and operating system requirements for the feature code (FC) EN17 adapter.
Overview
The FC EN17 and EN18 are the same adapter. FC EN17 is a full-height adapter, and FC EN18 is a
low-profile adapter. The names of these two adapters are:
192
Managing PCIe adapters
OM1
0.5 meters to 33 meters
(1.64 feet to 108.26 feet)
Yellow LED
Off
On
On
On
Cable Type and Distance
OM2
0.5 meters to 82 meters
(1.64 feet to 269.02 feet)
State
No Power or Normal Link Down
POST Failure or Invalid SFP
Configuration
Normal Link Up with No activity on
the link
Normal Link Up with activity on the
link
OM3
0.5 meters to 300 meters
(1.64 feet to 984.25 feet)
