v If you need to lay the device down while it is out of the antistatic bag, lay it on the antistatic bag.
Before you pick it up again, touch the antistatic bag and the metal frame of the system at the same
time.
v Handle the devices carefully to prevent permanent damage.

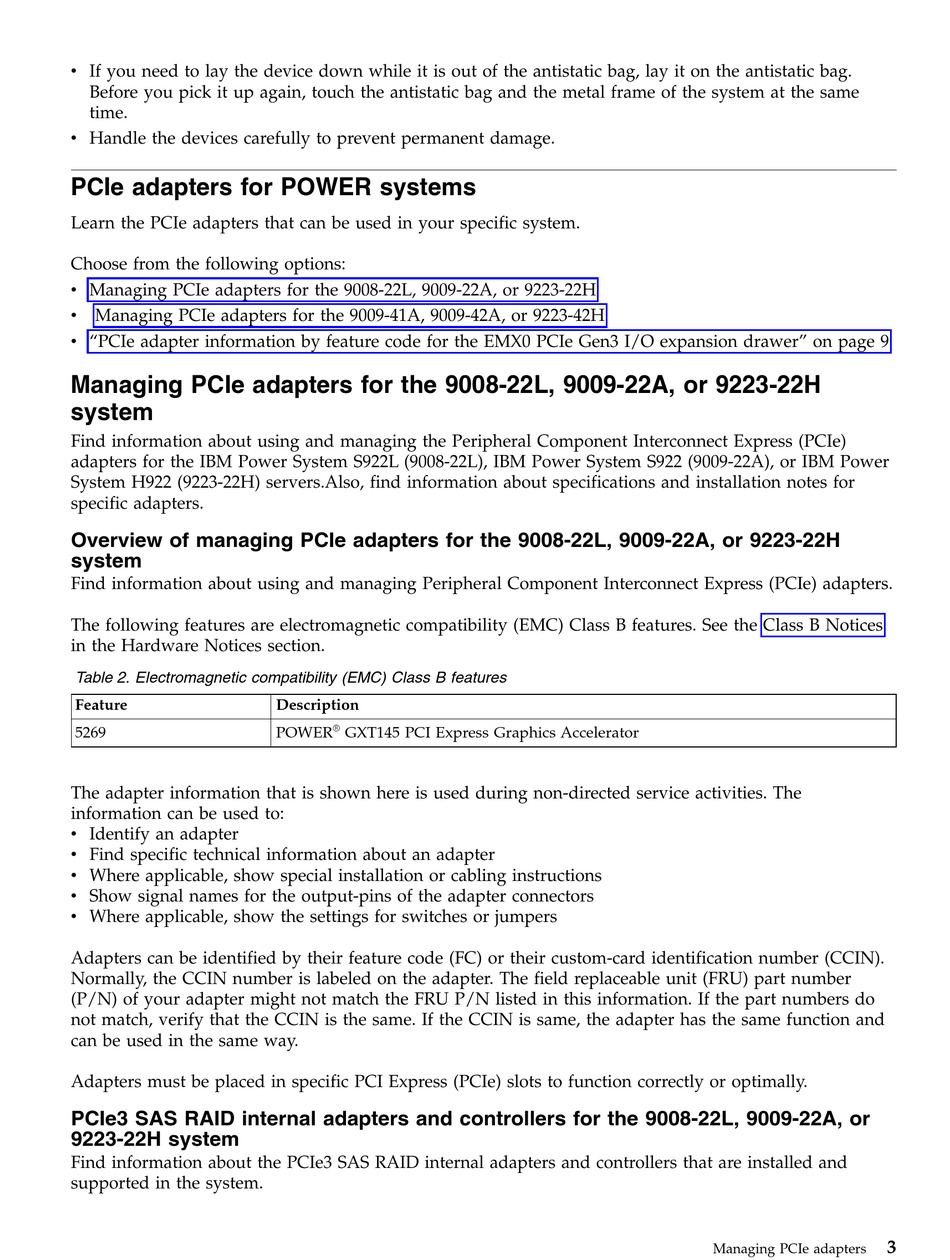

PCIe adapters for POWER systems

Learn the PCIe adapters that can be used in your specific system.
Choose from the following options:
v Managing PCIe adapters for the 9008-22L, 9009-22A, or 9223-22H
v
Managing PCIe adapters for the 9009-41A, 9009-42A, or 9223-42H
v "PCIe adapter information by feature code for the EMX0 PCIe Gen3 I/O expansion drawer" on page 9
Managing PCIe adapters for the 9008-22L, 9009-22A, or 9223-22H
system
Find information about using and managing the Peripheral Component Interconnect Express (PCIe)
adapters for the IBM Power System S922L (9008-22L), IBM Power System S922 (9009-22A), or IBM Power
System H922 (9223-22H) servers.Also, find information about specifications and installation notes for
specific adapters.
Overview of managing PCIe adapters for the 9008-22L, 9009-22A, or 9223-22H
system
Find information about using and managing Peripheral Component Interconnect Express (PCIe) adapters.
The following features are electromagnetic compatibility (EMC) Class B features. See the Class B Notices
in the Hardware Notices section.
Table 2. Electromagnetic compatibility (EMC) Class B features
Feature
5269
The adapter information that is shown here is used during non-directed service activities. The
information can be used to:
v Identify an adapter
v Find specific technical information about an adapter
v Where applicable, show special installation or cabling instructions
v Show signal names for the output-pins of the adapter connectors
v Where applicable, show the settings for switches or jumpers
Adapters can be identified by their feature code (FC) or their custom-card identification number (CCIN).
Normally, the CCIN number is labeled on the adapter. The field replaceable unit (FRU) part number
(P/N) of your adapter might not match the FRU P/N listed in this information. If the part numbers do
not match, verify that the CCIN is the same. If the CCIN is same, the adapter has the same function and
can be used in the same way.
Adapters must be placed in specific PCI Express (PCIe) slots to function correctly or optimally.
PCIe3 SAS RAID internal adapters and controllers for the 9008-22L, 9009-22A, or
9223-22H system
Find information about the PCIe3 SAS RAID internal adapters and controllers that are installed and
supported in the system.
Description
®
POWER
GXT145 PCI Express Graphics Accelerator
3
Managing PCIe adapters
