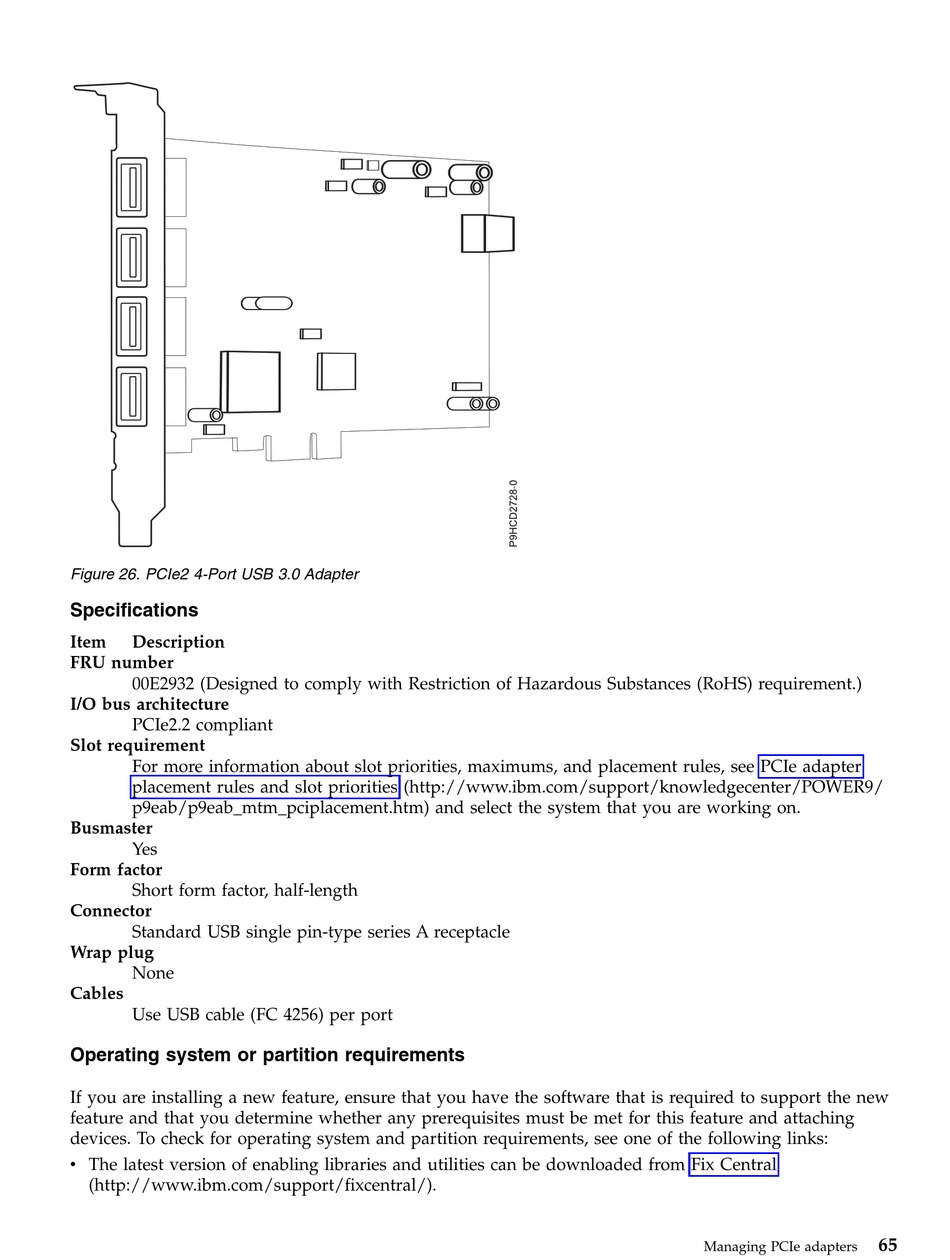

Figure 26. PCIe2 4-Port USB 3.0 Adapter
Specifications
Item
Description
FRU number
00E2932 (Designed to comply with Restriction of Hazardous Substances (RoHS) requirement.)
I/O bus architecture
PCIe2.2 compliant
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Busmaster
Yes
Form factor
Short form factor, half-length
Connector
Standard USB single pin-type series A receptacle
Wrap plug
None
Cables
Use USB cable (FC 4256) per port
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
65
Managing PCIe adapters
