IBM 74Y4064 Handbook page 53

Managing pcie adapters for ibm power system l922 9008-22l; ibm power system s922 9009-22a; ibm power system h922 9223-22h; ibm power system s914 9009-41a; ibm power system s924 9009-42a; ibm power system h924 9223-42h; ibm emx0 pcie gen3 i/o expansion dra
Hide thumbs

Advertisement

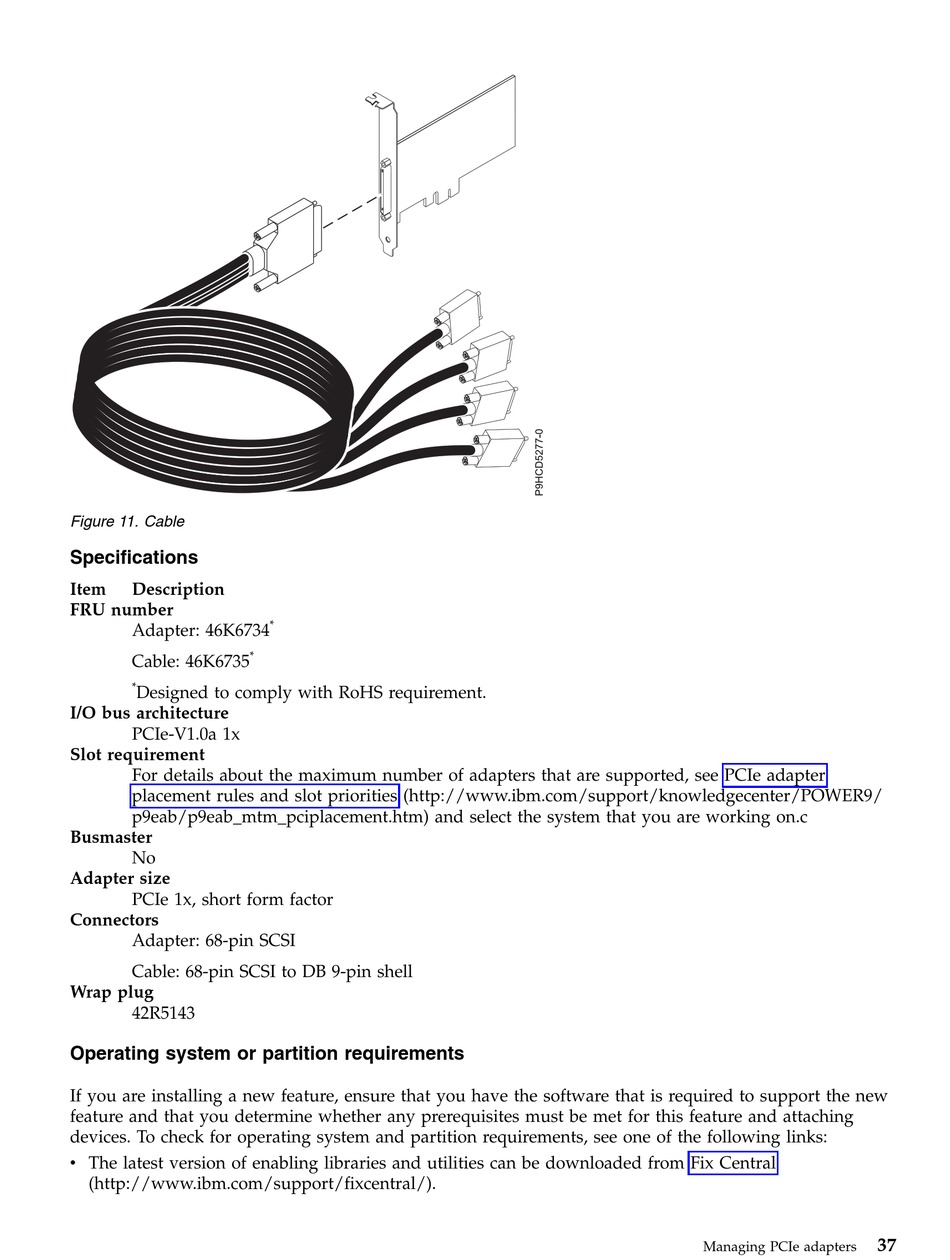

Figure 11. Cable
Specifications
Item
Description
FRU number
Adapter: 46K6734
Cable: 46K6735
*
Designed to comply with RoHS requirement.
I/O bus architecture
PCIe-V1.0a 1x
Slot requirement
For details about the maximum number of adapters that are supported, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.c
Busmaster
No
Adapter size
PCIe 1x, short form factor
Connectors
Adapter: 68-pin SCSI
Cable: 68-pin SCSI to DB 9-pin shell
Wrap plug
42R5143
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
*
*
37
