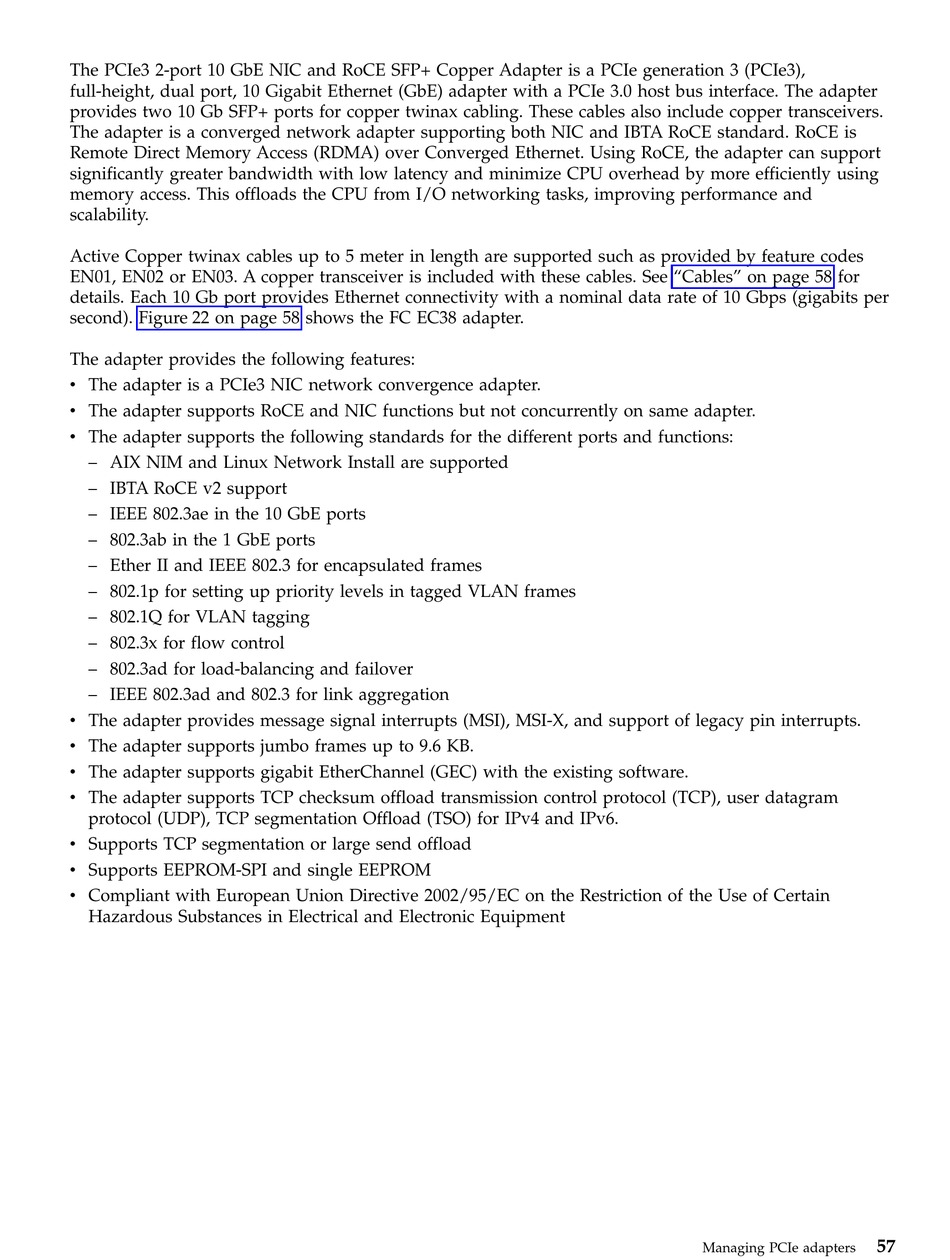

The PCIe3 2-port 10 GbE NIC and RoCE SFP+ Copper Adapter is a PCIe generation 3 (PCIe3),
full-height, dual port, 10 Gigabit Ethernet (GbE) adapter with a PCIe 3.0 host bus interface. The adapter
provides two 10 Gb SFP+ ports for copper twinax cabling. These cables also include copper transceivers.
The adapter is a converged network adapter supporting both NIC and IBTA RoCE standard. RoCE is
Remote Direct Memory Access (RDMA) over Converged Ethernet. Using RoCE, the adapter can support
significantly greater bandwidth with low latency and minimize CPU overhead by more efficiently using
memory access. This offloads the CPU from I/O networking tasks, improving performance and
scalability.
Active Copper twinax cables up to 5 meter in length are supported such as provided by feature codes
EN01, EN02 or EN03. A copper transceiver is included with these cables. See "Cables" on page 58 for
details. Each 10 Gb port provides Ethernet connectivity with a nominal data rate of 10 Gbps (gigabits per
second). Figure 22 on page 58 shows the FC EC38 adapter.
The adapter provides the following features:
v The adapter is a PCIe3 NIC network convergence adapter.
v The adapter supports RoCE and NIC functions but not concurrently on same adapter.
v The adapter supports the following standards for the different ports and functions:
– AIX NIM and Linux Network Install are supported
– IBTA RoCE v2 support
– IEEE 802.3ae in the 10 GbE ports
– 802.3ab in the 1 GbE ports
– Ether II and IEEE 802.3 for encapsulated frames
– 802.1p for setting up priority levels in tagged VLAN frames
– 802.1Q for VLAN tagging
– 802.3x for flow control
– 802.3ad for load-balancing and failover
– IEEE 802.3ad and 802.3 for link aggregation
v The adapter provides message signal interrupts (MSI), MSI-X, and support of legacy pin interrupts.
v The adapter supports jumbo frames up to 9.6 KB.
v The adapter supports gigabit EtherChannel (GEC) with the existing software.
v The adapter supports TCP checksum offload transmission control protocol (TCP), user datagram
protocol (UDP), TCP segmentation Offload (TSO) for IPv4 and IPv6.
v Supports TCP segmentation or large send offload
v Supports EEPROM-SPI and single EEPROM
v Compliant with European Union Directive 2002/95/EC on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment
