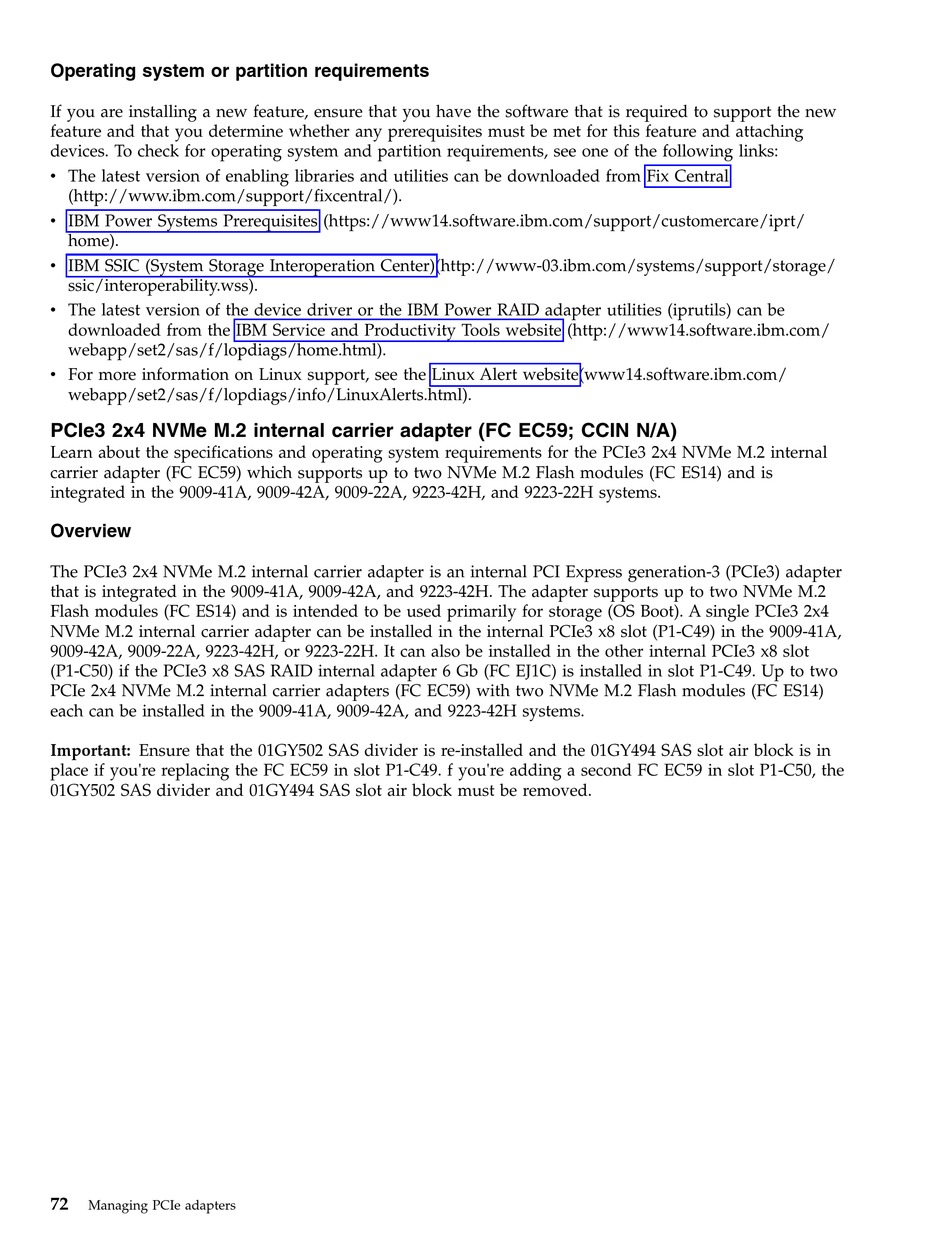

Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
v The latest version of the device driver or the IBM Power RAID adapter utilities (iprutils) can be
downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/home.html).
v For more information on Linux support, see the Linux Alert website(www14.software.ibm.com/
webapp/set2/sas/f/lopdiags/info/LinuxAlerts.html).

PCIe3 2x4 NVMe M.2 internal carrier adapter (FC EC59; CCIN N/A)

Learn about the specifications and operating system requirements for the PCIe3 2x4 NVMe M.2 internal
carrier adapter (FC EC59) which supports up to two NVMe M.2 Flash modules (FC ES14) and is
integrated in the 9009-41A, 9009-42A, 9009-22A, 9223-42H, and 9223-22H systems.
Overview
The PCIe3 2x4 NVMe M.2 internal carrier adapter is an internal PCI Express generation-3 (PCIe3) adapter
that is integrated in the 9009-41A, 9009-42A, and 9223-42H. The adapter supports up to two NVMe M.2
Flash modules (FC ES14) and is intended to be used primarily for storage (OS Boot). A single PCIe3 2x4
NVMe M.2 internal carrier adapter can be installed in the internal PCIe3 x8 slot (P1-C49) in the 9009-41A,
9009-42A, 9009-22A, 9223-42H, or 9223-22H. It can also be installed in the other internal PCIe3 x8 slot
(P1-C50) if the PCIe3 x8 SAS RAID internal adapter 6 Gb (FC EJ1C) is installed in slot P1-C49. Up to two
PCIe 2x4 NVMe M.2 internal carrier adapters (FC EC59) with two NVMe M.2 Flash modules (FC ES14)
each can be installed in the 9009-41A, 9009-42A, and 9223-42H systems.
Important: Ensure that the 01GY502 SAS divider is re-installed and the 01GY494 SAS slot air block is in
place if you're replacing the FC EC59 in slot P1-C49. f you're adding a second FC EC59 in slot P1-C50, the
01GY502 SAS divider and 01GY494 SAS slot air block must be removed.
72
Managing PCIe adapters
