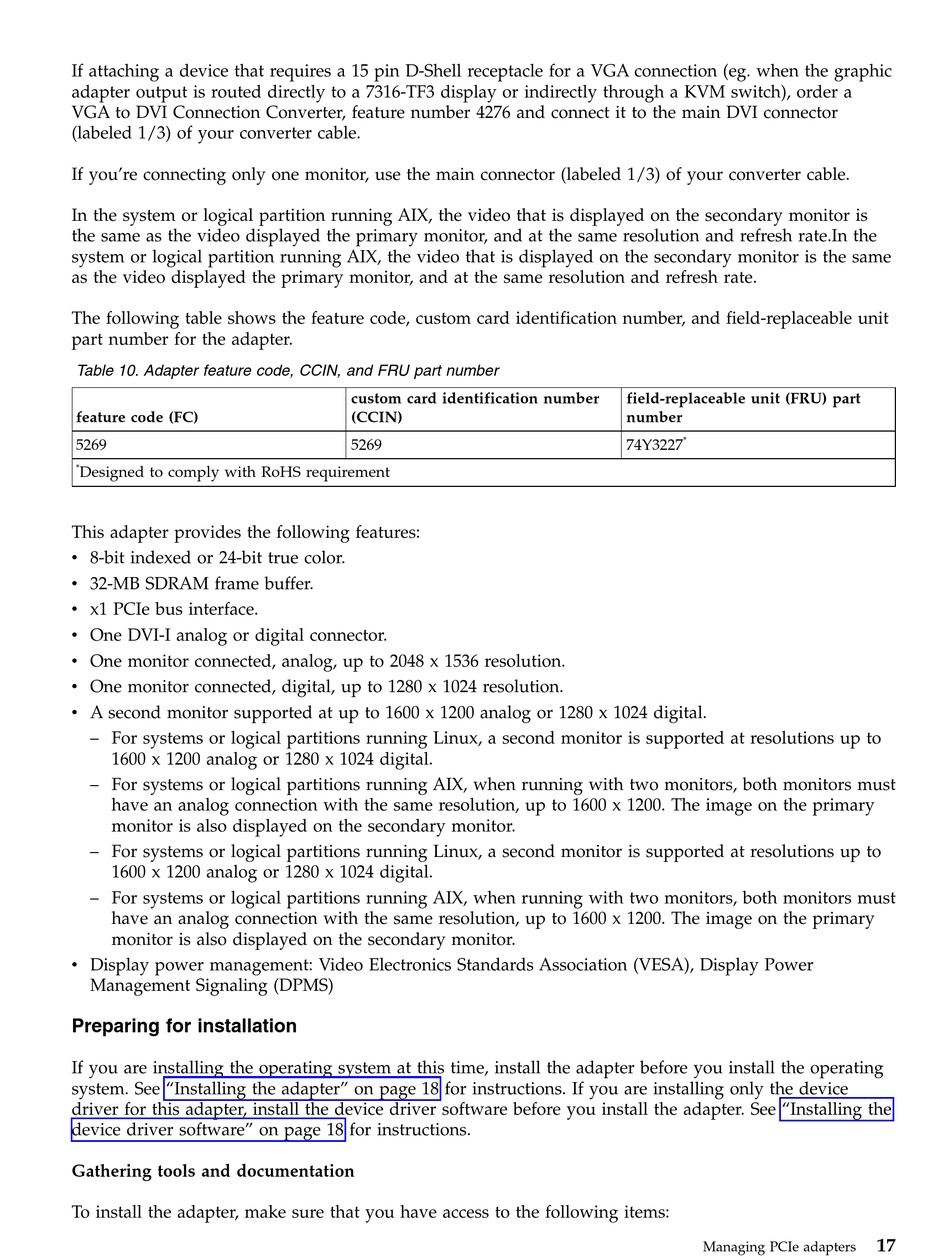

If attaching a device that requires a 15 pin D-Shell receptacle for a VGA connection (eg. when the graphic
adapter output is routed directly to a 7316-TF3 display or indirectly through a KVM switch), order a
VGA to DVI Connection Converter, feature number 4276 and connect it to the main DVI connector
(labeled 1/3) of your converter cable.
If you're connecting only one monitor, use the main connector (labeled 1/3) of your converter cable.
In the system or logical partition running AIX, the video that is displayed on the secondary monitor is
the same as the video displayed the primary monitor, and at the same resolution and refresh rate.In the
system or logical partition running AIX, the video that is displayed on the secondary monitor is the same
as the video displayed the primary monitor, and at the same resolution and refresh rate.
The following table shows the feature code, custom card identification number, and field-replaceable unit
part number for the adapter.
Table 10. Adapter feature code, CCIN, and FRU part number
feature code (FC)
5269
*
Designed to comply with RoHS requirement
This adapter provides the following features:
v 8-bit indexed or 24-bit true color.
v 32-MB SDRAM frame buffer.
v x1 PCIe bus interface.
v One DVI-I analog or digital connector.
v One monitor connected, analog, up to 2048 x 1536 resolution.
v One monitor connected, digital, up to 1280 x 1024 resolution.
v A second monitor supported at up to 1600 x 1200 analog or 1280 x 1024 digital.
– For systems or logical partitions running Linux, a second monitor is supported at resolutions up to
1600 x 1200 analog or 1280 x 1024 digital.
– For systems or logical partitions running AIX, when running with two monitors, both monitors must
have an analog connection with the same resolution, up to 1600 x 1200. The image on the primary
monitor is also displayed on the secondary monitor.
– For systems or logical partitions running Linux, a second monitor is supported at resolutions up to
1600 x 1200 analog or 1280 x 1024 digital.
– For systems or logical partitions running AIX, when running with two monitors, both monitors must
have an analog connection with the same resolution, up to 1600 x 1200. The image on the primary
monitor is also displayed on the secondary monitor.
v Display power management: Video Electronics Standards Association (VESA), Display Power
Management Signaling (DPMS)
Preparing for installation
If you are installing the operating system at this time, install the adapter before you install the operating
system. See "Installing the adapter" on page 18 for instructions. If you are installing only the device
driver for this adapter, install the device driver software before you install the adapter. See "Installing the
device driver software" on page 18 for instructions.
Gathering tools and documentation
To install the adapter, make sure that you have access to the following items:
custom card identification number
(CCIN)
5269
field-replaceable unit (FRU) part
number
*
74Y3227
Managing PCIe adapters
17
