cannot be mixed with SAS disk on the same adapter. The adapter does not have write cache. Figure 65
shows the PCIe3 LP 4 x8 SAS Port Adapter.
A maximum of four DVD or tape drives can be attached per adapter by using four AE1 cables (FC
ECBY). A maximum of eight DVD or tape drives can be attached by using four YE1 cables (ECBZ).
Externally attached devices are designed to run at a maximum data rate of 6 Gbps for SAS tape devices.
Important: For more information, see the SAS RAID controllers for AIX, SAS RAID controllers for IBM i,
or SAS RAID controllers for Linux topics for more information and important considerations for
multi-initiator and high availability or dual storage IOA configurations.

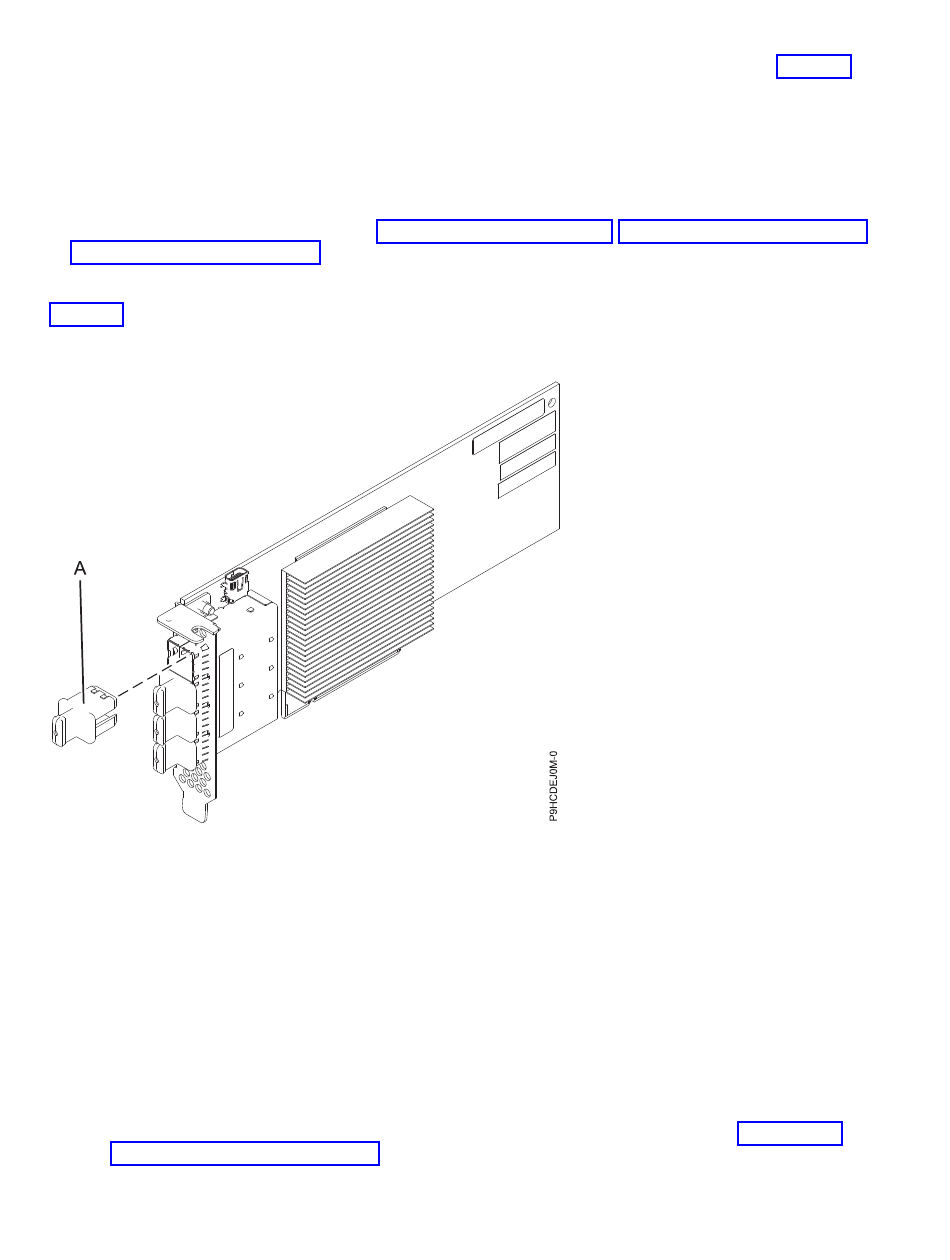

Figure 65 shows the adapter. The connector plug (A) is installed in an empty port and prevents damage
to that port whenever a cable for the adjacent port connectors is plugged-in or removed.
Figure 65. PCIe3 LP 4 x8 SAS Port Adapter
Specifications
Item
Description
Adapter FRU number
000MH910 (Designed to comply with RoHS requirement)
Connector plug part number
00FW784 (The connector plug is installed in an empty port and prevents damage to that port
whenever a cable for the adjacent port connectors is plugged-in or removed)
I/O bus architecture
PCIe 3.0
Compatible with PCIe 2.0 or PCIe 1.0 slots
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
144
Managing PCIe adapters
