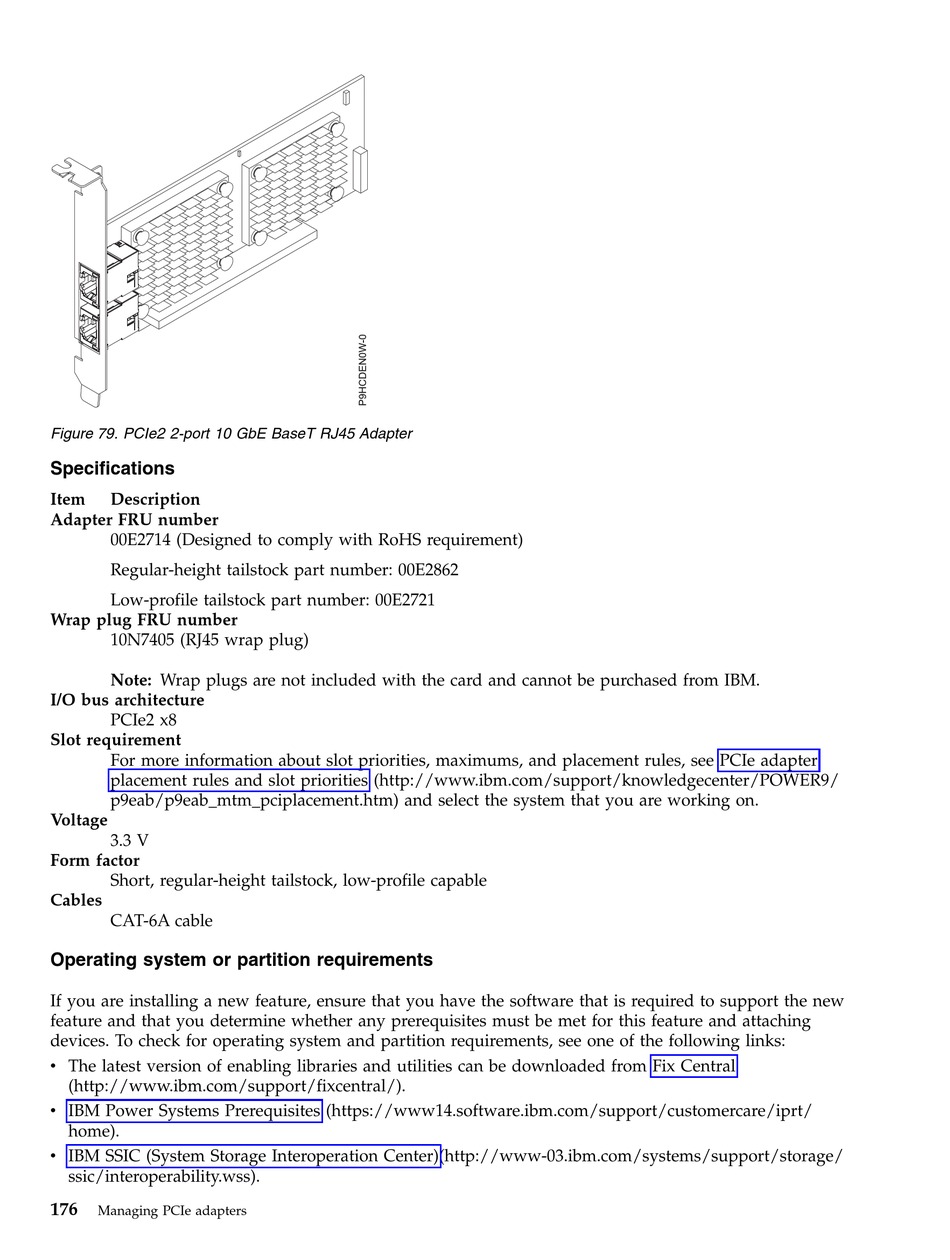

Figure 79. PCIe2 2-port 10 GbE BaseT RJ45 Adapter
Specifications
Item
Description
Adapter FRU number
00E2714 (Designed to comply with RoHS requirement)
Regular-height tailstock part number: 00E2862
Low-profile tailstock part number: 00E2721
Wrap plug FRU number
10N7405 (RJ45 wrap plug)
Note: Wrap plugs are not included with the card and cannot be purchased from IBM.
I/O bus architecture
PCIe2 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, regular-height tailstock, low-profile capable
Cables
CAT-6A cable
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether any prerequisites must be met for this feature and attaching
devices. To check for operating system and partition requirements, see one of the following links:
v The latest version of enabling libraries and utilities can be downloaded from Fix Central
(http://www.ibm.com/support/fixcentral/).
v IBM Power Systems Prerequisites (https://www14.software.ibm.com/support/customercare/iprt/
home).
v IBM SSIC (System Storage Interoperation Center)(http://www-03.ibm.com/systems/support/storage/
ssic/interoperability.wss).
