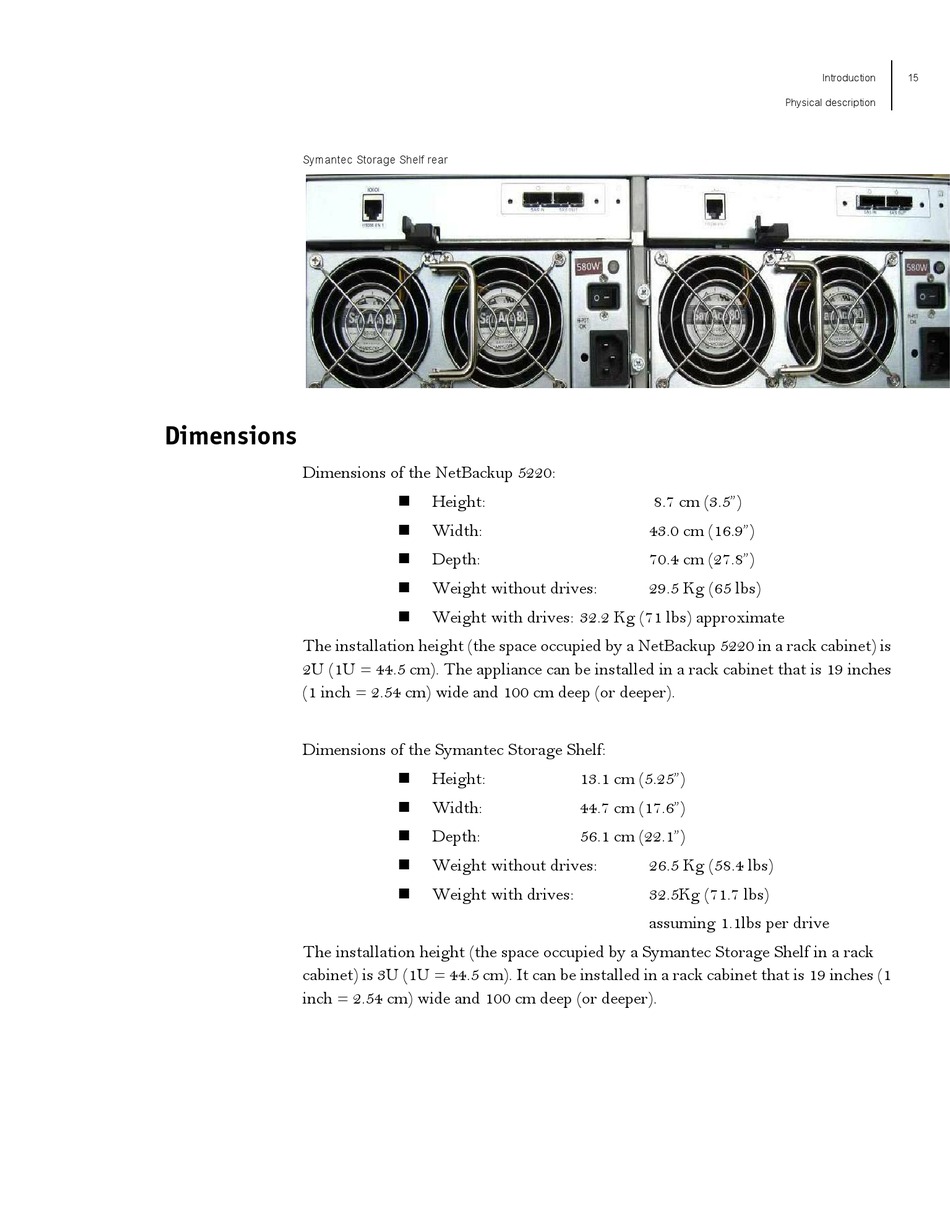

Symantec Storage Shelf rear

Dimensions

Dimensions of the NetBackup 5220:
The installation height (the space occupied by a NetBackup 5220 in a rack cabinet) is
2U (1U = 44.5 cm). The appliance can be installed in a rack cabinet that is 19 inches
(1 inch = 2.54 cm) wide and 100 cm deep (or deeper).
Dimensions of the Symantec Storage Shelf:
The installation height (the space occupied by a Symantec Storage Shelf in a rack
cabinet) is 3U (1U = 44.5 cm). It can be installed in a rack cabinet that is 19 inches (1
inch = 2.54 cm) wide and 100 cm deep (or deeper).
 Height:
Width:

Depth:

 Weight without drives:
 Weight with drives: 32.2 Kg (71 lbs) approximate
 Height:
Width:

Depth:

 Weight without drives:
 Weight with drives:
8.7 cm (3.5")
43.0 cm (16.9")
70.4 cm (27.8")
29.5 Kg (65 lbs)
13.1 cm (5.25")
44.7 cm (17.6")
56.1 cm (22.1")
26.5 Kg (58.4 lbs)
32.5Kg (71.7 lbs)
assuming 1.1lbs per drive
