Connecting the Symantec Storage Shelf power cables

Connecting the Symantec Storage Shelf power cables
The NetBackup 5220 has two power modules, one placed next to the other and
accessible on the rear panel of the device. Each module requires a separate AC power
cable and main AC power outlet.
Procedure
1.
2.
3.

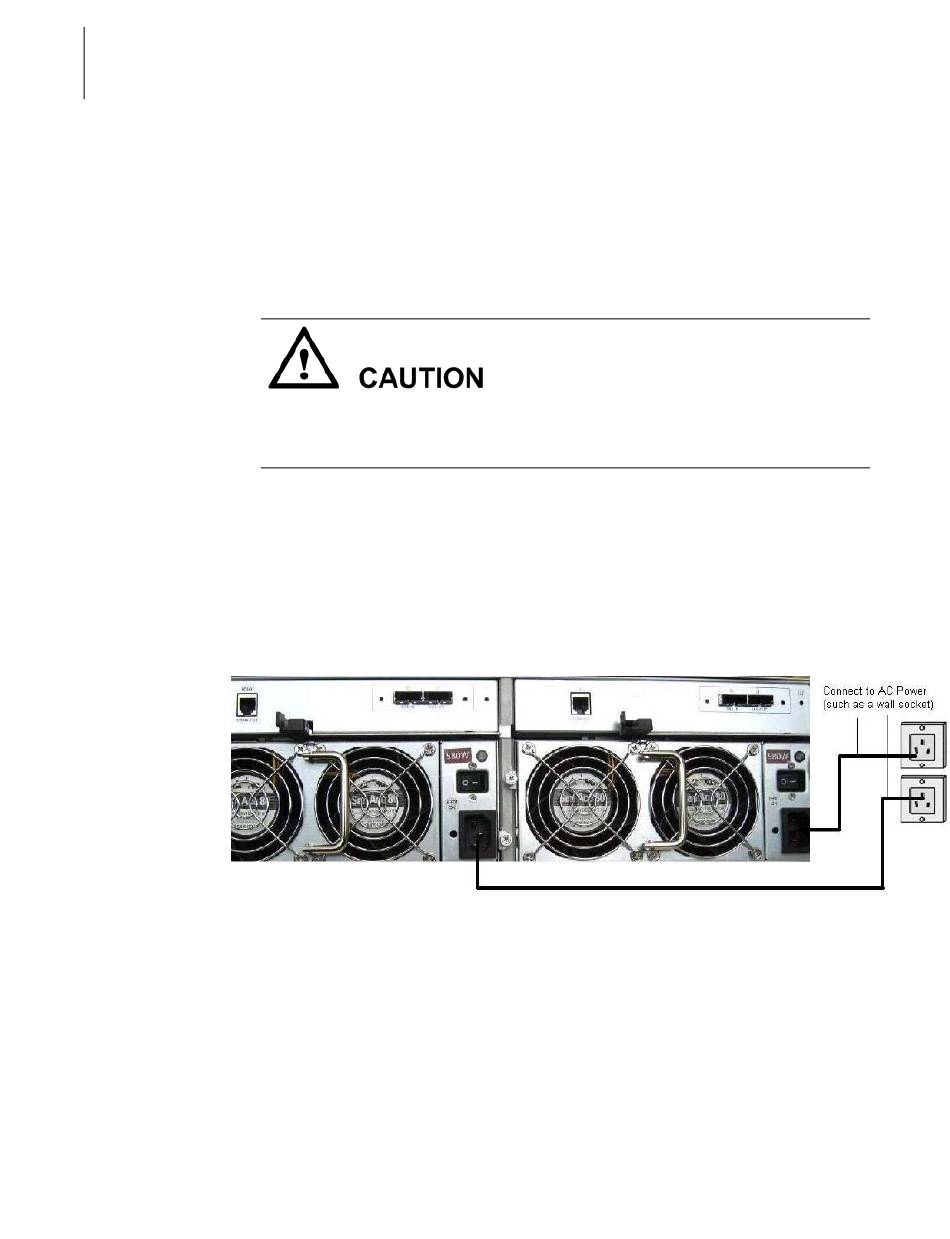

Connecting AC power cables of the Symantec Storage Shelf (rear view)

4.
When connecting a power cable, wear an ESD-preventive wrist strap to prevent
injuries.
Plug one end of a power cable to a power module of the Symantec Storage Shelf.
Plug the other end of the power cable into an AC power socket.
Connect the second power cable to the second power module and to a second power
socket.
Confirm that both AC power cables are connected and that any grounds are
correctly placed.
