Connecting the NetBackup 5220 power cables

The NetBackup 5220 has two power modules, one stacked upon the other and accessible
on the rear panel of the device. Each module requires a separate AC power cable and
main AC power outlet.
Procedure
1.
2.
3.

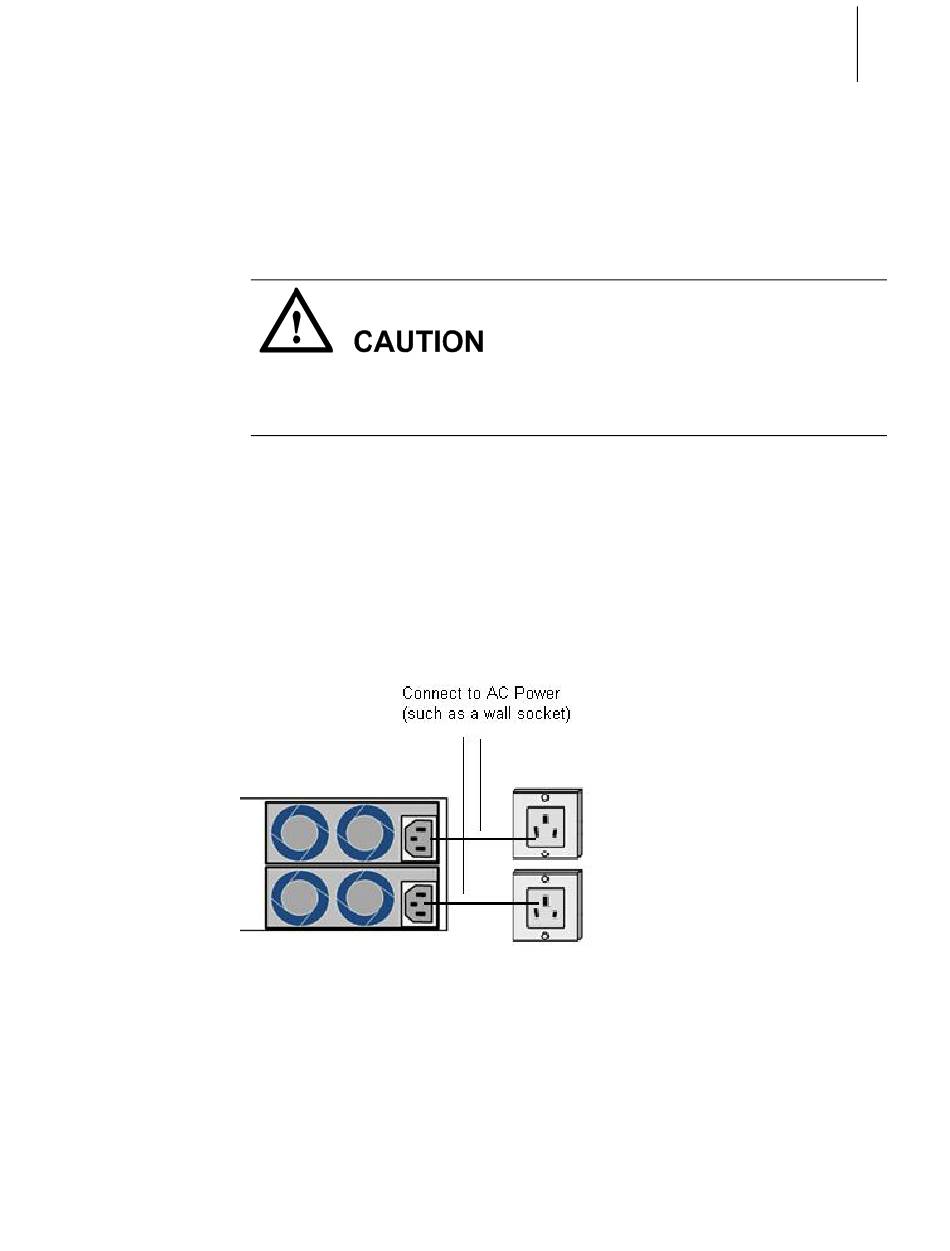

Connecting AC power cables of the NetBackup 5220 (rear view)

4.
When connecting a power cable, wear an ESD-preventive wrist strap to prevent
injuries.
Plug one end of a power cable to a power module of the NetBackup 5220.
Plug the other end of the power cable into an AC power socket.
Connect the second power cable to the second power module and to a second power
socket.
Confirm that both AC power cables are connected and that any grounds are
correctly placed.
Chapter 9
Cables
Connecting the NetBackup 5220 power cab
69
