56
Chapter 7
Hardware installation
Installing the RAID card and accessories
27. Turn the riser card assembly upside down. Now, slot 5 is on the top of the riser

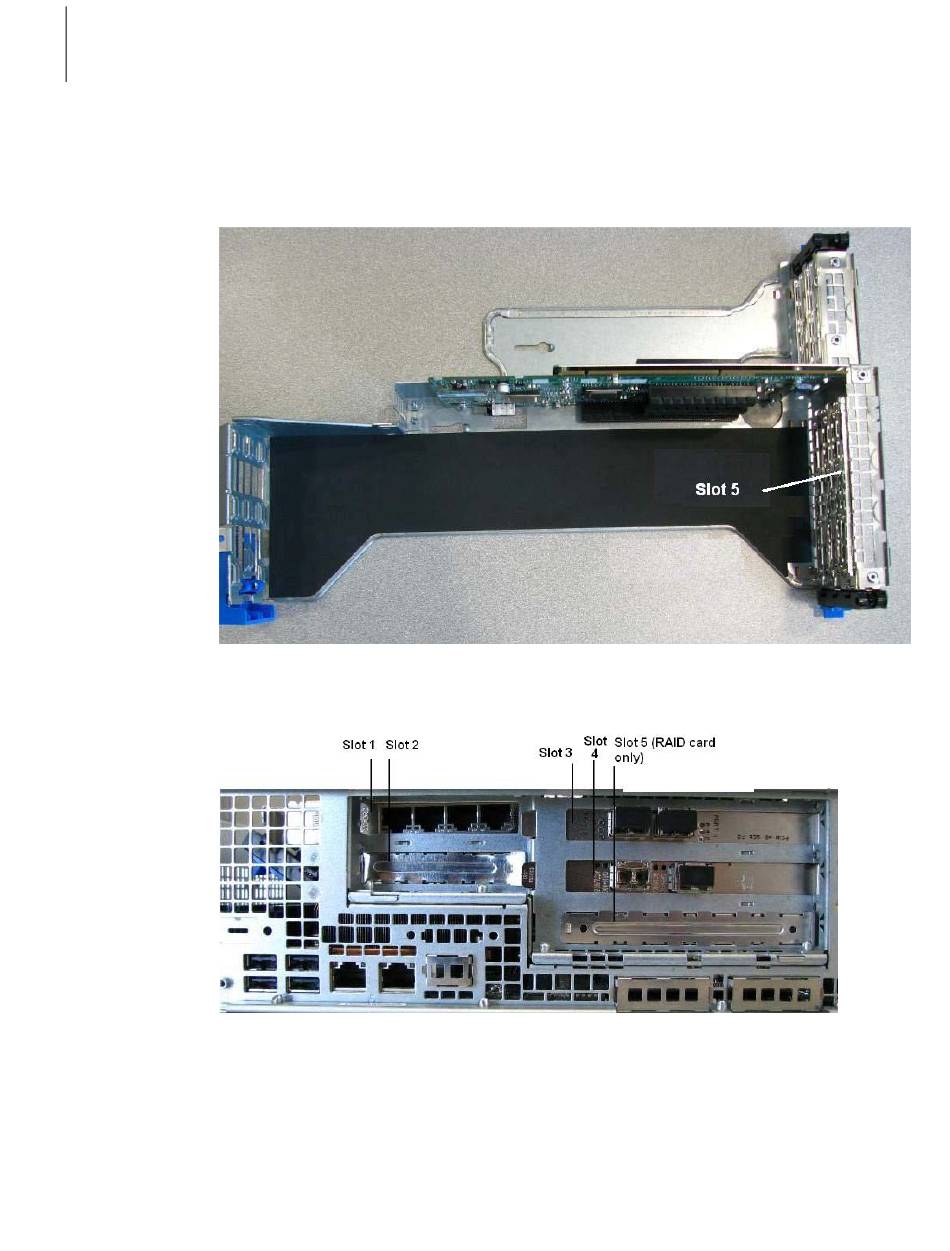

Riser card assembly, upside down
28. Install the RAID card into Slot 5 of the riser card assembly.
Rear of riser card assembly with slots 1-5
29. Replace the riser card assembly into the rear of the NetBackup 5220.
30. Replace the chassis cover at top rear of the NetBackup 5220 enclosure.
31. Slide the cover from the rear of the device towards the front.
card assembly.
