24 Introduction
Physical description

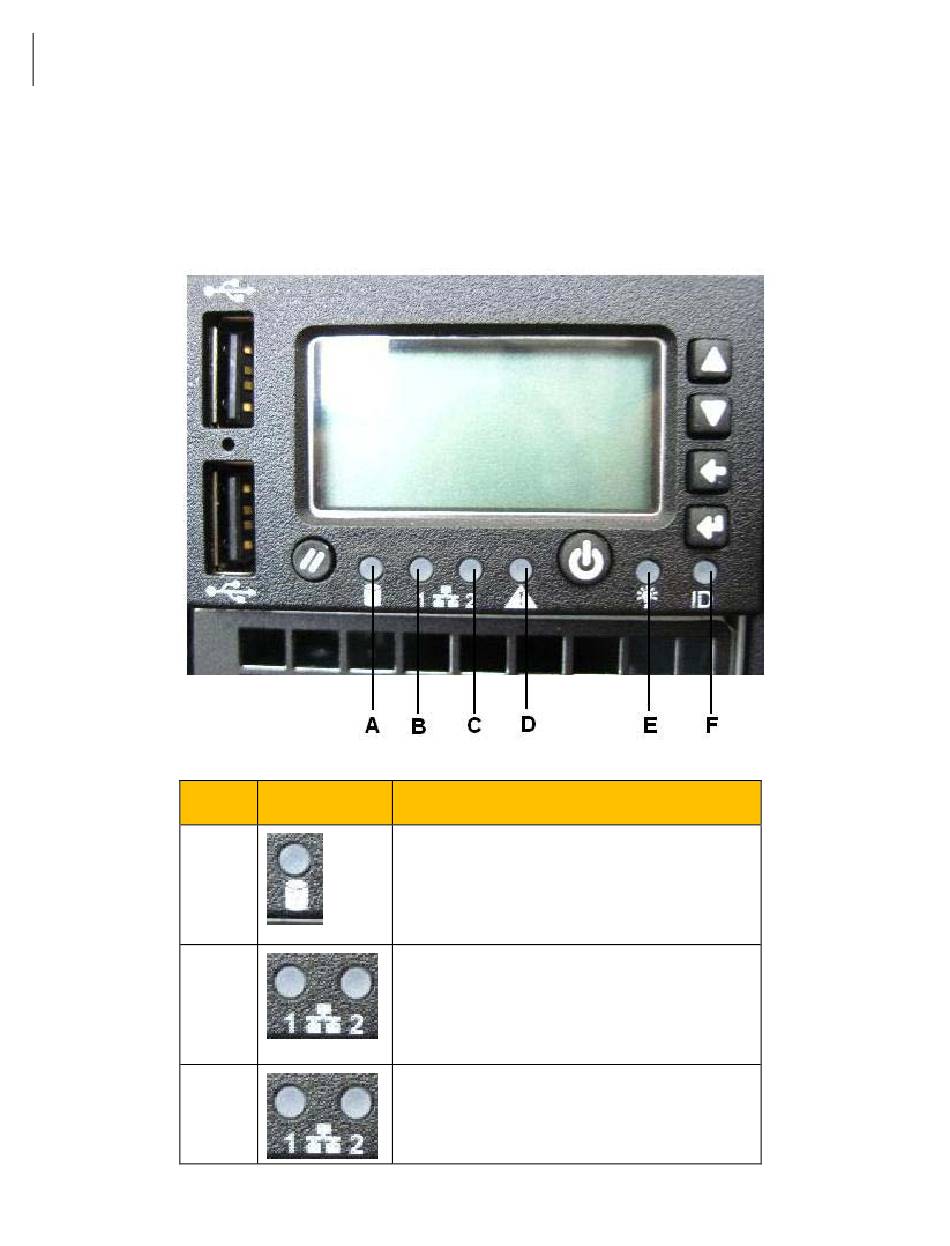

NetBackup 5220 control panel

This section provides a physical view and technical specifications for the control
panel in the upper right-hand corner of front panel of the NetBackup 5220.

NetBackup 5220 control panel

Letter
A
B
C
Image LED Function
Hard Disk Activity
Random flashing green light indicates hard disk drive
activity (SAS).
No light indicates no hard disk drive activity.
NIC 2 Activity
Continuous green light indicates a link between the
system and the network to which it is connected.
Flashing green light indicates network activity.
NIC 1 Activity
Continuous green light indicates a link between the
system and the network to which it is connected.
