Appliance dimensions and weight

Symantec Storage Shelf description

NetBackup 5230 Appliance configuration E components (continued)
Table 1-3
Number Component
3 SAS RAID ports
See " Appliance rear panel"
The 2U appliance has the following parameters:
3.44 inches (87.38 mm) high
■
16.93 inches (430 mm) wide
■
27.75 inches (704.8 mm) deep
■
52 pounds (23.58 kg)
■
See "Symantec Storage Shelf dimensions and weight"
The NetBackup 52xx appliance can be ordered with 0, 1, 2, 3, or 4 storage shelves.
The appliance provides 4 TB of storage capacity without any storage shelves.

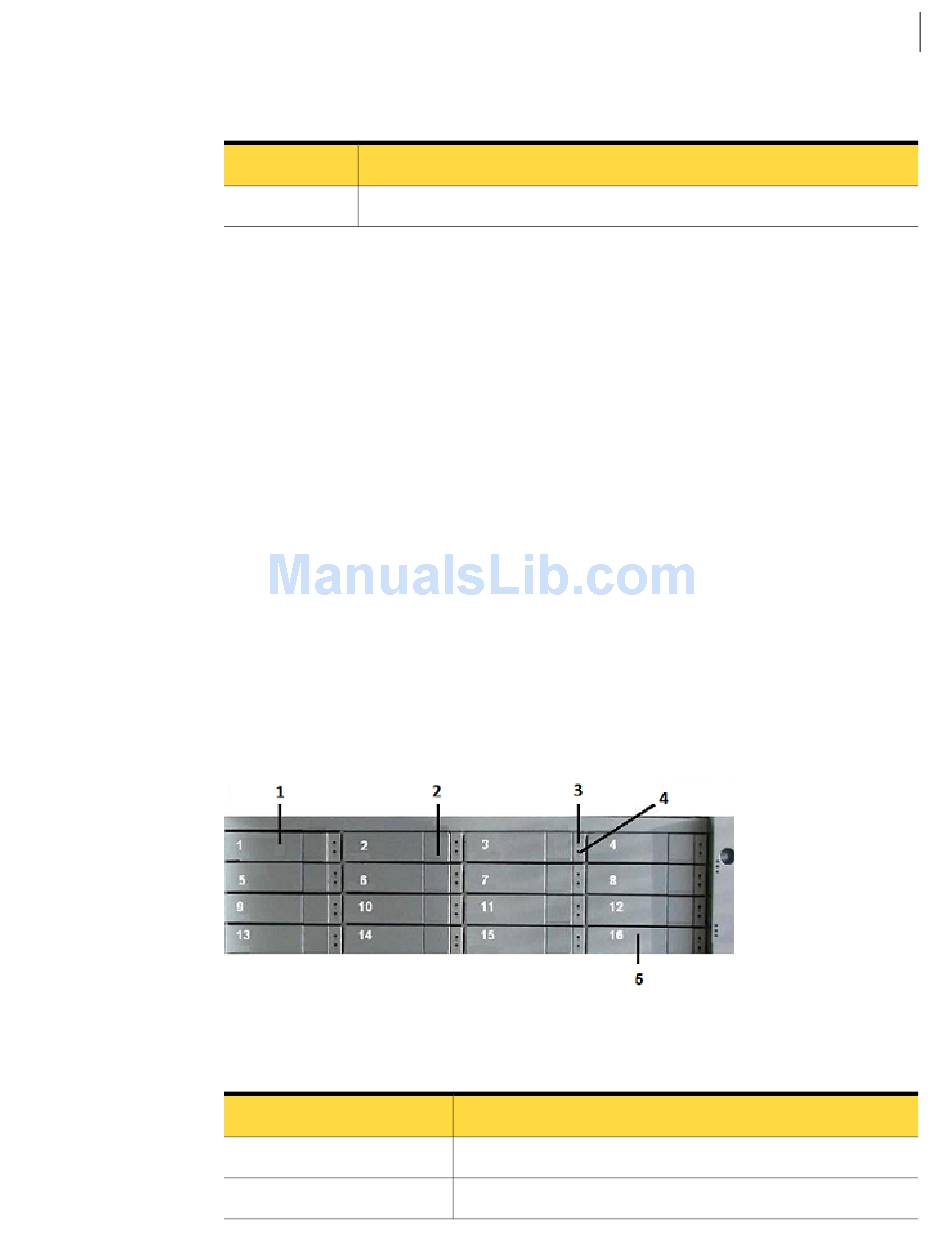

The front and the rear panels of the storage shelf are shown in the following images.
The following table describes the components of the front panel.
Front panel components
Table 1-4
Number
1
2
on page 11.
Description
Disk drive module #1 of 16
Disk module release button
Product overview
Appliance dimensions and weight
on page 15.
13
