On/Off switch
The On/Off switch of the NetBackup 5220 is located on the control panel on the
front of the device, top right-hand side.

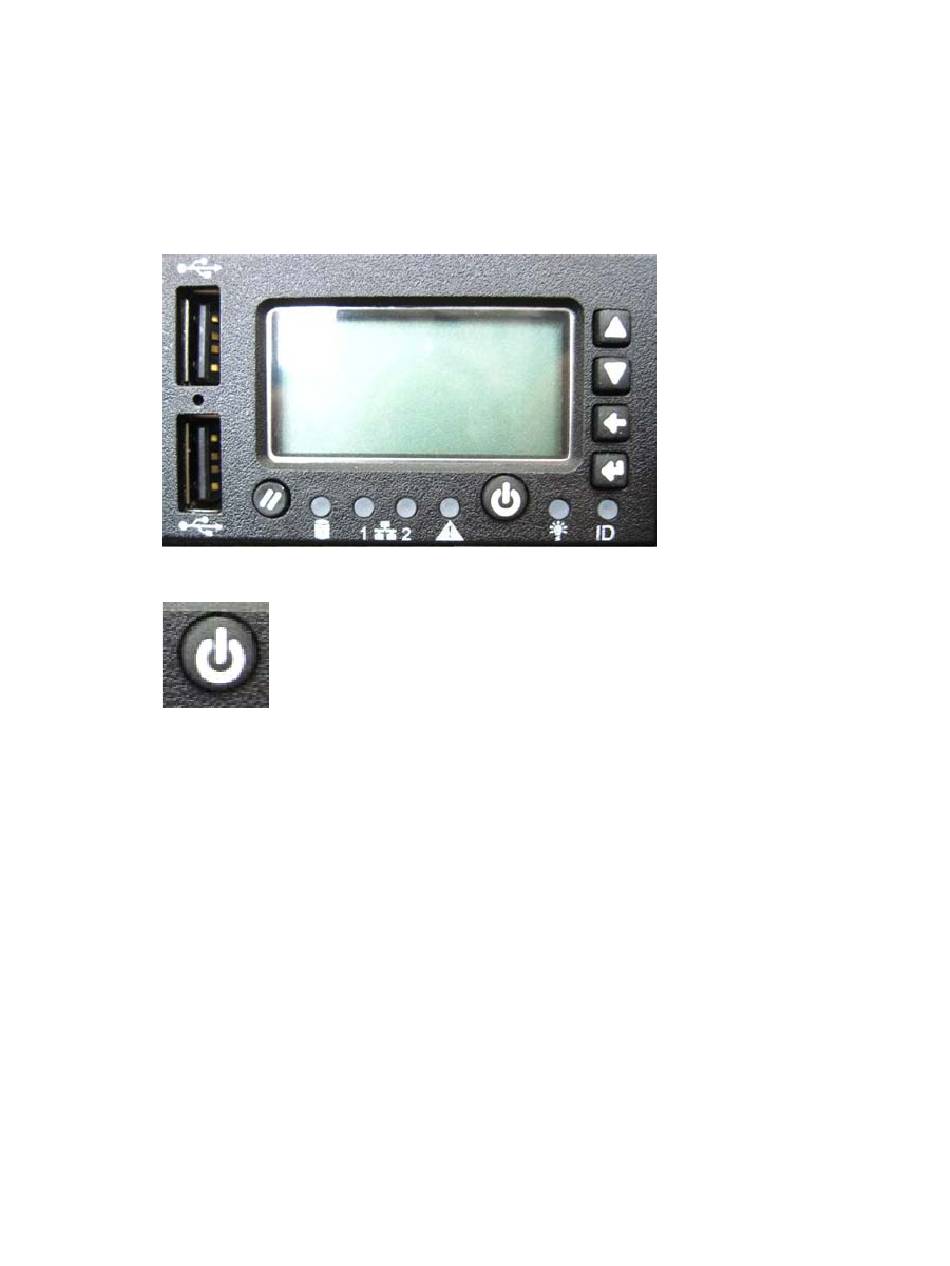

NetBackup 5220 control panel and On/Off switch
NetBackup 5220 On/Off switch
3.
4.
5.
6.
Powering off the NetBackup 5220
This section describes how to power off the NetBackup 5220.
Check the status of each indicator LED on the front panel of the NetBackup
5220 to determine whether the NetBackup 5220 is operating properly.
Connect a network cable between the NIC1 private network Ethernet port on
the rear of the NetBackup 5220 and the network port of your Windows PC.
Navigate to Local Area Connection Properties, select Internet Protocol
(TCP/IP), and click Properties.
On the Internet Protocol (TCP/IP) Properties dialog box, Alternate
Configuration tab, enter the following information:
IP address 192.168.1.1
Subnetmask 255.255.255.0
The default login and password are admin and P@ssw0rd, respectively.
