Introduction
Physical description
Rear panel connection between devices

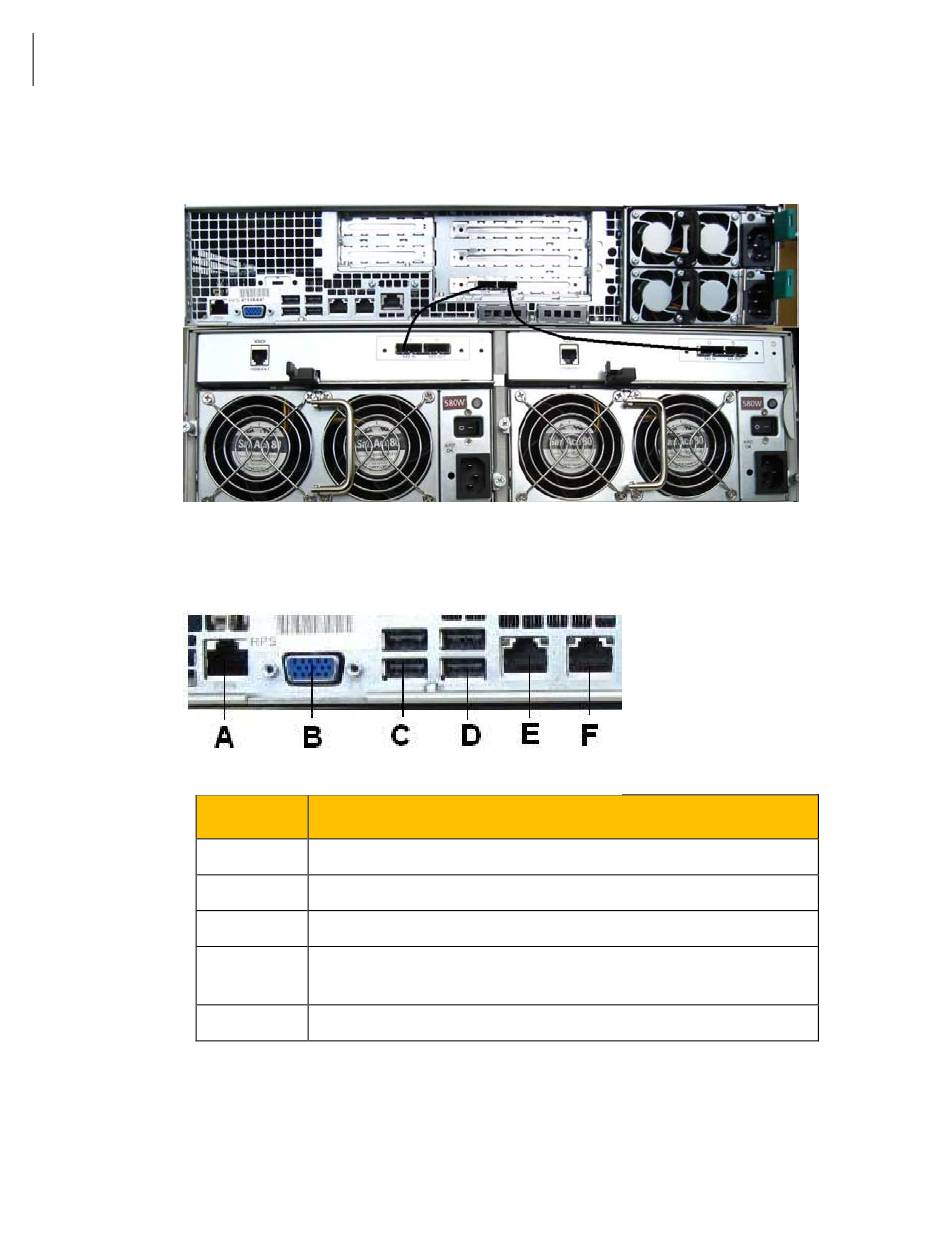

NetBackup 5220 and Symantec Storage Shelf connections
NetBackup rear panel ports
NetBackup 5220 rear panel ports
Letter
Description
A
Serial Port (RJ-45)
B
Video Port
C and D
USB Ports
E
Service Ethernet port (NIC 2), used for transferring data in or out of the
device
F
Private Ethernet port (NIC 1), used for hardware management
