54
Chapter 7
Hardware installation
Installing the RAID card and accessories

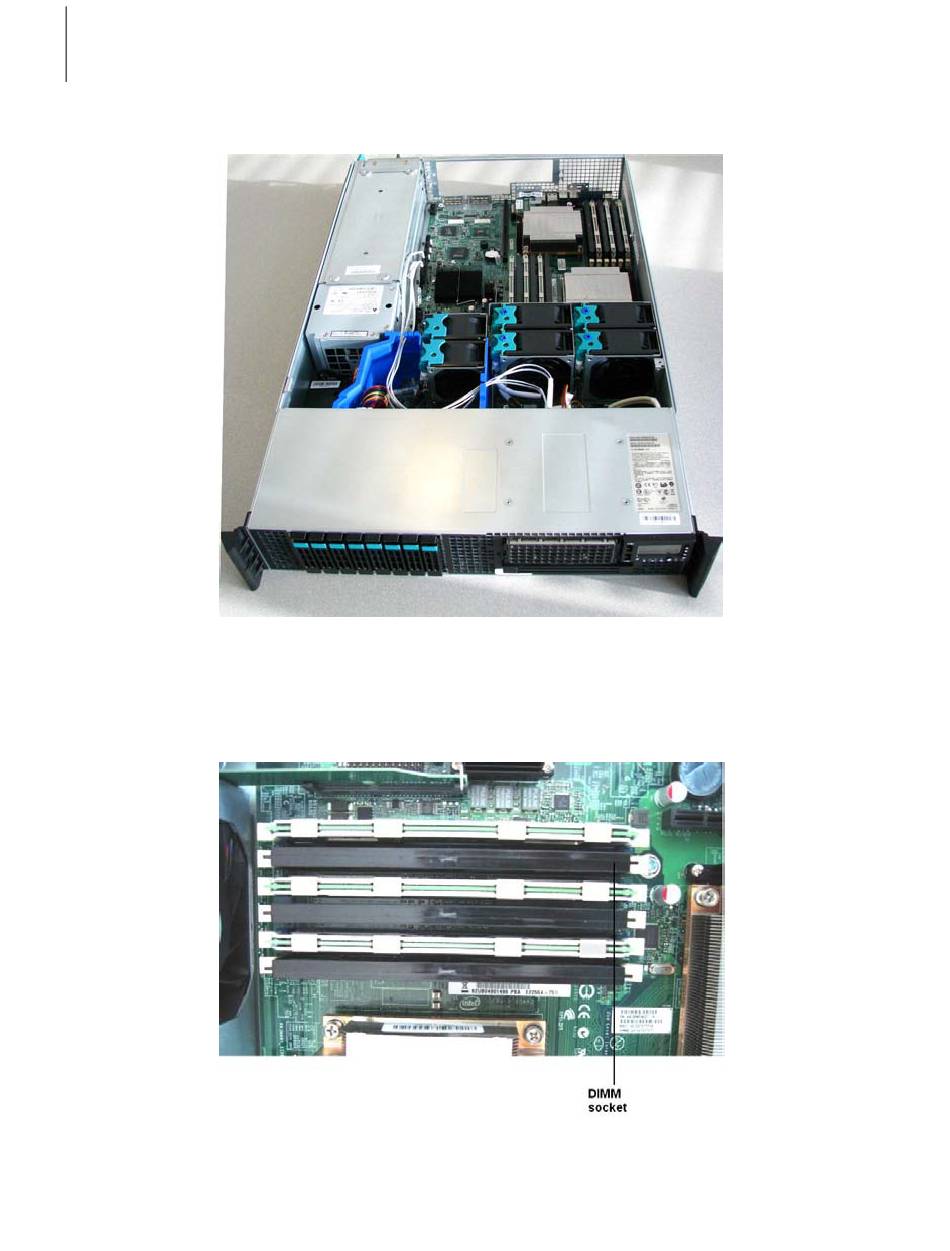

Chassis with riser assembly and air duct removed
12. Loosen the clips on both ends of each of the six empty DIMM sockets.
13. Remove any plastic spacers from the DIMM sockets.
14. Remove the six 4Gb DIMMs from their packages.
DIMM sockets
