Panels, slots and ports

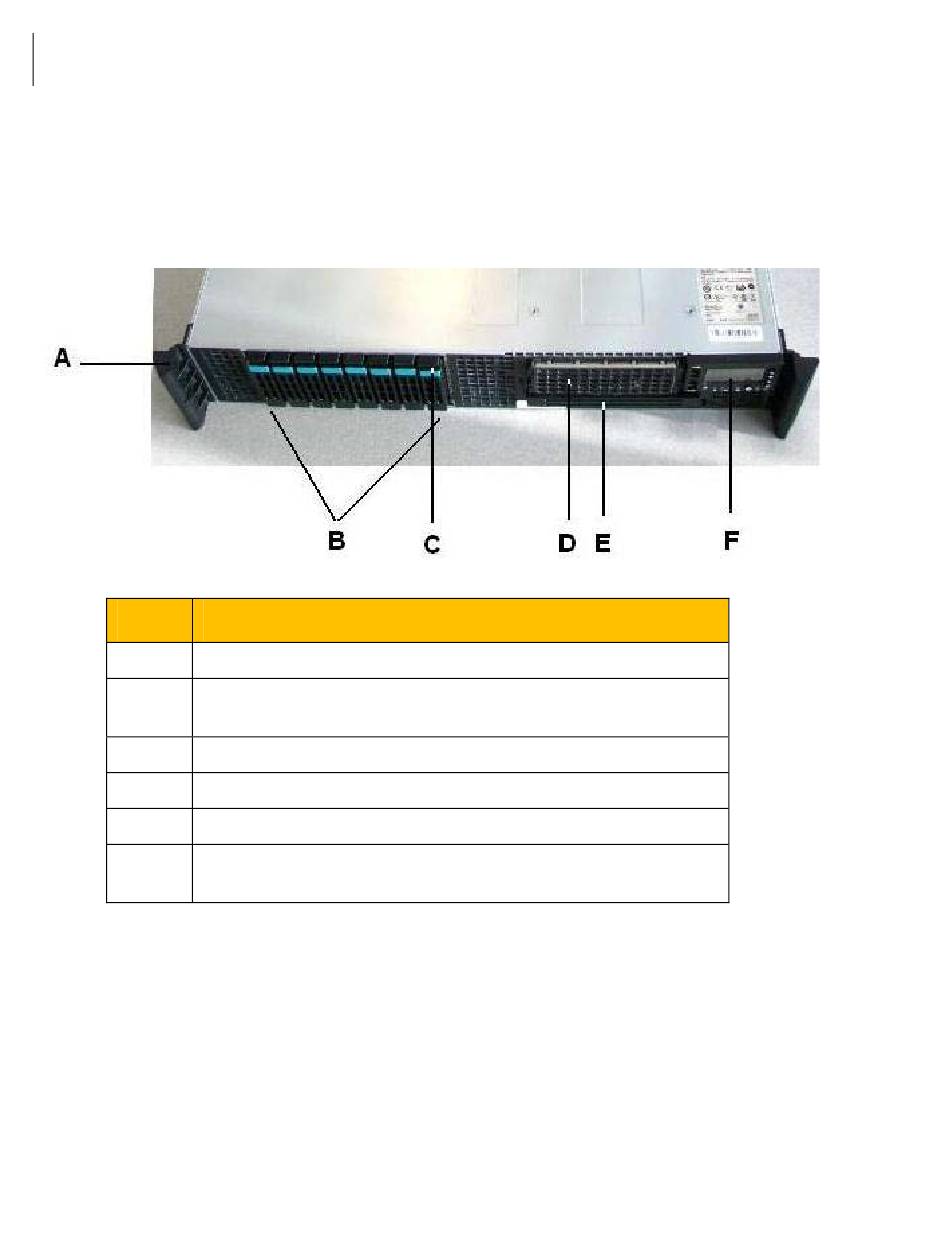

This section describes the front and rear panels, ports, and indicators of the

NetBackup 5220 and Symantec Storage Shelf.

Letter

Description

Rack handle

Disk modules containing one SAS disk drive and one disk carrier each (qty 8,

labeled 0 through 7 from left to right) (hot swappable)

Hot spare disk module, slot #7

Drive tray containing two SATA hard disk drives (not hot swappable)

Slimline drive bay (functionality not available with NetBackup 5220)

Control panel with system LED indicators, on/off button, scroll mechanism

to obtain system messages
