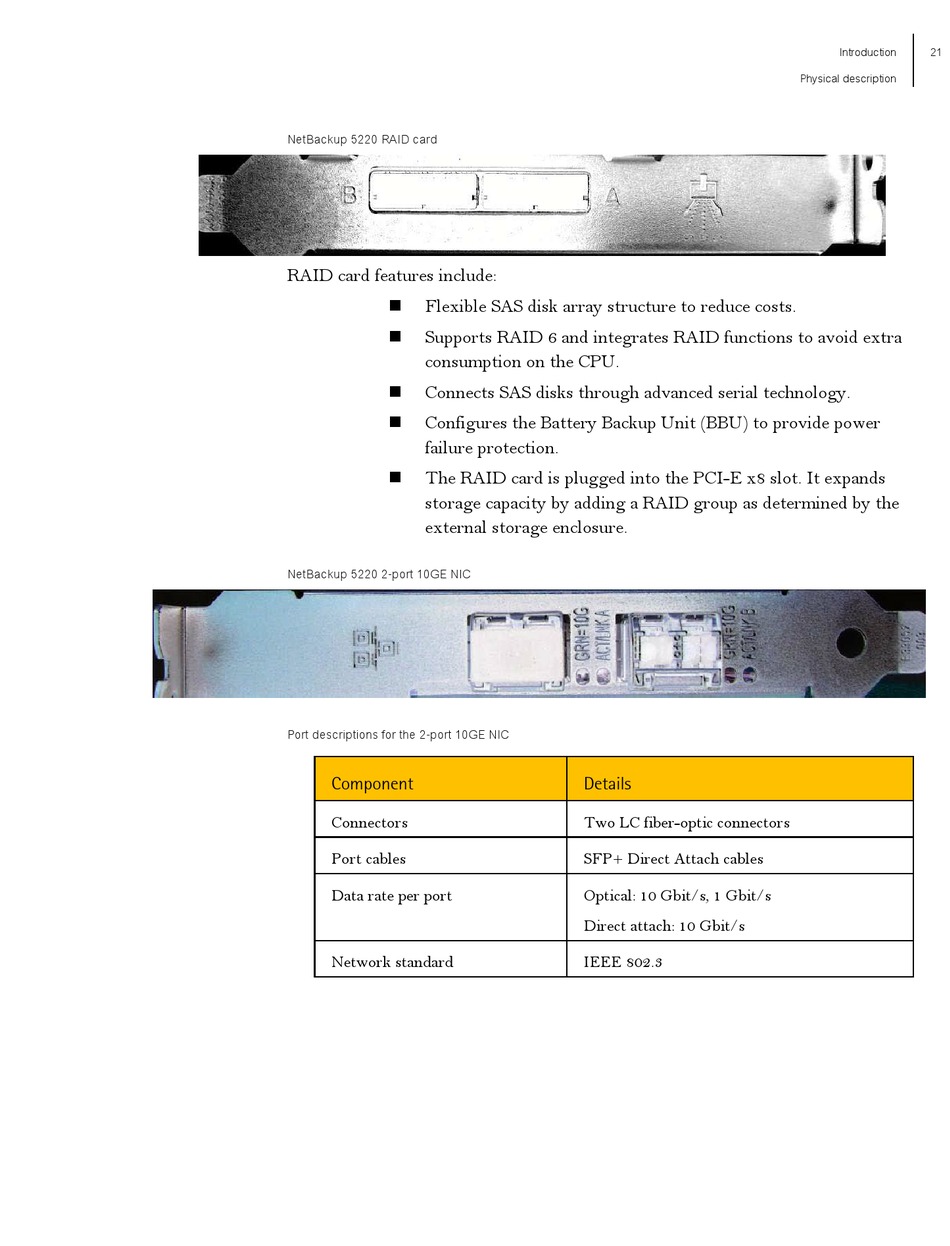

NetBackup 5220 RAID card

RAID card features include:
 Flexible SAS disk array structure to reduce costs.
 Supports RAID 6 and integrates RAID functions to avoid extra
consumption on the CPU.
Connects SAS disks through advanced serial technology.

 Configures the Battery Backup Unit (BBU) to provide power
failure protection.
The RAID card is plugged into the PCI-E x8 slot. It expands

storage capacity by adding a RAID group as determined by the
external storage enclosure.

NetBackup 5220 2-port 10GE NIC

Port descriptions for the 2-port 10GE NIC

Component
Connectors
Port cables
Data rate per port
Network standard
Details
Two LC fiber-optic connectors
SFP+ Direct Attach cables
Optical: 10 Gbit/s, 1 Gbit/s
Direct attach: 10 Gbit/s
IEEE 802.3
Introduction 21
Physical description
