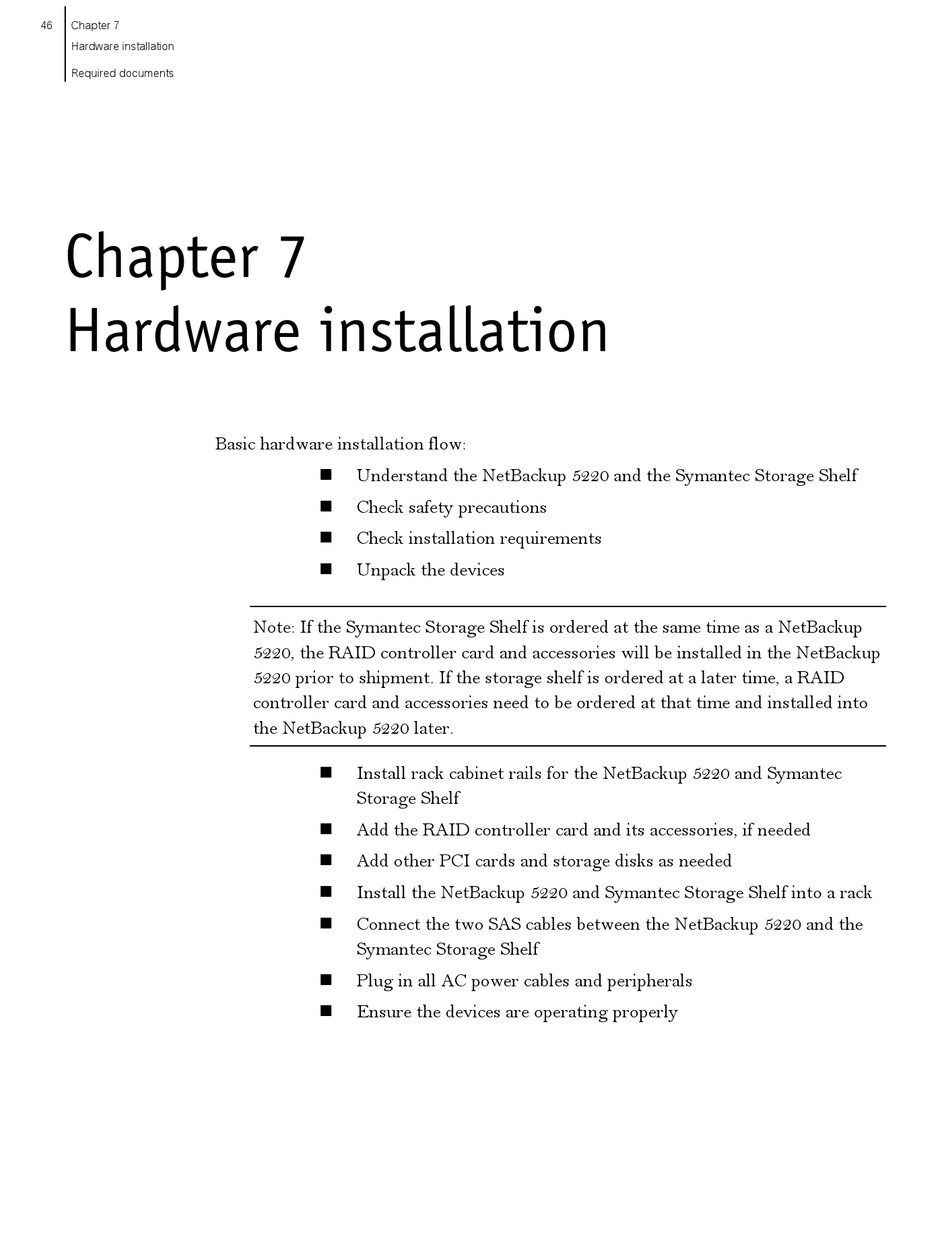

Chapter 7 Hardware Installation; Chapter 7 Chapter 7 Hardware Installation - Symantec NetBackup 5220 Hardware Installation Manual

46 Chapter 7
Hardware installation
Required documents
Chapter 7
Hardware installation
Basic hardware installation flow:
Understand the NetBackup 5220 and the Symantec Storage Shelf

 Check safety precautions
 Check installation requirements
 Unpack the devices
Note: If the Symantec Storage Shelf is ordered at the same time as a NetBackup
5220, the RAID controller card and accessories will be installed in the NetBackup
5220 prior to shipment. If the storage shelf is ordered at a later time, a RAID
controller card and accessories need to be ordered at that time and installed into
the NetBackup 5220 later.
 Install rack cabinet rails for the NetBackup 5220 and Symantec
Storage Shelf
Add the RAID controller card and its accessories, if needed

 Add other PCI cards and storage disks as needed
 Install the NetBackup 5220 and Symantec Storage Shelf into a rack
 Connect the two SAS cables between the NetBackup 5220 and the
Symantec Storage Shelf
 Plug in all AC power cables and peripherals
 Ensure the devices are operating properly
